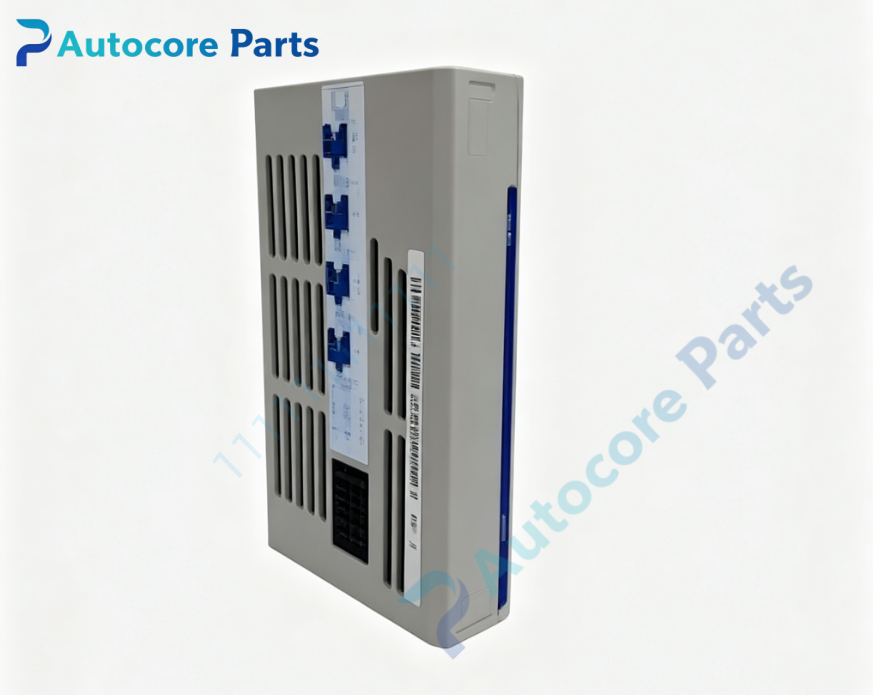

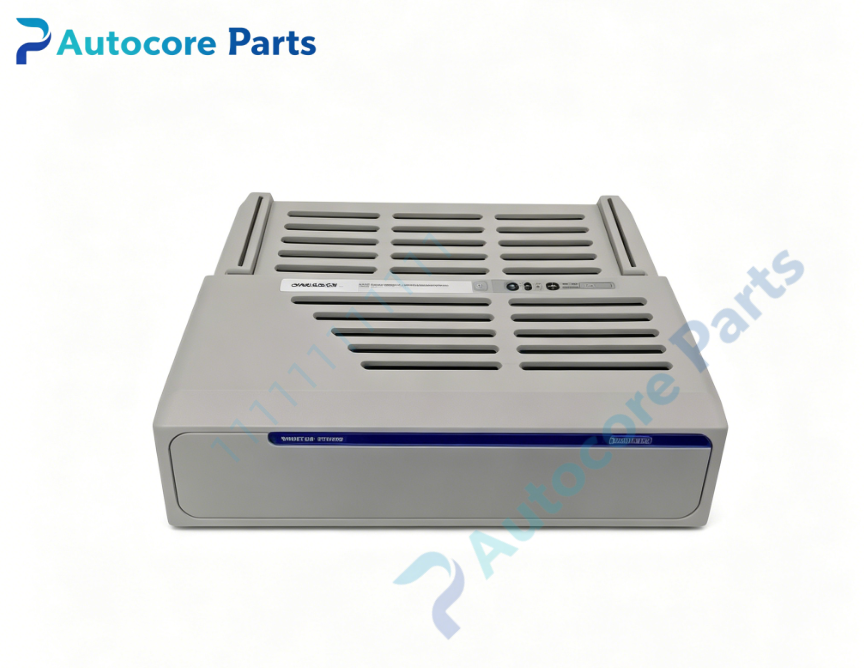

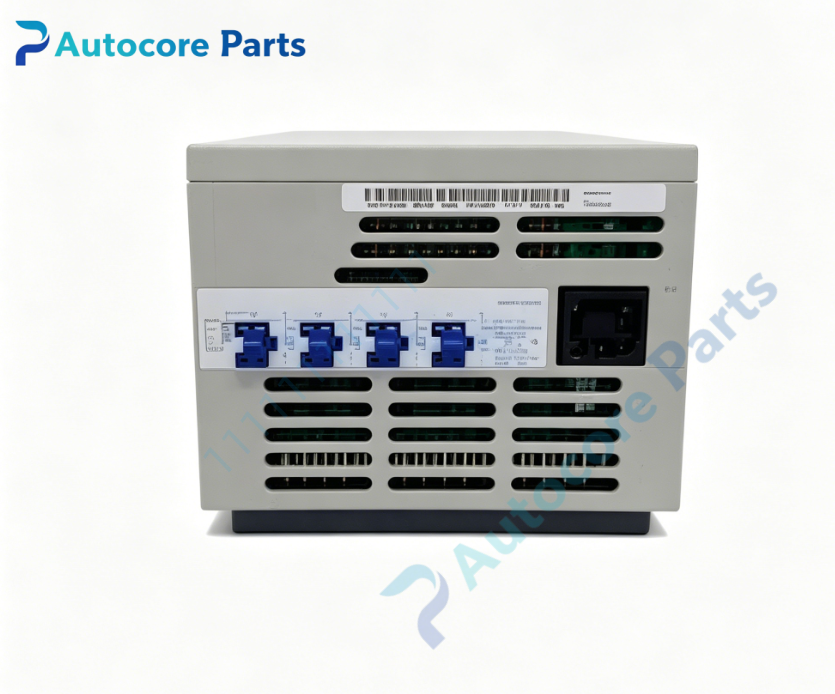

Emerson 1C31113G05 Ovation 8‑Channel ±5VDC Analog Input Module

Technical Specifications

Model：1C31113G05

Brand：Emerson

Product Type：8‑Channel ±5VDC Analog Input Module

Applicable System：Emerson Ovation distributed control system thermal power plant DCS control cabinet

Channel quantity：8 analog differential input channels

Signal type：±5VDC analog voltage signal

Resolution：13‑bit A/D conversion

Accuracy：±0.1%FS typical measurement accuracy

Isolation：1000VAC galvanic isolation between field side and system side

Sampling rate：10 samples per second

Installation：Plug‑in installation for matched Ovation I/O base

Common Revision：G05 hardware revised version

Status Indicator：On‑board LED for power status channel active channel fault indication

Built‑in Function：Field ±5VDC analog signal acquisition analog‑to‑digital conversion digital signal filtering processing channel fault diagnosis over‑voltage protection surge interference suppression support module hot‑swap upload process data to Ovation controller

Working Temperature：0℃ ~ +60℃

Storage Temperature：‑40℃ ~ +85℃

Protection Class：IP20

Weight：0.68kg

Product Brief:

1C31113G05 is Emerson Ovation 8‑channel analog input electronic module G05 hardware revision of 1C31113 series designed for ±5VDC voltage transmitter signal acquisition

It is plugged onto matched I/O base unit mainly used for collecting ±5VDC output signals from field standard voltage transmitters and process instruments

It adopts 13‑bit A/D chip to complete analog‑digital conversion 10Hz sampling rate meets thermal‑process measurement requirements transmits processed digital data to Ovation controller via I/O bus

Built‑in digital filtering improves signal stability under complex electromagnetic interference environment

Each input channel is equipped with over‑voltage protection and signal filtering function with independent channel fault diagnosis convenient for locating abnormal field signals

1000VAC isolation is arranged between field‑side loop and system side effectively restraining common‑mode interference and surge impact

The module supports hot‑swap operation can be replaced online without system shutdown for convenient site maintenance

This is EOL discontinued spare part widely used for maintenance and renovation of thermal power plant Ovation DCS system

Please confirm matched I/O base unit before purchase

Strict ESD anti‑static protection shall be followed during installation and replacement
