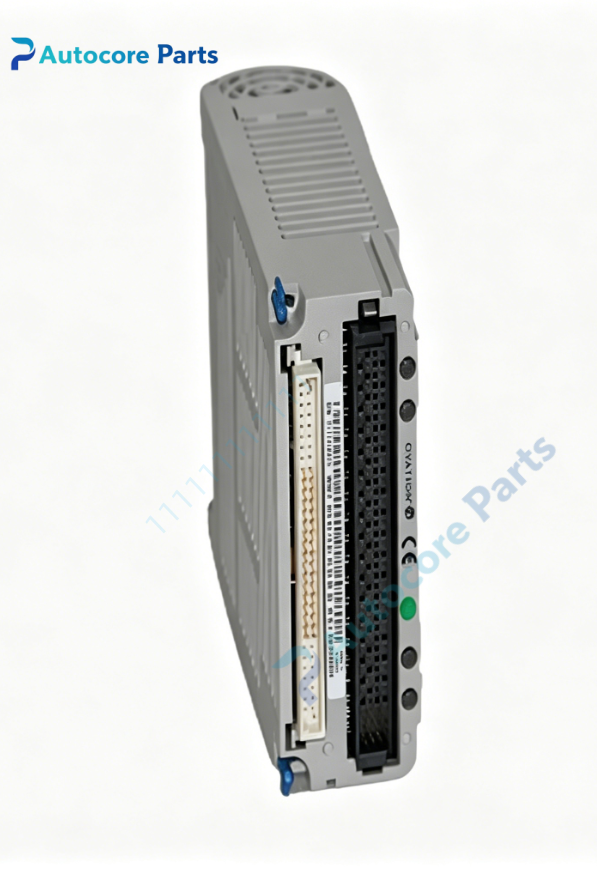

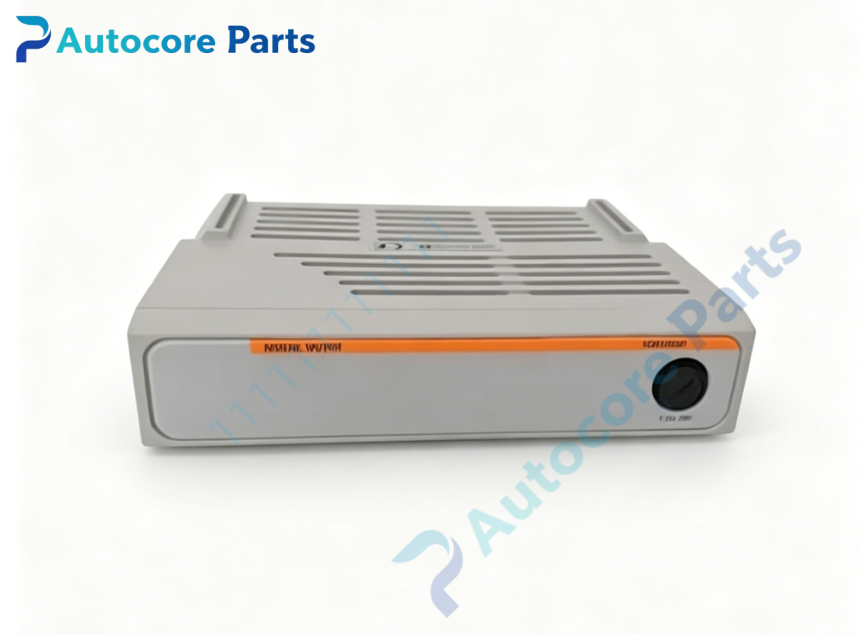

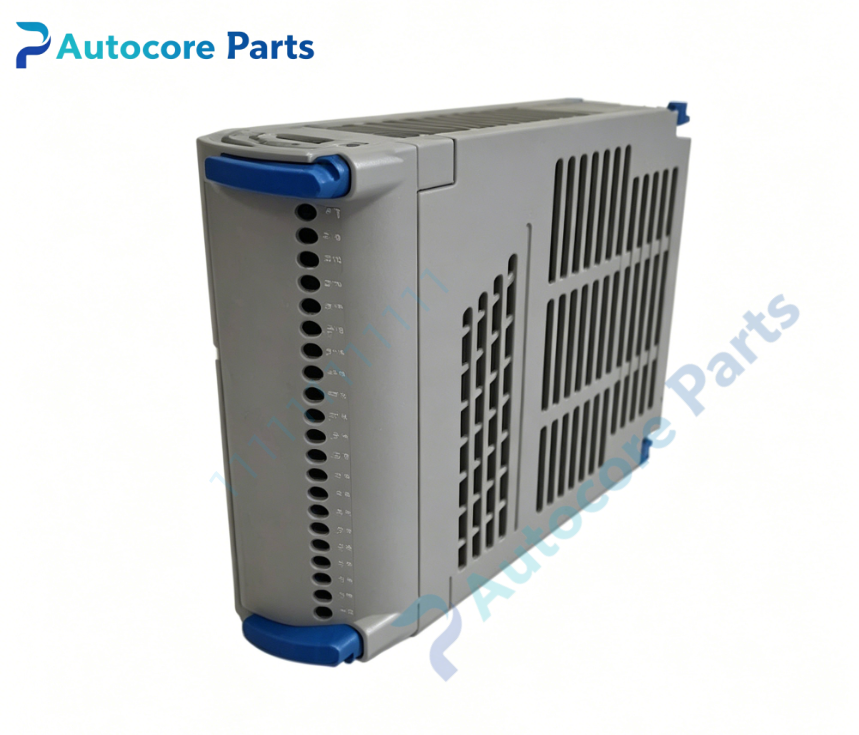

Emerson 1C31125G01 Ovation Digital Output Personality Module

Technical Specifications

Model：1C31125G01

Brand：Emerson

Product Type：Digital Output Personality Module

Applicable System：Emerson Ovation distributed control system thermal power plant DCS control cabinet

Matching Module：1C31122G01 digital output electronics module

Channel quantity：16 single‑ended digital output channels

Output voltage range：0‑60VDC

Per channel max current：500mA

Propagation delay：Max 2.5ms

Isolation：1000VAC between field channel and logic side

Installation：Plug‑in install with 1C31122G01 on Ovation I/O base

Common Revision：G01 hardware revised version

Status Indicator：No independent LED indicator shares status LED of host electronic module

Built‑in Function：Field single‑ended discrete output channel configuration fuse overcurrent protection surge interference suppression cooperate with host module drive field relays indicator lamps and solenoid components

Working Temperature：0℃ ~ +60℃

Storage Temperature：‑40℃ ~ +85℃

Protection Class：IP20

Weight：0.13kg

Product Brief:

1C31125G01 is Emerson Ovation digital output personality module G01 hardware revision works paired with 1C31122G01 electronic module

It is plugged onto I/O base together with host module defines 16 single‑ended discrete output channels for field device driving

This personality module supports 0‑60VDC field load each channel supports maximum 500mA output current for relays lamps and small solenoid loads

Built‑in fuse protection provides overcurrent safeguard for each output channel avoids damage caused by field short‑circuit fault

It transfers logic level signal from electronic module to field side completes discrete control for thermal‑process auxiliary equipment

No extra software configuration required after correct physical installation host module identifies personality hardware automatically

Shares hot‑swap short‑circuit diagnosis and surge suppression features from matched 1C31122G01 electronic module

This is EOL discontinued spare part widely used for maintenance and renovation of thermal power plant Ovation DCS system

Please confirm matching host module model before purchase

Strict ESD anti‑static protection shall be followed during installation and replacement
