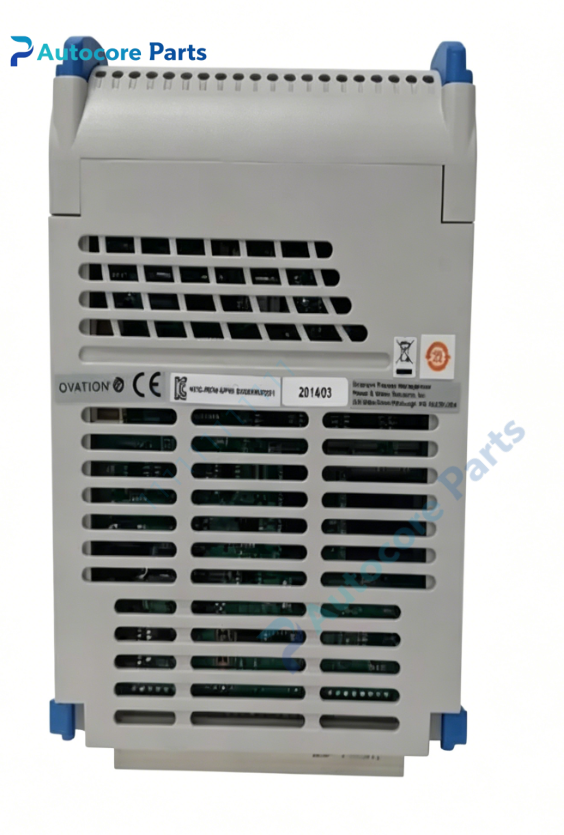

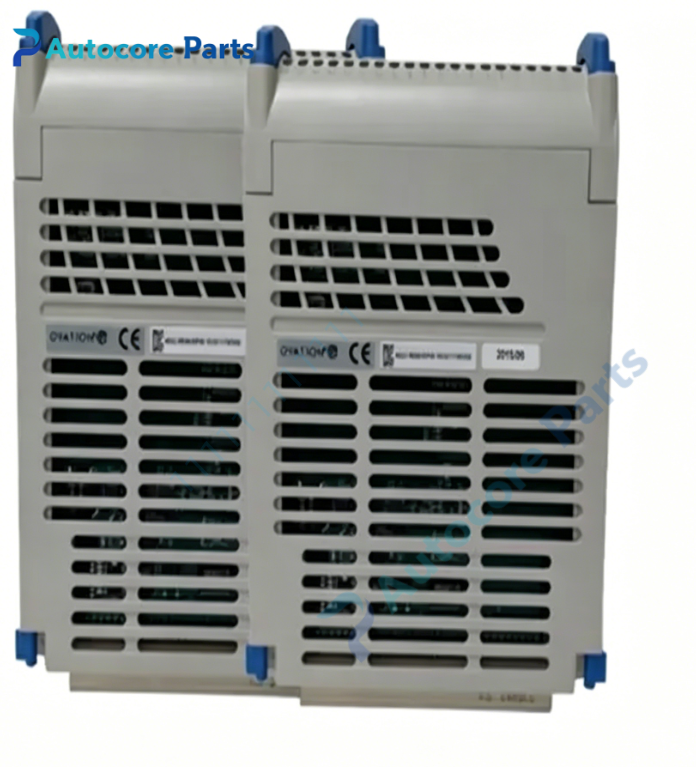

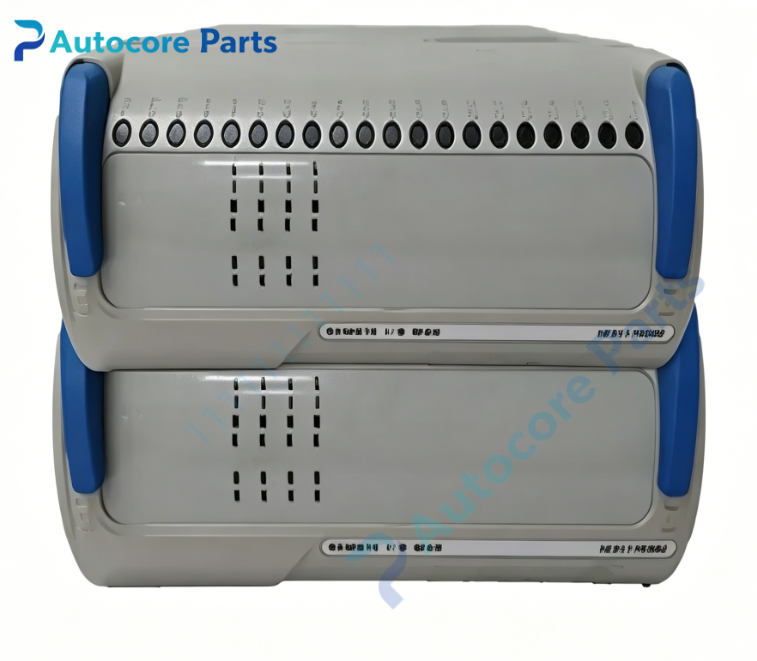

Emerson 1C31164G04 Ovation RTD Personality Module

Technical Specifications

Model:1C31164G04

Brand:Emerson

Product Type:4‑Wire Pt100 RTD Personality Module

Applicable System:Emerson Ovation distributed control system thermal power plant DCS control cabinet

Matching Module:1C31161G01 1C31161G02 RTD electronics module

Channel quantity:4 independent RTD temperature input channels

Sensor type:Pt100 thermal‑resistance sensor

Wiring mode:4‑wire RTD field wiring

Isolation:1000VAC field‑to‑backplane galvanic isolation

Installation:Plug‑in install with RTD electronic module on Ovation I/O base

Common Revision:G04 hardware revised version

Status Indicator:No independent LED indicator shares status LED of host electronic module

Built‑in Function:Field 4‑wire Pt100 RTD signal conditioning lead‑wire resistance full compensation surge interference suppression overvoltage protection cooperate with host module collect high‑precision temperature data for boiler and rotating‑equipment

Working Temperature:0℃ ~ +60℃

Storage Temperature:‑40℃ ~ +85℃

Protection Class:IP20

Weight:0.13kg

Product Brief:

1C31164G04 is Emerson Ovation RTD personality module G04 hardware revision works paired with 1C31161 series electronic modules

It is plugged onto I/O base together with host module defines 4‑channel hardware interface for 4‑wire Pt100 thermal‑resistance signal acquisition

This personality module adopts 4‑wire wiring scheme achieves full lead‑wire resistance compensation further eliminates measurement error caused by field cable resistance, delivers higher temperature measuring accuracy compared with 3‑wire version

It is widely used for high‑precision temperature monitoring of boiler drum metal wall turbine bearing and key equipment in thermal‑power‑plant closed‑loop control occasions

1000VAC galvanic isolation separates field temperature‑sensor side from DCS logic backplane suppresses ground‑loop interference and transient surge damage

It transfers field resistance variation signal to host electronic module for analog‑to‑digital conversion and backplane data transmission

No extra software configuration required after correct physical installation host module identifies personality hardware automatically

Shares hot‑swap channel diagnosis and surge suppression features from matched RTD electronic module

This is EOL discontinued spare part widely used for maintenance and renovation of thermal power plant Ovation DCS system

Please confirm matching host module model before purchase

Strict ESD anti‑static protection shall be followed during installation and replacement
