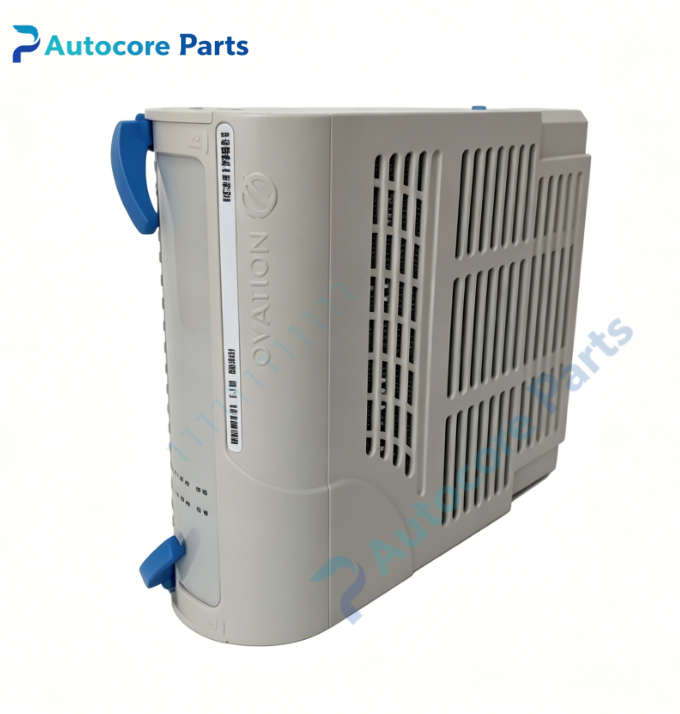

Emerson 1C31177G02 Ovation Loop Interface Personality Module

Technical Specifications

Model:1C31177G02

Brand:Emerson

Product Type:4‑20mA Current AO Loop Interface Personality Module

Applicable System:Emerson Ovation distributed control system thermal power plant DCS control cabinet

Matching Module:Ovation analog I/O electronics module

Analog Output range:4‑20 mA DC

Max load resistance:600Ω

Isolation:1000VAC field‑to‑backplane galvanic isolation

Installation:Plug‑in install with analog I/O electronic module on Ovation I/O base

Common Revision:G02 hardware revised version

Status Indicator:No independent LED indicator shares status LED of host electronic module

Built‑in Function:Field 4‑20 mA analog output signal conditioning, surge interference suppression, overvoltage protection, cooperate with host module complete regulating valve, actuator positioner drive output for thermal‑power‑plant control loops

Working Temperature:0℃ ~ +60℃

Storage Temperature:‑40℃ ~ +85℃

Protection Class:IP20

Weight:0.13kg

Product Brief:

1C31177G02 is Emerson Ovation 4‑20 mA current‑output personality module G02 hardware revision, works paired with Ovation analog I/O electronic main module.

It is plugged onto I/O base together with host module, defines hardware interface for 4‑20 mA analog output field signals.

This personality module converts DCS internal digital control signals into stable 4‑20 mA current output, widely used for boiler water‑valve, steam‑valve and auxiliary‑equipment regulating loop control in thermal‑power‑plant sites.

1000VAC galvanic isolation separates field actuator side from DCS logic backplane, suppresses ground‑loop interference and transient surge damage.

No extra software configuration required after correct physical installation, host module identifies personality hardware automatically.

Shares hot‑swap, channel diagnosis and surge‑suppression features from matched analog I/O electronics module.

This is EOL discontinued spare part widely used for maintenance and renovation of thermal power plant Ovation DCS system.

Please confirm matching host module model before purchase.

Strict ESD anti‑static protection shall be followed during installation and replacement.
