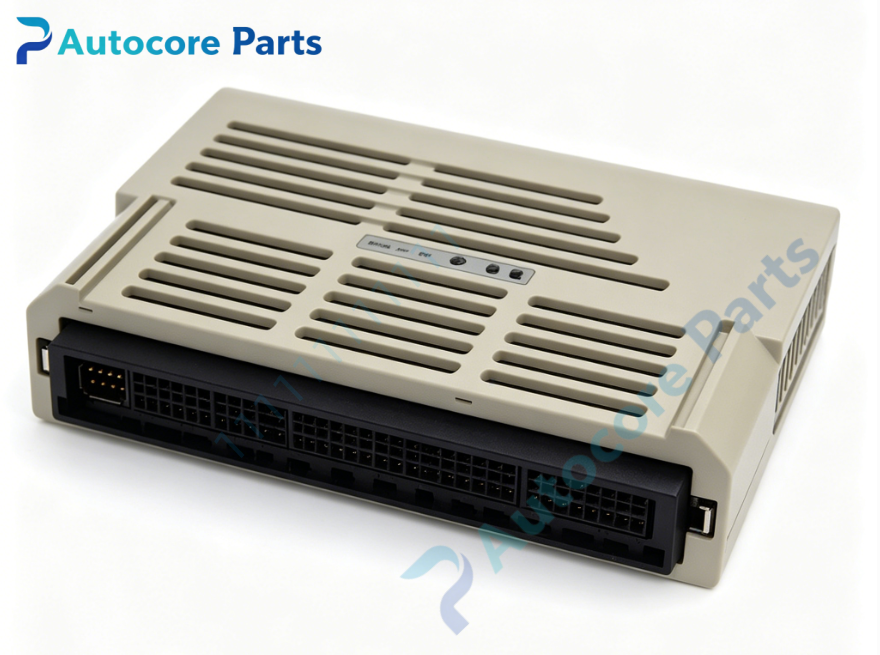

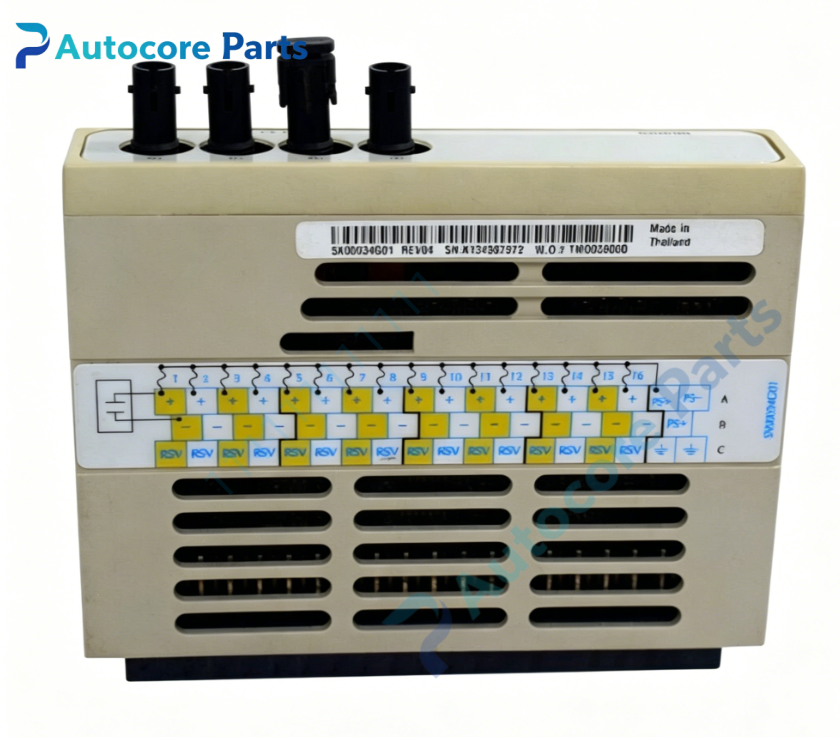

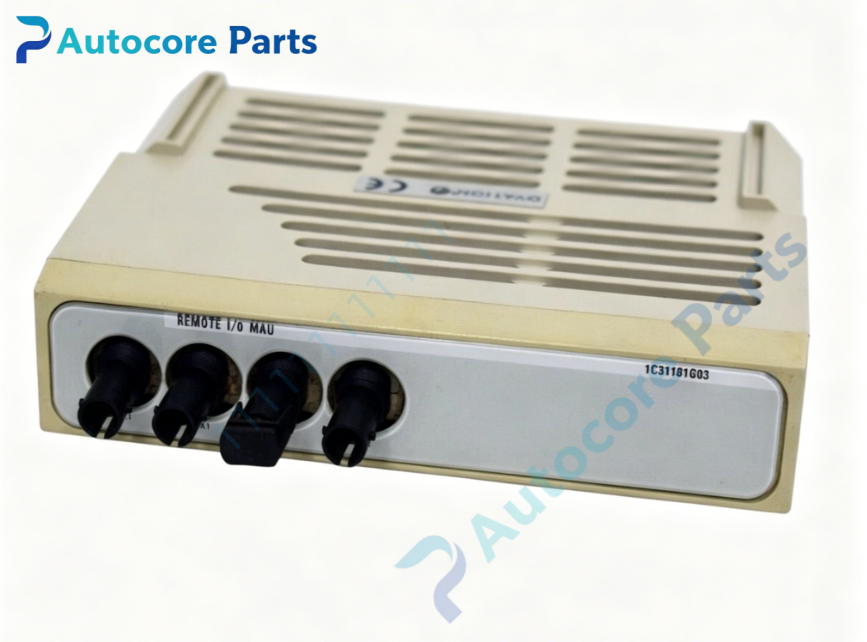

Emerson 1C31181G03 Ovation MAU Personality Module

Technical Specifications

Model:1C31181G03

Brand:Emerson

Product Type:Multi‑Mode Media MAU Personality Module

Applicable System:Emerson Ovation distributed control system thermal power plant DCS control cabinet

Matching Module:1C31179 series MAU electronic module

Media type:Supports switching between copper twisted‑pair and fiber‑optic remote I/O bus

Isolation:1500V field‑to‑backplane galvanic isolation

Installation:Plug‑in install with MAU electronic module on Ovation I/O base

Common Revision:G03 hardware revised version

Status Indicator:No independent LED indicator shares status LED of host MAU electronic module

Built‑in Function:Multi‑media bus signal conditioning, surge interference suppression, overvoltage protection, provides physical media interface for remote I/O bus wiring mode switching

Working Temperature:0℃ ~ +60℃

Storage Temperature:‑40℃ ~ +85℃

Protection Class:IP20

Weight:0.13kg

Product Brief:

1C31181G03 is Emerson Ovation multi‑mode media MAU personality module G03 hardware revision, works paired with 1C31179 series MAU electronic main module.

It is plugged onto I/O base together with host module, supports copper twisted‑pair and fiber‑optic two‑kind transmission media, can adapt different field wiring distance requirements.

This personality module brings flexible deployment options for thermal‑power‑plant remote I/O subsystem, can select corresponding transmission medium according to on‑site interference environment and transmission distance.

1500V galvanic isolation separates remote bus side from DCS logic backplane, suppresses ground‑loop interference and transient surge damage.

No extra software configuration required after correct physical installation, host MAU electronic module automatically identifies personality hardware.

Shares hot‑swap, link diagnosis and surge‑suppression features from matched MAU electronic module.

This is EOL discontinued spare part widely used for maintenance and renovation of thermal power plant Ovation DCS system.

Please confirm matching host MAU electronic module model before purchase.

Strict ESD anti‑static protection shall be followed during installation and replacement.
