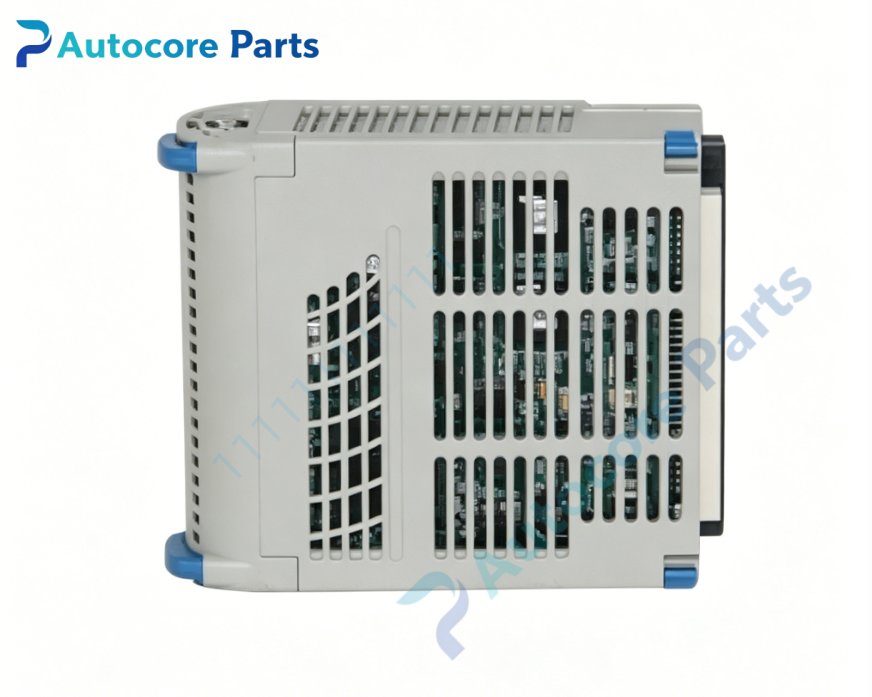

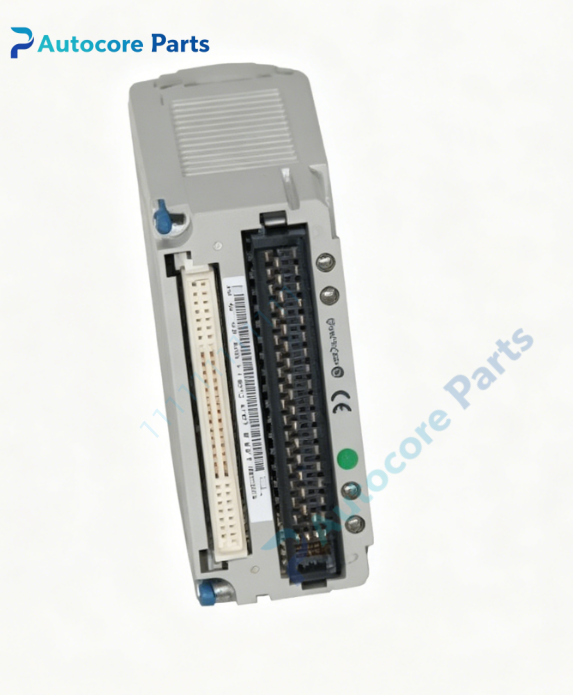

Emerson 1C31189G01 Ovation Speed Detector Electronic Module

Technical Specifications

Model:1C31189G01

Brand:Emerson

Product Type:Speed Detector Electronic Module

Applicable System:Emerson Ovation distributed control system thermal power plant DCS control cabinet

Matching Module:Ovation speed detector personality module

Channel quantity:8 pulse input channels

Input signal:Pulse, proximity sensor, encoder frequency signal

Frequency measuring range:0.1Hz‑200Hz

Backplane power:24VDC from Ovation I/O base

Isolation:1000VAC field‑to‑backplane galvanic isolation

Installation:Plug‑in install on Ovation I/O base, cooperate with speed detector personality module

Common Revision:G01 hardware revised version

Status Indicator:On‑board LED for power, channel status and module fault indication

Built‑in Function:Field pulse frequency signal conditioning, rotating speed calculation, overspeed signal processing, surge interference suppression, cooperate with matched personality module complete turbine rotating speed acquisition and protection logic processing

Working Temperature:0℃ ~ +60℃

Storage Temperature:‑40℃ ~ +85℃

Protection Class:IP20

Weight:0.62kg

Product Brief:

1C31189G01 is Emerson Ovation speed‑detector electronic module G01 hardware revision, it is the main electronic unit for rotating‑speed measurement, must work together with corresponding speed detector personality module.

It is plugged onto matched I/O base, receives pulse signals from proximity sensors and encoders, converts frequency signals into rotating‑speed data for DCS system.

This module is core spare part for thermal‑power‑plant turbine monitoring, supports overspeed detection and rotating‑equipment safety interlock protection.

1000VAC galvanic isolation separates field sensor side from DCS logic backplane, suppresses ground‑loop interference and transient surge damage.

Built‑in LED indicators help technicians quickly locate channel fault and module abnormality.

Supports hot‑swap operation, can be replaced online without system shutdown for convenient site maintenance.

No extra software configuration required after correct physical installation, system automatically identifies matched personality hardware.

This is EOL discontinued spare part widely used for maintenance and renovation of thermal power plant Ovation DCS system.

Please confirm matching personality module model before purchase.

Strict ESD anti‑static protection shall be followed during installation and replacement.
