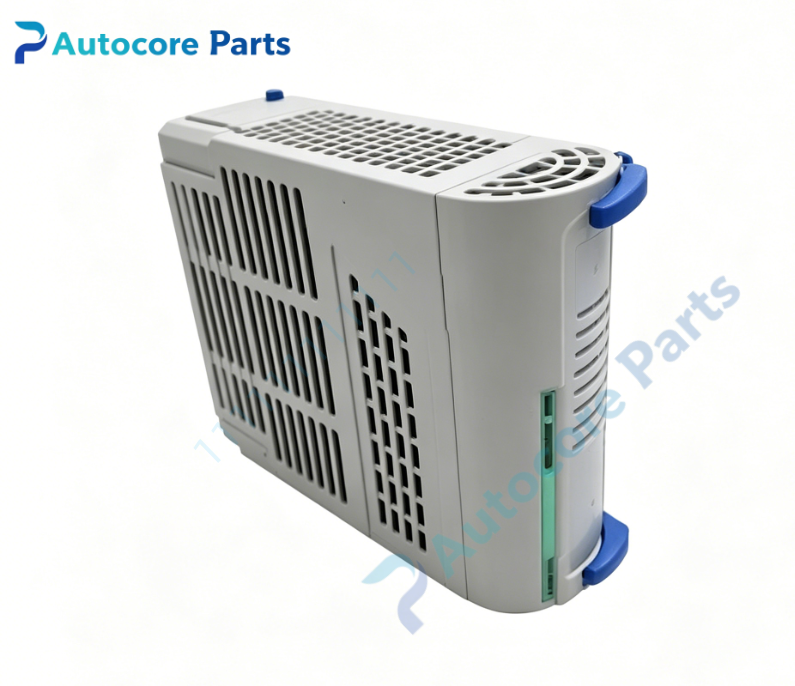

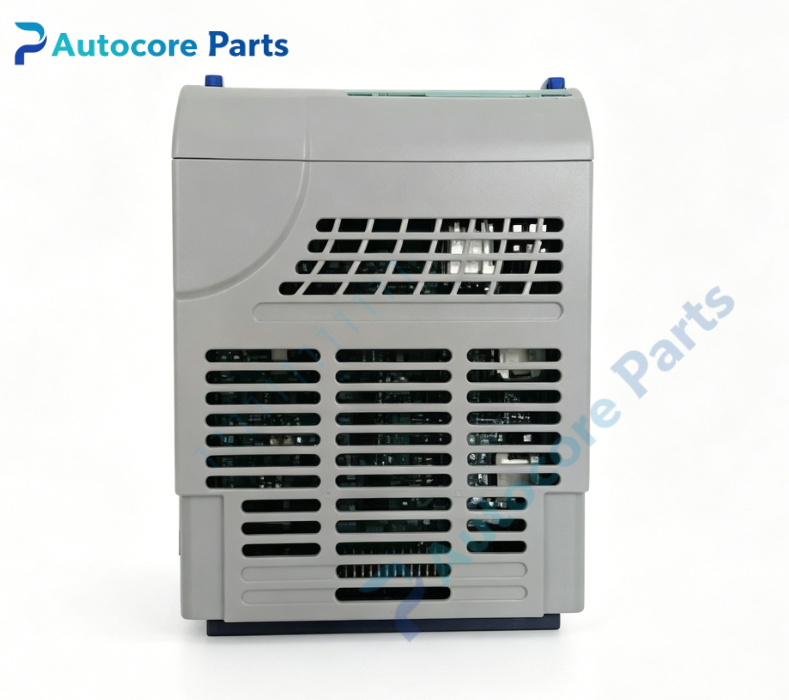

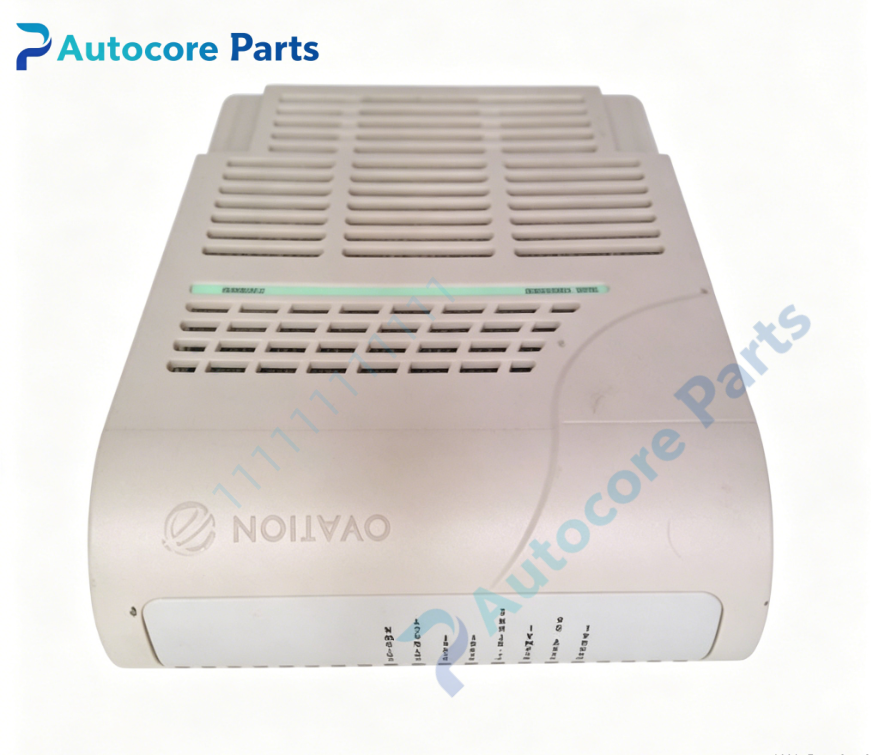

Emerson 1C31194G02 Ovation Valve Positioner Electronic Module

Technical Specifications

Model:1C31194G02

Brand:Emerson

Product Type:Valve Positioner Electronic Module

Applicable System:Emerson Ovation distributed control system thermal power plant DCS control cabinet

Matching Module:Ovation valve positioner personality module

LVDT drive output:23.75V AC peak‑to‑peak, 3KHz excitation signal

Backplane power:24VDC from Ovation I/O base

Isolation:1000VAC field‑to‑backplane galvanic isolation

Installation:Plug‑in install on Ovation I/O base, cooperate with valve positioner personality module

Common Revision:G02 hardware revised version

Status Indicator:On‑board LED for power, channel status and module fault indication

Built‑in Function:3KHz LVDT excitation signal output, servo‑valve closed‑loop position regulation, position feedback signal processing, surge interference suppression, cooperate with matched personality module complete electro‑hydraulic servo valve precise position control

Working Temperature:0℃ ~ +60℃

Storage Temperature:‑40℃ ~ +85℃

Protection Class:IP20

Weight:0.42kg

Product Brief:

1C31194G02 is Emerson Ovation valve positioner electronic module G02 hardware revision, upgraded 3KHz LVDT excitation drive version compared with G01, must work together with corresponding valve positioner personality module.

It is plugged onto matched I/O base, outputs 23.75V AC 3KHz excitation signal for LVDT position sensor, receives position feedback signal and forms closed‑loop control for electro‑hydraulic servo valves.

This module is mainly applied for steam turbine electro‑hydraulic control system in thermal‑power‑plant, realizes high‑precision adjustment for steam valve opening, guarantees stable turbine operation.

1000VAC galvanic isolation separates field actuator side from DCS logic backplane, suppresses ground‑loop interference and transient surge damage.

Built‑in LED indicators help technicians quickly locate channel fault and module abnormality.

Supports hot‑swap operation, can be replaced online without system shutdown for convenient site maintenance.

No extra software configuration required after correct physical installation, system automatically identifies matched personality hardware.

This is EOL discontinued spare part widely used for maintenance and renovation of thermal power plant Ovation DCS system.

Please confirm matching personality module model before purchase.

Strict ESD anti‑static protection shall be followed during installation and replacement.
