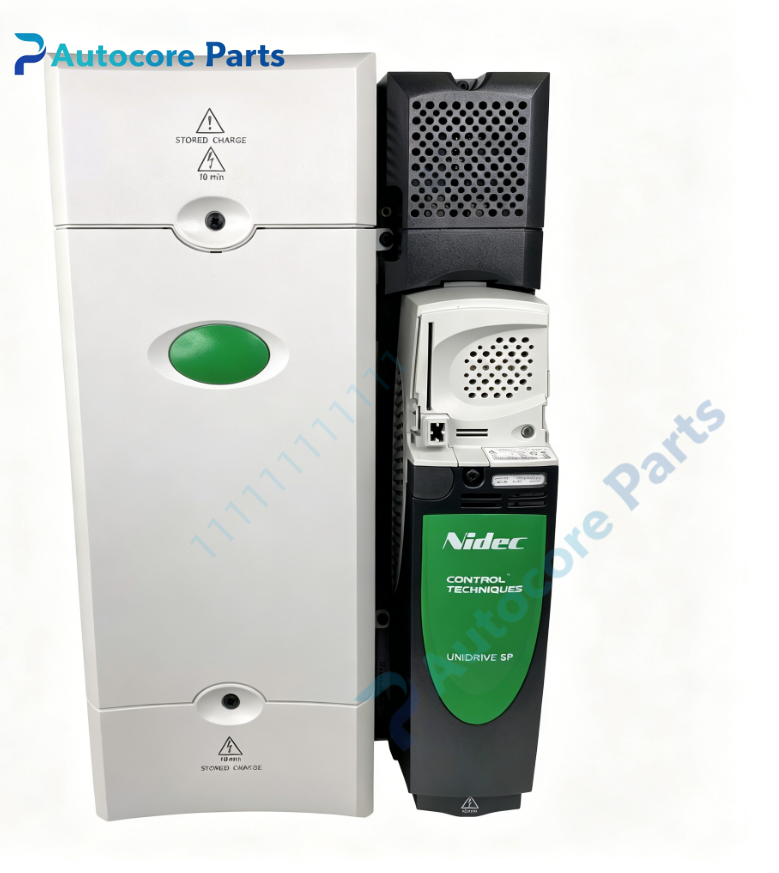

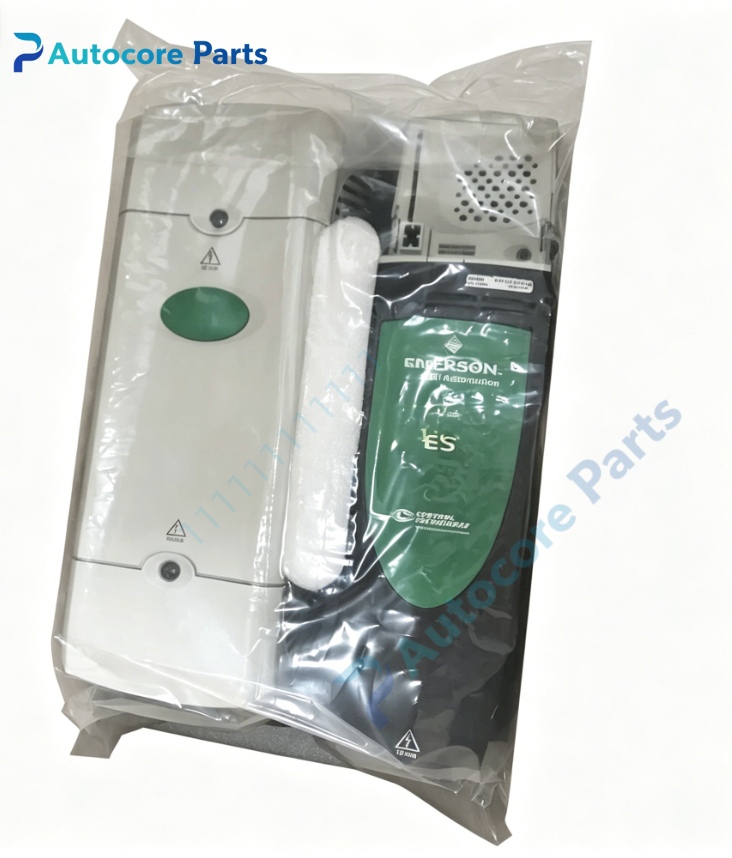

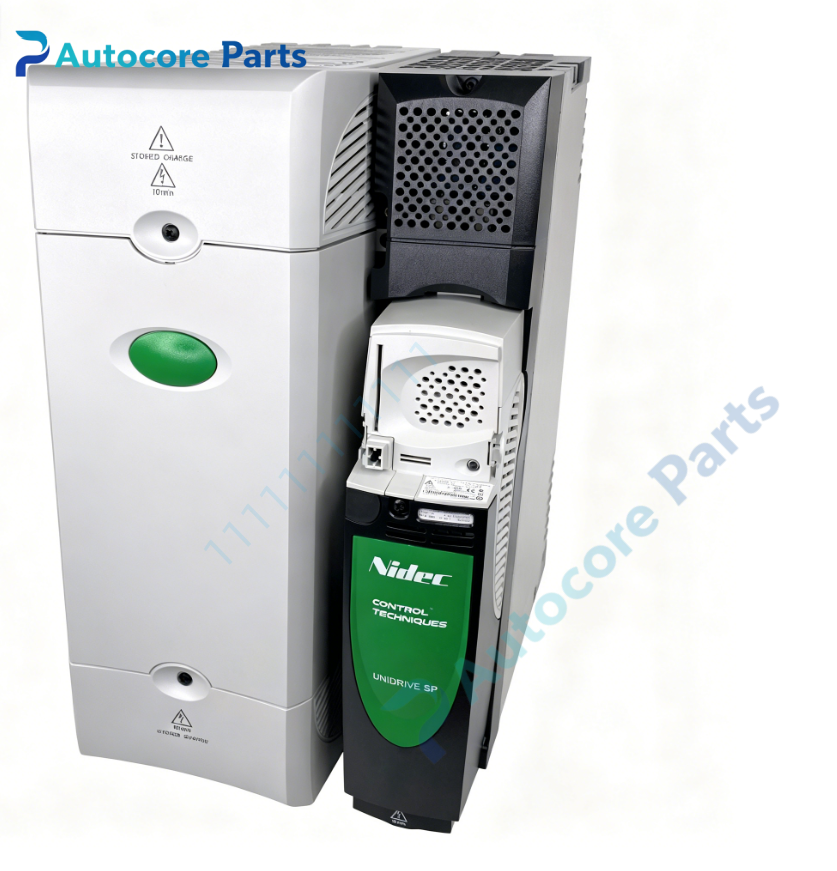

Emerson Control Techniques SP4403 Unidrive SP AC Drive Unit

Module Feature

SP4403 belongs to Unidrive SP series universal AC drive manufactured by Emerson Control Techniques,rated 45kW heavy duty /55kW normal duty. It supports V/F,open-loop vector,closed-loop flux vector,RFC rotor flux control,servo and four-quadrant regenerative control,compatible with induction motors and Unimotor FM permanent magnet servo motors. It is equipped with digital and analog I/O terminals,SM expansion slots for encoder feedback and fieldbus communication modules. Built-in dynamic braking transistor and Modbus RTU over RS485 interface. Widely used in winders,extruders,mixers,conveyors and heavy-duty factory automation equipment.

Working principle

Three-phase 50/60Hz AC mains power is rectified to DC bus. IGBT power module converts DC into adjustable voltage and frequency AC output. The drive receives analog,digital or fieldbus command signals. Encoder feedback enables high-precision closed-loop speed and position regulation. Built-in dynamic braking circuit absorbs regenerative energy during motor rapid deceleration.

Onboard components

Input rectifier bridge,IGBT power stage,main control PCB,LED status panel,dynamic braking transistor,heat sink,power terminal block,control I/O terminal block,option module connector.

LED indicators

Power LED,run status LED,fault alarm LED.

Hardware self-diagnosis

Overvoltage,undervoltage,overcurrent,overtemperature,output short circuit,earth fault,phase loss,motor overload,encoder signal loss detection.

Programming software

CTSoft software,supports motor auto-tune,real-time speed monitoring,fault log reading and parameter backup & restore.

Electrical & Process Parameters

Model:SP4403 Brand:Emerson Control Techniques Device type:Unidrive SP Universal AC Drive Heavy duty rating:45kW,96A continuous current,150% short-time overload Normal duty rating:55kW,104A continuous current,110% overload Input voltage:380 ~ 480VAC three phase Input frequency:48~65Hz Control mode:V/F,open-loop vector,closed-loop vector,RFC servo,four-quadrant regeneration Feedback:Incremental,SinCos,SSI,resolver via option modules Communication:RS485 Modbus RTU Cooling:Forced air cooling Protection:Over temperature,over current,over voltage,under voltage,short circuit,earth fault,phase loss,motor overload protection

Mechanical & Structure

Mounting:Panel mounting inside control cabinet Protection class:IP20 Housing:Metal frame housing

Environmental

Operating temperature:-10℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:20~80% non-condensing Certification:CE,UL compliant Status: Emerson Control Techniques Unidrive SP high power universal drive for heavy-duty industrial motion control

Installation

Follow ESD safety procedure before handling.Mount vertically and reserve sufficient ventilation gap.Separate power cables and signal cables to reduce EMI interference.Connect three-phase mains to L1/L2/L3 terminals and motor cable to U/V/W terminals.Complete motor auto-tune and parameter commissioning before operation.

Interface

Main power terminal,motor output terminal,digital/analog I/O terminal,encoder connector,option module slots,keypad port.

Diagnostic

Over current:motor winding short circuit,cable damage or mechanical jam. Overheat:blocked heat sink or continuous overload. Encoder fault:loose wiring or encoder hardware damage. Under voltage:input mains fluctuation or phase missing. Unstable motor speed:incorrect motor parameters or poor shielding of signal wires.

Product Brief

Emerson Control Techniques SP4403 Unidrive SP AC variable frequency drive,45kW heavy duty /55kW normal duty,380-480V three phase input,supports vector,servo and four-quadrant regenerative control,expandable by SM option modules for heavy-load industrial automation applications.
