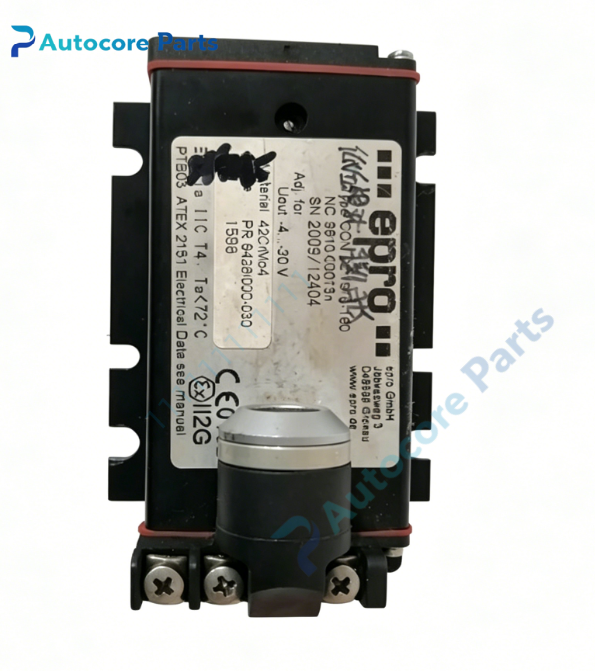

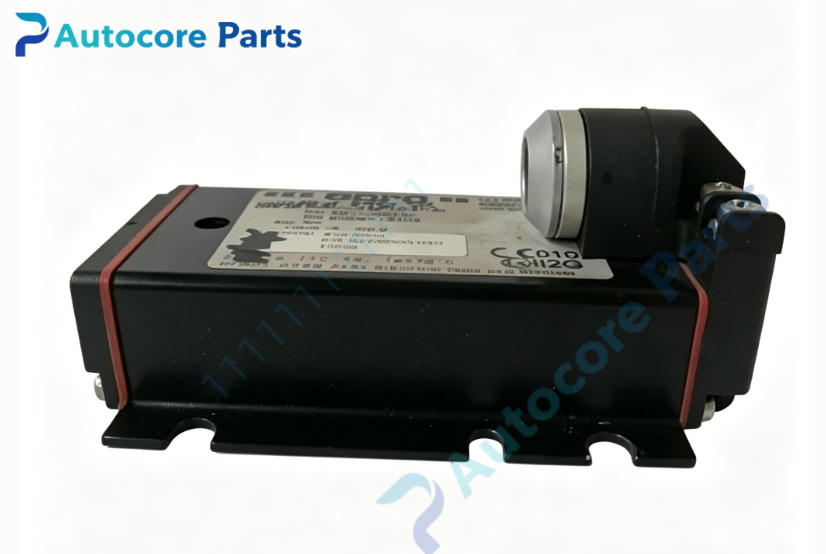

EPRO 9610-00013n Process Input Monitor

Technical Specifications

Model:9610-00013n

Brand:EPRO(Emerson)

Channel:1 analog input channel

Input signal:0-10VDC

Output signal:4-20mA analog output

Power supply:24VDC

Measurement accuracy:±0.2%FS

Operating temperature:-20~+70℃

Storage temperature:-40~+85℃

Relative humidity:5~95% non-condensing

Mounting:DIN rail mount

Protection class:IP20

Weight:0.75kg

Certification:CE

System compatibility:Matches EPRO MMS6000 TSI monitoring system,collects auxiliary process signals such as temperature,pressure,oil pressure for steam turbine,compressor and generator auxiliary condition monitoring.

Function:Acquire external analog process signal,convert input voltage signal into standard 4-20mA current output.Transmit converted signal to TSI system for auxiliary parameter monitoring,alarm and condition diagnosis.

Installation:DIN rail installation inside control cabinet.Connect input signal to front terminal,4-20mA output wiring to TSI system.

Interface:

‑Screw terminal block for 0-10V signal input

‑Screw terminal block for 4-20mA output and 24VDC power

‑LED indicator for power and fault status

Circuit feature:High precision signal sampling circuit,built-in cable fault detection,overvoltage and reverse polarity protection,strong anti-electromagnetic interference.

Feature:EPRO 9610-00013n single channel process input monitor,DIN rail design for cabinet installation.Used for non-vibration auxiliary process parameter collection. Common faults:input circuit damage,terminal corrosion,output drift. Confirm signal type and measuring range before replacement.

Diagnostic:Module fault causes loss of process signal,abnormal 4-20mA output,trigger TSI auxiliary parameter alarm.

Built‑in function

9610-00013n converts external analog process signals for rotating machinery auxiliary condition monitoring,widely used for power plant TSI spare replacement.

Product Brief

9610-00013n belongs to EPRO MMS6000 TSI system accessory module family,single channel process input monitor. Verify input signal type and range before ordering. Check signal input and 4-20mA output function during commissioning. Widely applied for steam turbine,compressor and generator auxiliary parameter monitoring. ESD anti‑static protection shall be followed during installation.
