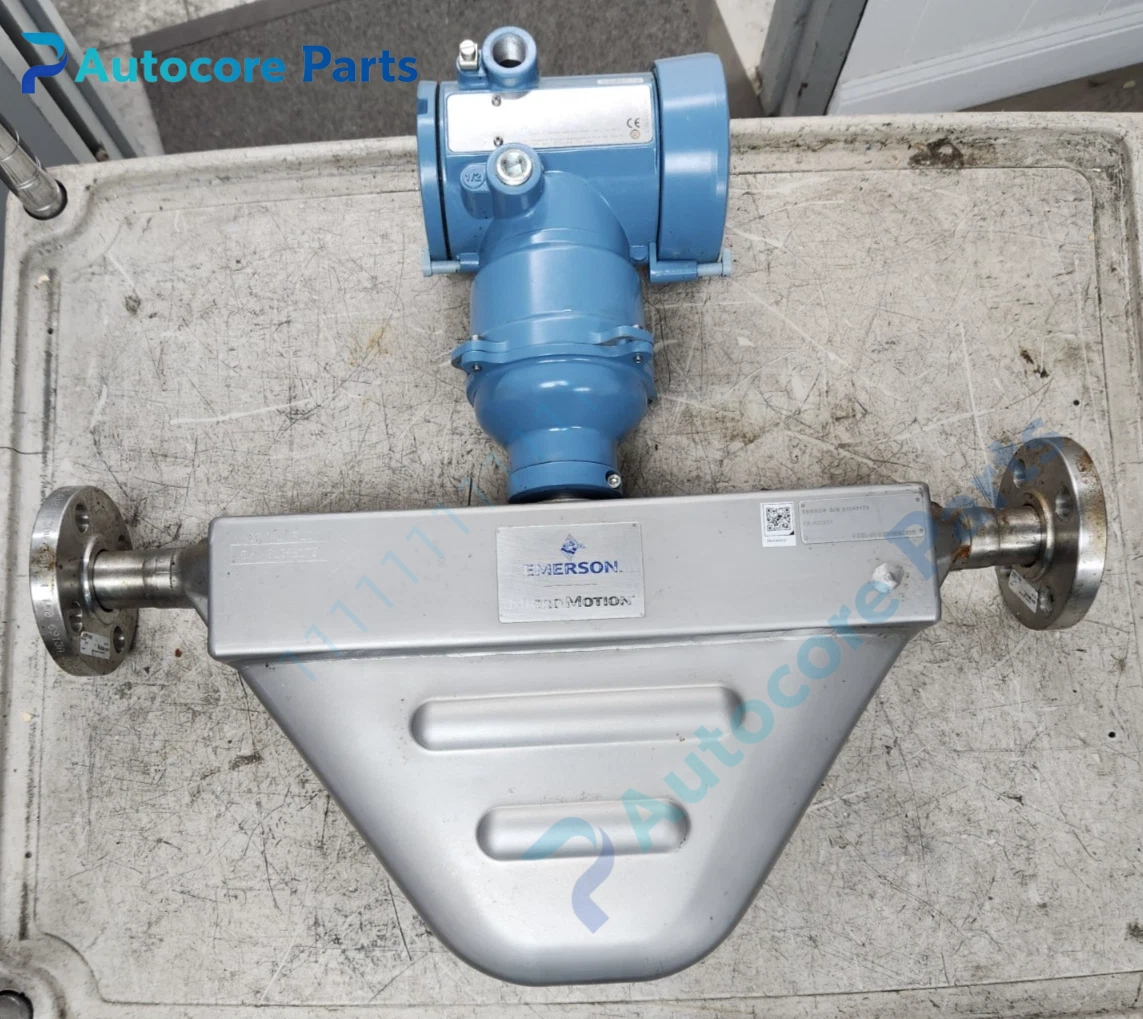

Emerson Micro Motion F100H Coriolis Sensor Unit

Module Feature

F100H530CCAMEZZZZ belongs to Emerson Micro Motion F-series compact self-draining Coriolis sensor. The 1 inch DN25 size adopts Hastelloy C-22 alloy wetted parts, excellent resistance to corrosion, suitable for acids, brine and aggressive chemical fluids. Optimized self-draining tube geometry, no liquid retention inside sensor after process shutdown, suitable for batch and clean-in-place applications. Adopts MVD digital drive and signal processing architecture, strong immunity to two-phase flow disturbance. Supports trade transfer certification including NTEP, MID OIML R117. It needs to pair with Micro Motion compatible transmitter for signal conversion, local display and communication output. Widely used in chemical, pharmaceutical, specialty chemical and oil & gas process metering.

Working principle

Dual flow tubes are vibrated at resonant frequency. Fluid passing through vibrating tubes generates Coriolis effect, which creates phase shift between two tube vibration signals. The coil and pickoff sensors capture phase difference and tube frequency. The phase shift is proportional to mass flow rate; resonant frequency changes with fluid density. The sensor sends raw frequency and temperature signals to matched transmitter for calculation of mass flow, volumetric flow, density and temperature.

Onboard components

Dual Coriolis flow tubes, Hastelloy C-22 wetted body, drive coil, pickoff sensor assembly, RTD temperature element, sensor wiring junction, compact stainless steel outer housing, process connection flange.

LED indicators

No LED indicators. All status and measurement data are displayed on paired transmitter.

Hardware self-diagnosis

Tube amplitude monitoring, coil resistance check, RTD open/short detection, signal balance diagnostic, smart meter verification function via transmitter software.

Programming software

Emerson AMS Device Manager, ProLink, used for sensor configuration, calibration, verification and firmware maintenance.

Electrical & Process Parameters

Model:F100H530CCAMEZZZZ Brand:Emerson Micro Motion Device type:Coriolis Mass Flow Sensor Size:1 inch DN25 Wetted material:Hastelloy C-22 Max working pressure:2160 psig (149 bar) Measurement:Mass flow, volume flow, density, temperature Compatible transmitters:1500,1700,2700 series Accuracy:Liquid ±0.2% standard, optional higher accuracy grade

Mechanical & Structure

Mounting:Inline flange mount Protection class:IP66 / IP67 Housing:Alloy flow tube with protective outer cover

Environmental

Operating temperature:-40℃ ~ +150℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:ATEX, IECEx, UL, FM, NTEP compliant Status: Emerson original Micro Motion F-series self-draining sensor

Installation

Isolate process and release pressure before operation. Install Honeywell Emerson F100H530CCAMEZZZZ sensor on straight pipeline section, follow required upstream and downstream straight run. Wire sensor cable to matched transmitter. Complete zero calibration under process condition and verify measurement stability.

Interface

Process flange ports, sensor signal cable terminal, RTD temperature sensing element.

Diagnostic

Unstable flow reading: two-phase fluid, coating or gas entrainment inside tube. Sensor fault alarm: coil damage or sensor cable open/short. Density reading deviation: fluid composition change or tube fouling.

Product Brief

Emerson Micro Motion F100H530CCAMEZZZZ DN25 self-draining Coriolis mass flow sensor, Hastelloy C22 material, for corrosive liquid mass flow and density metering.
