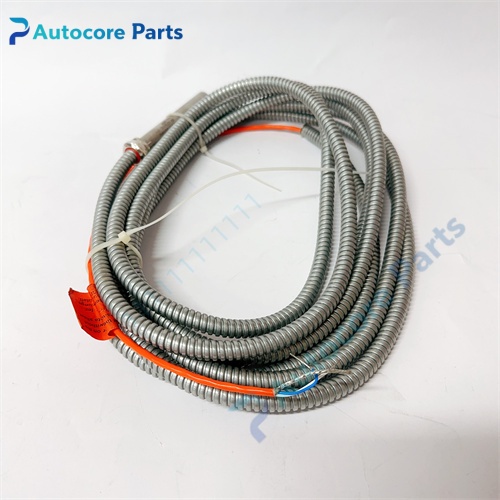

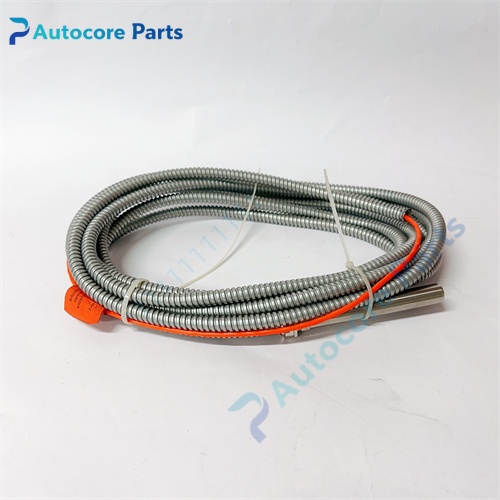

EPRO 9200-00097 Sensor Extension Cable

Technical Specifications

Model:9200-00097

Brand:EPRO(Emerson)

Cable type:Shielded armored signal cable

Cable length:5m

Insulation material:Fluororubber

Outer protection:Stainless steel metal armor

Characteristic impedance:50Ω±5%

Capacitance:≤120pF/m

Operating temperature:-40~+200℃

Min bending radius:35mm

Connector:Compatible with PR9376 probe connector

Weight:0.32kg

Certification:CE

System compatibility:Special extension cable for EPRO PR9376 series hall speed & key phase probe,works with MMS6000 TSI system,MMS6823 speed monitoring module,for steam turbine,compressor,generator shaft speed and key phase signal transmission.

Function:Transmit hall pulse signal between PR9376 probe and monitoring module.Double shielded structure suppresses electromagnetic interference,guarantees stable pulse signal transmission in high temperature and oily bearing housing environment.

Installation:Connect one end to PR9376 speed probe,another end to MMS monitoring module terminal. Fix cable along bearing housing,avoid sharp bending and extrusion.

Interface:

‑Shielded inner signal wire

‑Metal armor outer protective layer

‑Terminal connection for TSI monitor

Circuit feature:Low capacitance cable core,high temperature resistant fluororubber insulation,double shield structure,anti oil,anti vibration,strong EMC performance.

Feature:EPRO original armored extension cable for PR9376 speed probe,5m version. Total cable length must match measuring chain requirement. Common faults:armor crack,inner wire breakage,connector corrosion. Confirm matched probe before replacement.

Diagnostic:Cable damage causes pulse signal interruption,loss of speed or keyphase signal,trigger TSI speed alarm.

Built‑in function

9200-00097 extends wiring distance of hall speed probe for rotating machinery protection,widely used in power plant TSI spare replacement.

Product Brief

9200-00097 belongs to EPRO speed sensor cable family,5m armored shielded extension cable for PR9376 series probe. Verify total cable length and probe compatibility before ordering. Check cable continuity and insulation resistance during commissioning. Widely applied for steam turbine,compressor and generator condition monitoring. ESD anti‑static protection shall be followed during installation.
