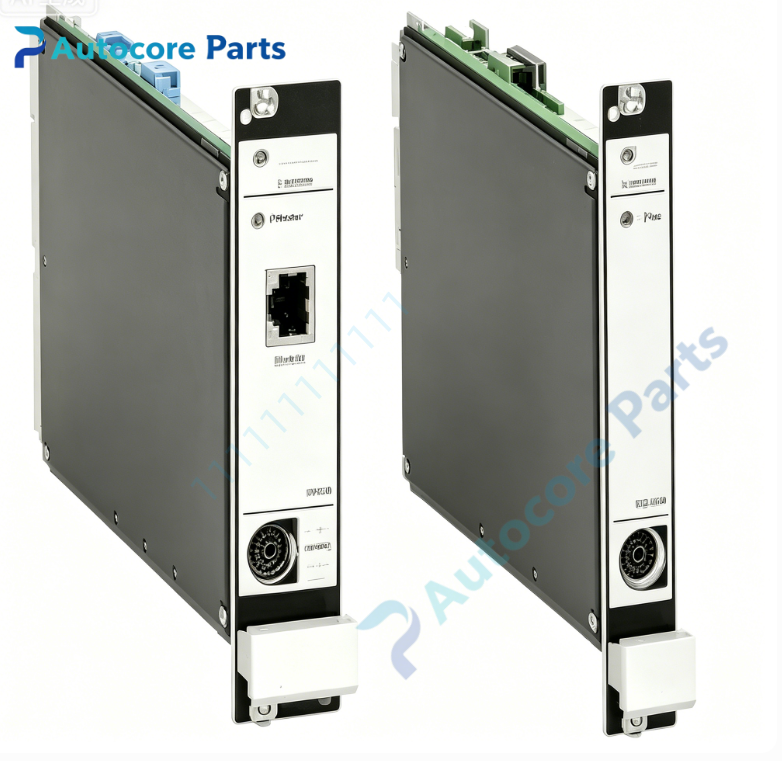

EPRO A6824 Rack Interface Module

Technical Specifications

Model:A6824

Brand:EPRO(Emerson)

Series:AMS6500 / IMR6000 TSI system

Power supply:24VDC

Power consumption:Max 6W

Communication:Modbus RTU(RS485),Modbus TCP/IP 10BaseT(RJ45)

Form factor:3U,6TE single slot Eurocard,hot swappable

Operating temperature:0~65℃

Storage temperature:-30~85℃

Relative humidity:5~95% non-condensing

Dimensions:100mm ×30mm ×160mm

Weight:0.32kg

Certification:CE,API 670 compliant

System compatibility:Works for AMS6500 classic TSI rack IMR6000. Collect data from all monitoring cards in rack,transmit vibration,shaft gap,speed and alarm status to DCS/SCADA.

Function:Central data gateway for TSI rack. Gather real-time measurement values,waveform data,channel status and fault alarms. Convert internal bus data into Modbus RTU/TCP for upper system access;support password protected remote configuration and self-diagnosis.

Installation:Plug into IMR6000 19-inch rack slot,hot swap supported. Rear connector for rack internal bus and power,front RJ45 and serial port for external communication.

Interface:

‑RJ45 Ethernet port Modbus TCP/IP

‑RS485 terminal for Modbus RTU

‑Rear rack bus connector

‑LED indicator for power and communication status

Circuit feature:Built-in industrial processor,continuous hardware self-check,monitor power supply and internal temperature.

Feature:EPRO AMS6500 system rack interface gateway,single slot 3U compact design. Supports multiple racks communication,API670 standard. Common faults:Ethernet port damage,bus communication failure,flash firmware error. Confirm rack model compatibility before replacement.

Diagnostic:Module fault causes loss of all rack TSI data,alarm signals cannot upload to DCS.

Built‑in function

A6824 serves as communication gateway for AMS6500 TSI rack,collect and forward rotating machinery monitoring data,widely used for steam turbine and compressor protection spare replacement.

Product Brief

A6824 belongs to EPRO AMS6500 TSI spare parts family,3U hot-swappable rack interface module with Modbus TCP/RTU. Verify rack type and firmware compatibility before ordering. Check network and bus communication function during commissioning. Widely applied for power plant rotating machinery condition monitoring maintenance. ESD anti‑static protection shall be followed during installation.
