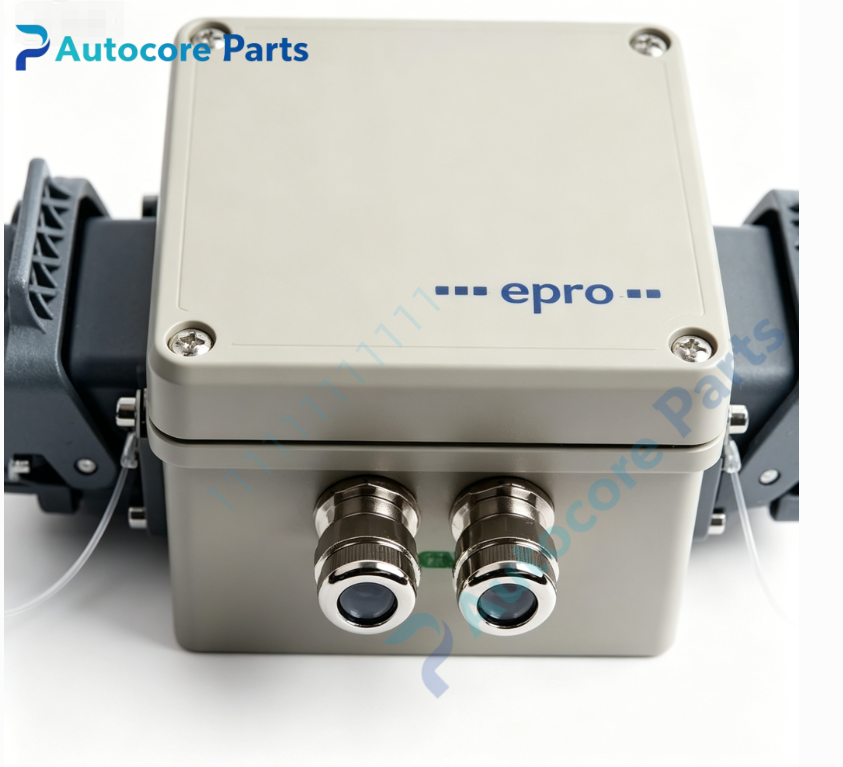

EPRO MMS3120/022-000 Vibration Monitoring Transmitter

Technical Specifications

Model:MMS3120/022-000

Brand:EPRO(Emerson)

Channel:2 independent measuring channels

Measurement type:Acceleration / Velocity / Displacement,software switchable

Frequency range:10Hz~10kHz

Power supply:24VDC(18~31.2VDC)

Output:4-20mA analog output,HART digital communication

Power consumption:2.5W

Alarm setting:Warning,Alarm,Danger three threshold levels

Housing material:Aluminum alloy,wall mount

Connector:Harting heavy duty connector

Protection class:IP67

Operating temperature:-40~+70℃

Relative humidity:5~95% non-condensing

Weight:1.5kg

Certification:CE,API670

System compatibility:Used with EPRO vibration velocity or acceleration sensors,applied to steam turbine,compressor,fan,pump bearing vibration online monitoring,signal connect to DCS/PLC control system.

Function:Field mounted vibration transmitter,collect vibration signal from bearing sensors.Real-time calculate vibration amplitude and spectrum,switch measurement physical quantity via software.Transmit 4-20mA analog value and HART digital data to upper system,trigger relay alarm contact when vibration exceeds preset threshold.

Installation:Wall installation near bearing housing.Connect vibration sensor cable to Harting input port,4-20mA+HART signal cable connect to control cabinet.

Interface:

‑Harting heavy duty input connector for vibration sensor

‑Harting heavy duty output connector for 4-20mA & HART

‑LED indicator for power,alarm and fault status

Circuit feature:High precision signal acquisition circuit,built-in sensor cable break/short circuit self-diagnosis,shock and oil resistant,anti-electromagnetic interference for harsh industrial site.

Feature:EPRO MMS3120 dual channel field vibration transmitter,model /022-000 version. Support HART protocol for remote parameter configuration. Common faults:input circuit burnout,connector pin corrosion,internal sampling chip failure. Confirm sensor type and measuring range before replacement.

Diagnostic:Transmitter fault leads to bearing vibration signal loss,abnormal 4-20mA output,trigger TSI machinery protection alarm.

Built‑in function

MMS3120/022-000 collects bearing vibration data for rotating machinery condition monitoring,widely used for power plant TSI spare replacement.

Product Brief

MMS3120/022-000 belongs to EPRO field vibration transmitter family,wall mounted dual channel unit with HART communication. Verify sensor model and measuring range before ordering. Check sensor input,4-20mA output and HART communication function during commissioning. Widely applied for steam turbine,compressor,fan and pump condition monitoring. ESD anti‑static protection shall be followed during installation.
