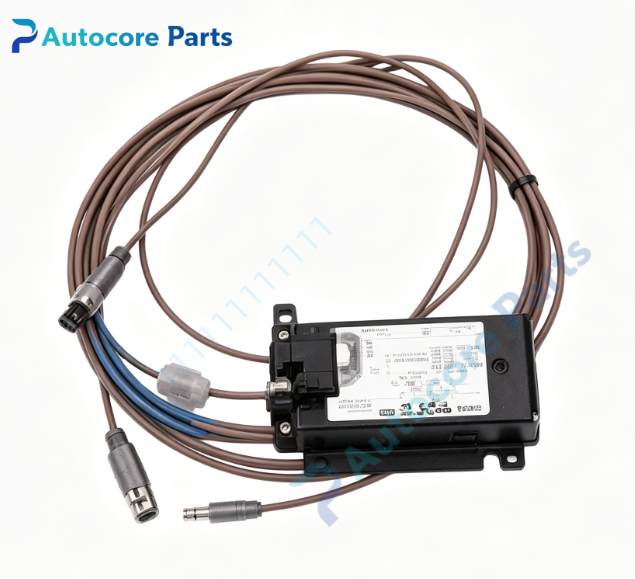

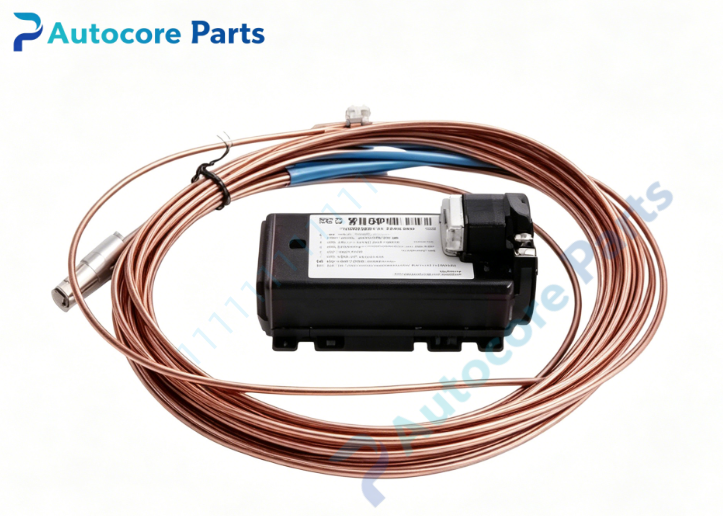

EPRO PR6423/014-040 Eddy Current Probe

Technical Specifications

Model:PR6423/014-040

Brand:EPRO(Emerson)

Probe tip diameter:8mm

Cable length:4m

Measurement principle:Non-contact eddy current

Linear measuring range:0~2mm

Sensitivity:8V/mm

Frequency response:0~10kHz

Probe thread:M10×1

Operating temperature:-35~+180℃

Probe protection:IP65

Weight:0.45kg

Dimensions:Φ8mm ×60mm(probe head)

Certification:CE,API670 compliant

System compatibility:Matches EPRO MMS6000 TSI monitoring system,must work with CON021 preamplifier,for steam turbine,compressor,generator shaft radial vibration and axial displacement monitoring.

Function:Non-contact real-time detection of rotating shaft vibration and axial displacement.Convert gap variation between probe and metal shaft into weak coil signal,send signal to CON021 preamplifier for signal conditioning,then transmit to MMS series monitoring module for alarm and protection interlock.

Installation:Thread mounting installation on bearing housing,adjust air gap within linear range.Connect Lemo coaxial connector to CON021 preamplifier.

Interface:

‑Stainless steel threaded probe head

‑4m armored PTFE integrated cable

‑Lemo coaxial connector for preamplifier connection

Circuit feature:Built-in stable measuring coil,high temperature resistant armored cable,strong anti-interference for harsh industrial environment.

Feature:EPRO PR6423 series 8mm probe with 4m armored cable,high measuring precision,long cable version for long distance wiring. Common faults:cable breakage,coil aging,Lemo connector corrosion. Confirm full model and matched preamplifier before replacement.

Diagnostic:Sensor failure causes abnormal gap voltage,TSI channel alarm,losing shaft vibration and displacement monitoring.

Built‑in function

PR6423/014-040 eddy current probe collects shaft vibration and displacement data for rotating machinery protection,widely used in power plant TSI spare replacement.

Product Brief

PR6423/014-040 belongs to EPRO eddy current sensor spare parts family,8mm probe with 4m armored cable,needs to be used with CON021 preamplifier. Verify preamplifier and TSI card compatibility before ordering. Check cable insulation and probe coil function during commissioning. Widely applied for steam turbine,compressor and generator condition monitoring. ESD anti‑static protection shall be followed during installation.
