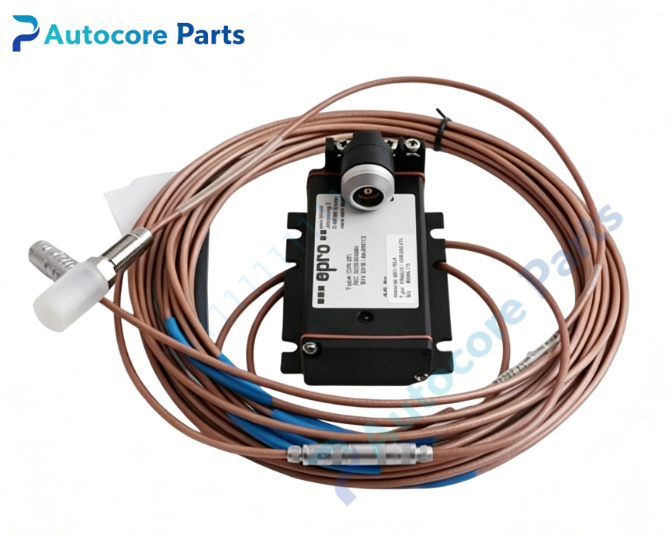

EPRO PR6423/10R-030-CN + CON021 Eddy Current Probe Kit

Technical Specifications

Model:PR6423/10R-030-CN + CON021

Brand:EPRO(Emerson)

Probe tip diameter:8mm

Cable length:0.3m

Mounting type:Reverse mounting(10R suffix)

Measurement principle:Non-contact eddy current

Linear measuring range:±1mm

Sensitivity:8V/mm

Frequency response:0~10kHz

Probe thread:M10×1

Probe operating temperature:-35~+180℃

Probe protection:IP65

Suffix CN:China domestic calibration version

Preamplifier model:CON021

Preamplifier power supply:-24VDC(-18~-30VDC)

Preamplifier output:-4~-20V composite voltage signal

Preamplifier protection:IP20

Total weight:0.4kg

Certification:CE

System compatibility:Matches EPRO MMS6000 TSI monitoring system,used for steam turbine,compressor and generator shaft radial vibration and axial displacement measurement.

Function:Non-contact real-time detection of rotating shaft vibration and axial displacement.Convert gap variation between probe and metal shaft into weak coil signal,send signal to CON021 preamplifier for demodulation and amplification,output composite voltage signal for TSI monitoring module to execute alarm and protection interlock.

Installation:Probe reverse thread mounting on bearing housing,adjust air gap within ±1mm linear range. Lemo coaxial connector links probe and CON021;CON021 DIN rail mounted in cabinet,wiring for -24V power and signal output.

Interface:

‑Stainless steel reverse threaded probe head

‑0.3m armored PTFE integrated cable

‑Lemo coaxial connector

‑CON021 screw terminals for -24VDC power and signal output

Circuit feature:Built-in stable measuring coil,high temperature resistant armored cable;CON021 integrated signal conditioning circuit,with open/short circuit and reverse polarity protection,strong anti-interference.

Feature:EPRO complete reverse installation measuring chain,short 0.3m armored cable,CN domestic calibrated version,with CON021 preamplifier.Suitable for narrow bearing housing installation space. Common faults:cable damage,coil aging,Lemo connector corrosion. Confirm full complete model before replacement.

Diagnostic:Sensor chain failure causes abnormal gap voltage,TSI channel alarm,losing shaft vibration and displacement monitoring.

Built‑in function

PR6423/10R-030-CN+CON021 eddy current sensor assembly collects shaft vibration and displacement data for rotating machinery protection,widely used for power plant TSI spare replacement.

Product Brief

PR6423/10R-030-CN+CON021 belongs to EPRO eddy current sensor spare parts family,complete measuring set including reverse mount probe and CON021 preamplifier. Verify TSI system compatibility before ordering. Check cable insulation,probe coil and preamplifier output function during commissioning. Widely applied for steam turbine,compressor and generator condition monitoring. ESD anti‑static protection shall be followed during installation.
