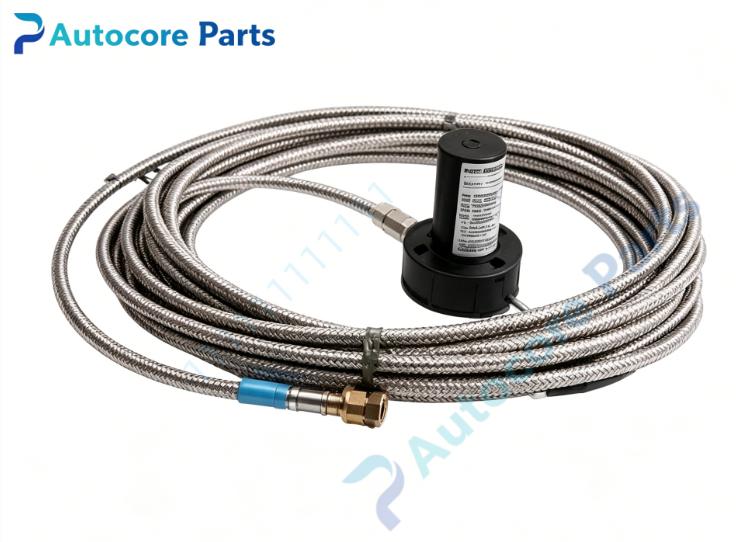

EPRO PR9268/301-100 Vibration Velocity Sensor

Technical Specifications

Model:PR9268/301-100

Brand:EPRO(Emerson)

Measurement principle:Electrodynamic,self-powered,no external power needed

Sensitivity:28.5 mV/mm/s

Frequency range:4~1000Hz

Natural frequency:4.5Hz

Max continuous acceleration:10g,intermittent 20g

Transverse acceleration:≤2g

Cable:5m armored PTFE integrated cable

Connector:Harting heavy duty connector

Mounting direction:Horizontal installation,allow ±10° deviation

Housing:Al-Mg-Si alloy

Protection class:IP55

Operating temperature:-20~+100℃

Relative humidity:0~100% non-condensing

Weight:0.9kg

Certification:CE,API670 compliant

System compatibility:Matches EPRO MMS6000 TSI rack system,works with MMS3120 / MMS6220 monitor modules,for steam turbine,compressor,fan and pump bearing housing horizontal absolute vibration monitoring.

Function:Electrodynamic velocity sensor,directly detect bearing housing horizontal absolute vibration.Convert mechanical vibration into analog AC voltage signal,transmit signal to TSI monitor for vibration amplitude calculation,alarm and machinery fault diagnosis.

Installation:Horizontal mounting on bearing housing surface.Connect armored signal cable Harting plug to MMS series vibration monitoring module terminal.

Interface:

‑Stainless steel armored 5m PTFE integrated cable

‑Harting heavy duty connector for signal output

‑Internal moving coil measuring element

Circuit feature:Built-in moving coil structure,no external power supply required,good low-frequency response,shock and oil resistant for harsh industrial site.

Feature:EPRO PR9268 series absolute vibration sensor,/30=horizontal mount,1=5m armored cable,-100=Harting connector.Used for casing horizontal vibration measurement. Common faults:cable armor damage,internal coil fracture,connector pin corrosion. Confirm mounting direction before replacement.

Diagnostic:Sensor fault causes missing vibration signal,loss of bearing vibration reading,trigger TSI vibration alarm.

Built‑in function

PR9268/301-100 measures bearing housing horizontal absolute vibration for rotating machinery protection,widely used for power plant TSI spare replacement.

Product Brief

PR9268/301-100 belongs to EPRO electrodynamic velocity sensor family,horizontal mount 5m armored cable vibration probe with Harting connector. Verify mounting orientation and monitor module compatibility before ordering. Check coil resistance and waveform output during commissioning. Widely applied for steam turbine,compressor,fan and pump condition monitoring. ESD anti‑static protection shall be followed during installation.
