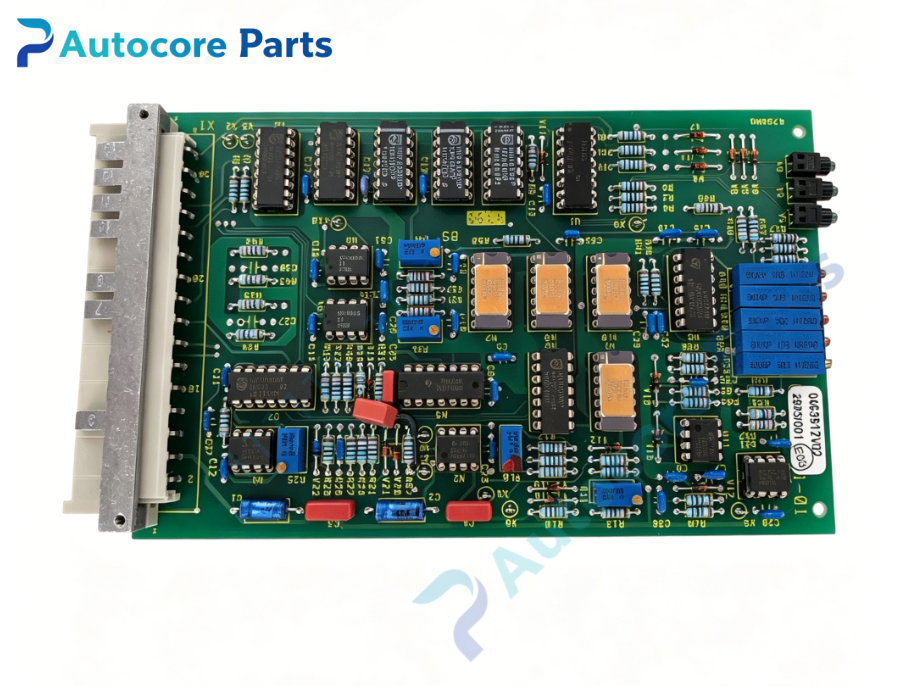

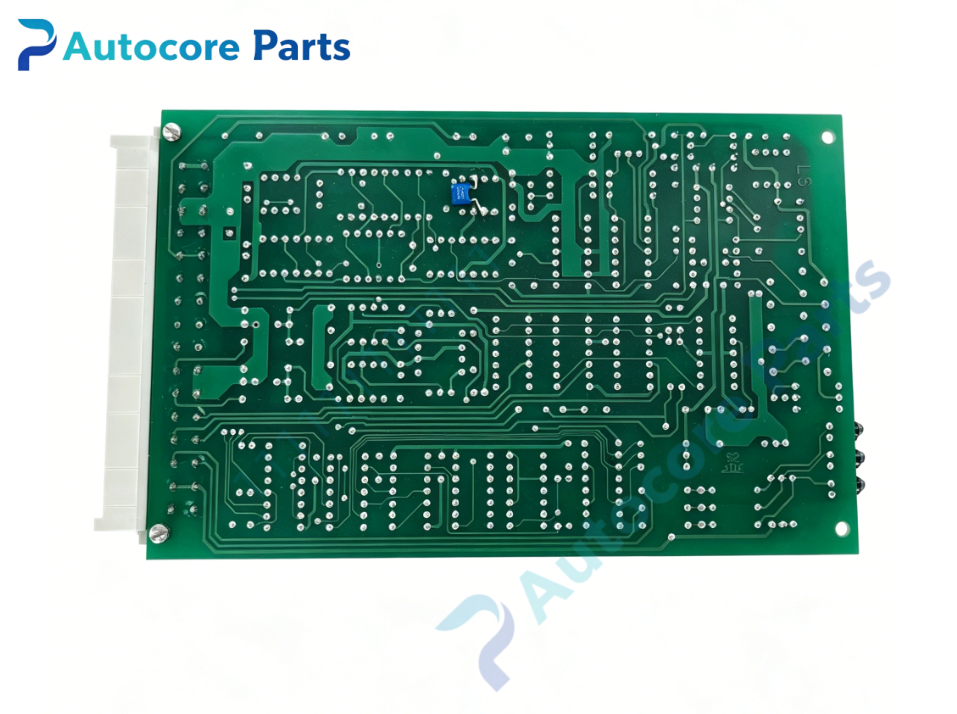

Huttinger D40-864-0 RF Control Board

Technical Specifications

Model：D40-864-0 Brand：Huttinger Product Type: RF generator control PCB board

Module Feature

Huttinger D40-864-0 is precision printed circuit board designed for Huttinger RF power supply system. It cooperates with Huttinger TIG series RF generator to realize RF signal sampling and power regulation. It helps maintain normal plasma status and reduce system failure rate. Widely applied in semiconductor PVD, CVD and plasma etching vacuum equipment. Working principle: RF signal processing and control Application frequency:13.56MHz Onboard components: Signal chips, electronic circuits, connecting terminals

LED indicators

Not equipped

Hardware self-diagnosis

Continuity test, insulation resistance test, signal waveform inspection

Programming software

Huttinger service software for parameter setup and fault log reading

Electrical Parameters

Working voltage: 24VDC auxiliary power Application: Matched with Huttinger TIG series RF generator

Mechanical & Structure

Mounting: Installed inside RF generator cabinet Protection class: IP20

Environmental

Operating temperature:10℃ ~ +45℃ Ambient humidity:5~85% non-condensing Certification: CE Status: Huttinger RF control PCB board

System compatibility

D40-864-0 is compatible with Huttinger TIG series RF generator and matching network for semiconductor vacuum plasma processing equipment.

Function

D40-864-0 is RF control PCB board manufactured by Huttinger. It samples RF power and reflected power signals, controls internal amplifier circuit for stable RF power delivery. Anti-high frequency interference design adapts to high electromagnetic environment inside RF cabinet. It is essential spare for RF generator maintenance.

Installation

Follow lockout/tagout safety procedure before installation. Cut off all power and discharge high voltage components. Open RF generator cabinet, replace the old PCB board. Check wiring terminals and insulation clearance. Close cabinet, restore power, run RF output test and alarm inspection.

Interface

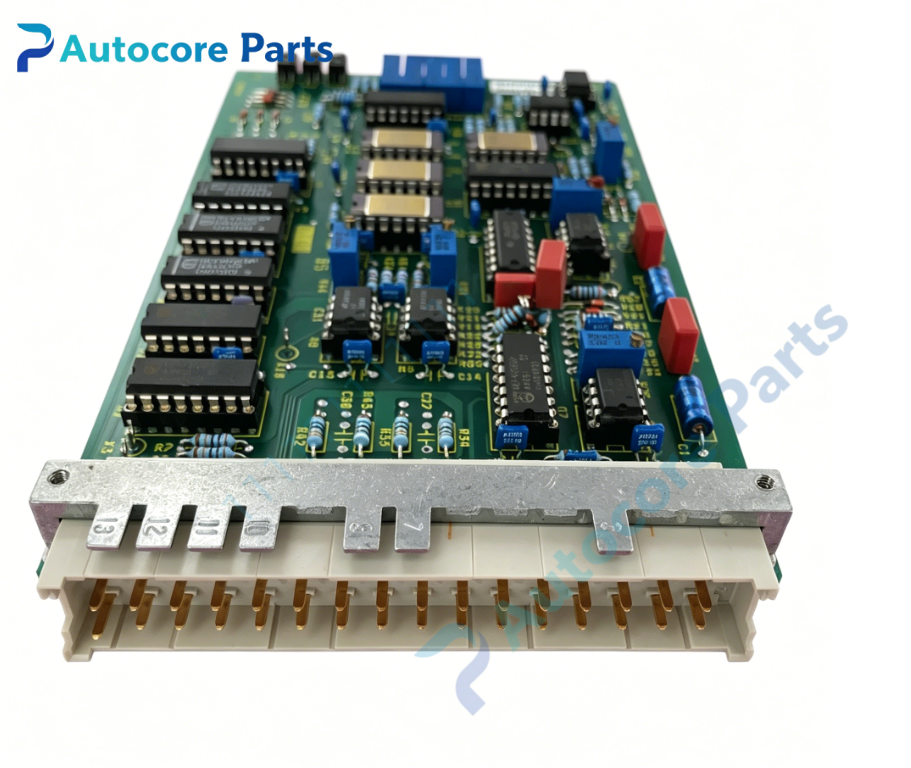

Signal connecting terminals, fixed mounting holes, no LED indicators on D40-864-0.

Diagnostic

No RF output: Damaged PCB board or loose signal wiring. Unstable RF power: Board component aging or signal sampling failure. Interlock alarm: Wrong board version or communication abnormality.

Product Brief

D40-864-0 Huttinger RF generator control PCB board,matched with TIG series RF generator,used for semiconductor vacuum plasma coating and etching equipment maintenance,RF PCB spare part.
