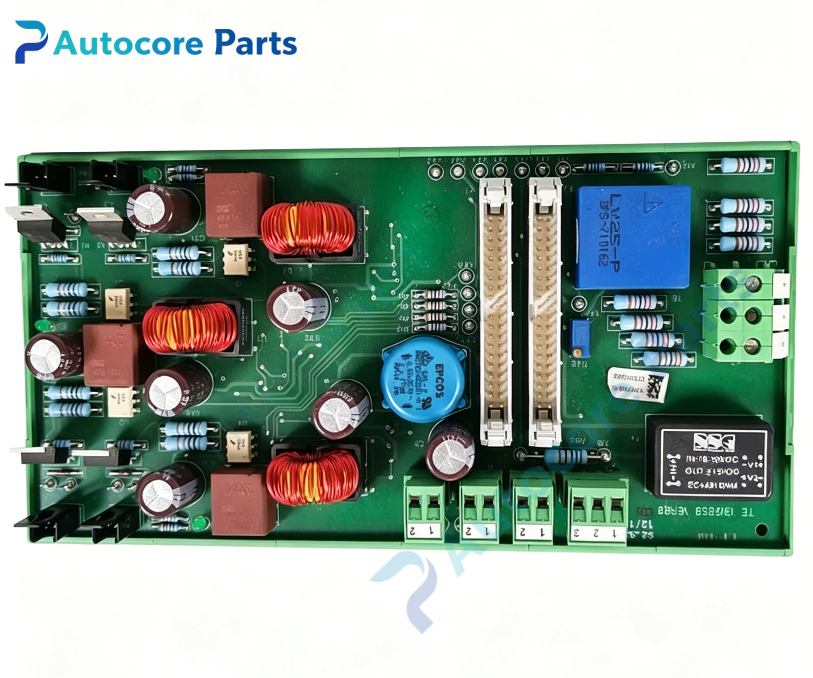

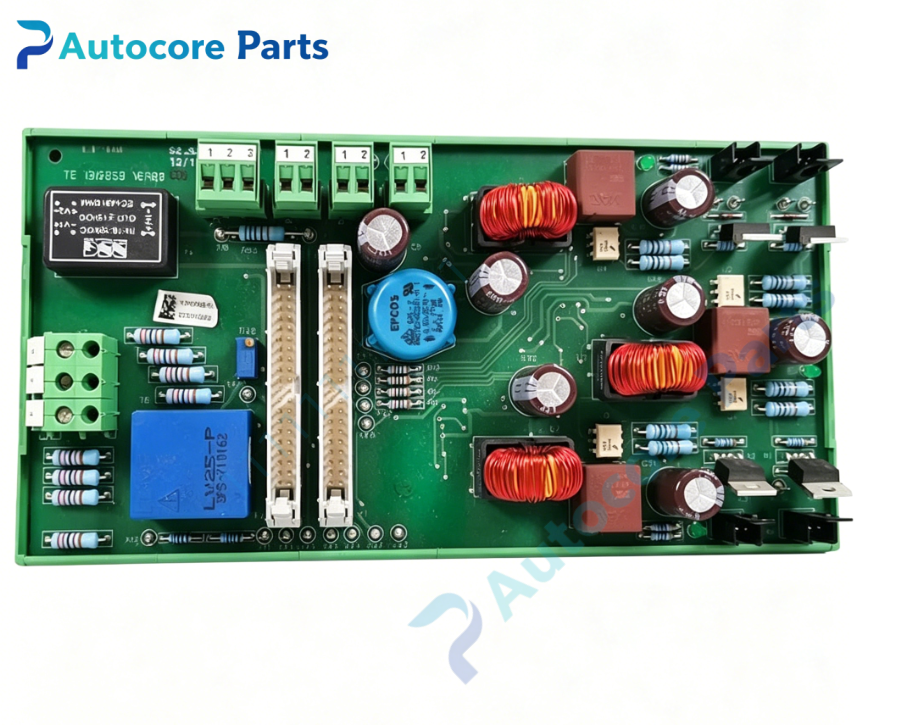

Huttinger TE1312859 Control Board

Technical Specifications

Model：TE1312859 Brand：Huttinger Product Type: RF generator digital control board

Module Feature

Huttinger TE1312859 is high reliability digital control board for Huttinger TIG series RF power supply. It performs RF power closed-loop regulation, forward/reflected power sampling, safety interlock processing and host communication. It works cooperatively with RF amplifier and protection modules. Widely applied in semiconductor PVD, CVD and plasma etching vacuum equipment. Working principle: Digital signal control Application frequency:13.56MHz Onboard components: Microprocessor, signal sampling circuit, communication chip, multi-pin connectors

LED indicators

Not equipped

Hardware self-diagnosis

Continuity test, insulation resistance test, signal waveform inspection, communication port test

Programming software

Huttinger service software for parameter configuration and fault log reading

Electrical Parameters

Working voltage:24VDC auxiliary power Application: Matched with Huttinger TIG series RF generator

Mechanical & Structure

Mounting: Installed inside RF generator cabinet Protection class: IP20

Environmental

Operating temperature:10℃ ~ +45℃ Ambient humidity:5~85% non-condensing Certification: CE Status: Huttinger control board

System compatibility

TE1312859 is compatible with Huttinger TIG series RF generator and matching network for semiconductor vacuum plasma processing equipment.

Function

TE1312859 is core control board manufactured by Huttinger. It samples forward and reflected RF power signals and implements closed-loop power regulation for plasma process. It handles safety interlock and remote recipe communication. Anti high-frequency interference design adapts to harsh electromagnetic environment inside RF cabinet. It is critical spare part for TIG RF generator overhaul.

Installation

Follow lockout/tagout safety procedure before installation. Cut off all power and discharge high voltage components. Open RF generator cabinet, replace the old control board. Check connector terminals and insulation clearance. Close cabinet, restore power, run communication and RF power test.

Interface

Multi-pin backplane connectors, fixed mounting holes, no LED indicators on TE1312859.

Diagnostic

No RF power regulation: Control board fault or communication failure. Interlock alarm trigger: Wrong logic parameter or damaged sampling circuit. Loss of remote communication: Damaged communication port.

Product Brief

TE1312859 Huttinger RF generator control board,matched with TIG series RF generator,used for semiconductor vacuum plasma coating and etching equipment maintenance,control board spare part.
