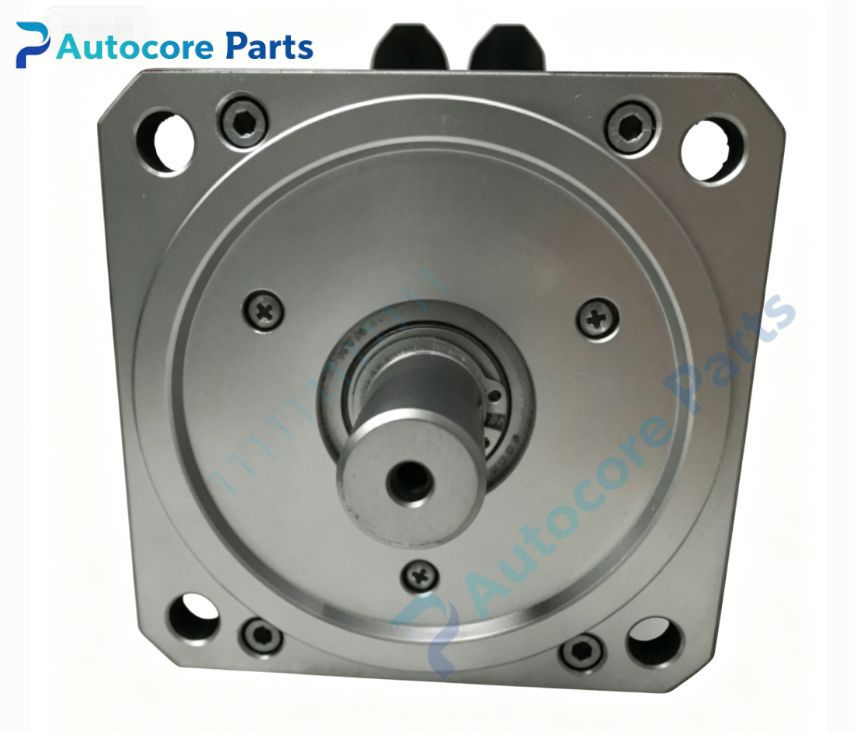

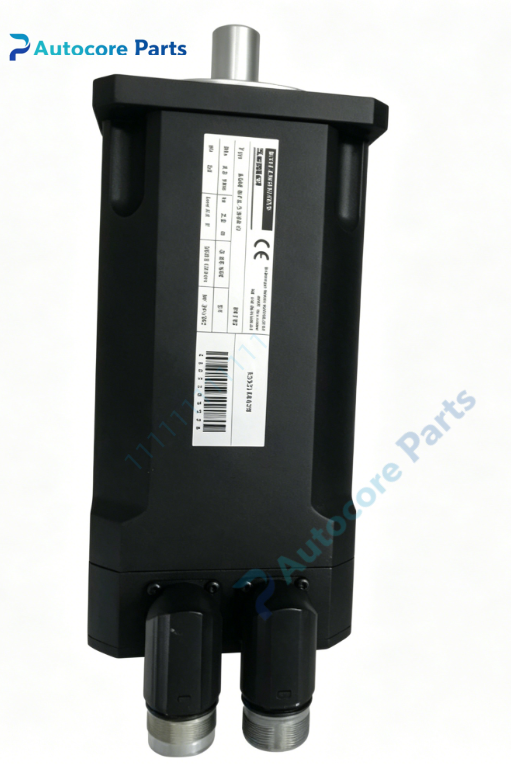

Kollmorgen 6SM57S-3.000 Synchronous Servo Motor Spare Part

Technical Specifications

Model:6SM57S-3.000

Brand:Kollmorgen

Part No:6SM57S-3.000

Product type:AC synchronous servo motor

Rated speed:3000 rpm

Rated power:0.94 kW

Rated torque:3.0 Nm

Input voltage:400V AC

Dimension:210mm95mm135mm

Weight:6.2kg

Feedback:resolver feedback

Mounting:IM B5 flange mounting

Protection class:IP65

Operating temperature:0~40℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE

System compatibility

6SM57S-3.000 belongs to Kollmorgen 6SM servo motor family,matched with Kollmorgen SERVOSTAR series servo drives,widely used in machine tools,packaging machinery,textile equipment and material handling systems.This is a legacy spare part for industrial equipment maintenance replacement.

Function

6SM57S-3.000 is high-performance permanent magnet synchronous servo motor.It features compact frame and good continuous torque output,suitable for medium load positioning applications.Resolver feeds back real-time rotor position to servo amplifier to realize closed-loop speed and position control.

Installation

Install 6SM57S-3.000 via flange mounting.Align coupling accurately,connect power cable and resolver feedback cable.Tighten terminals and check cable shielding before power-on commissioning.

Interface

‑Power cable connector

‑Resolver feedback connector

‑Flange mounting interface

‑Shaft with keyway

‑Shield grounding terminal

Circuit feature

Permanent magnet rotor structure,low loss stator winding,resolver position detection circuit,strong overload capacity,adapt to medium-load frequent start-stop working condition.

Feature

6SM57S-3.000 is obsolete Kollmorgen spare part.Typical faults:bearing wear,winding insulation aging,resolver signal failure,shaft damage,connector corrosion.Inspect winding resistance,resolver signal and bearing noise before replacement.

Diagnostic

When motor fails,motor overheat,abnormal mechanical noise,position deviation,resolver signal loss,overcurrent alarm,axis cannot run normally.

Built‑in function:Medium torque dynamic output,rotary position detection,axis speed and position control,used as Kollmorgen machine tool servo motor spare replacement.

Product Brief

6SM57S-3.000 is Kollmorgen 6SM series synchronous servo motor with resolver feedback,suitable for medium-load industrial positioning.Match with SERVOSTAR servo drives.Verify feedback type and power rating before ordering.ESD protection required during handling and installation.
