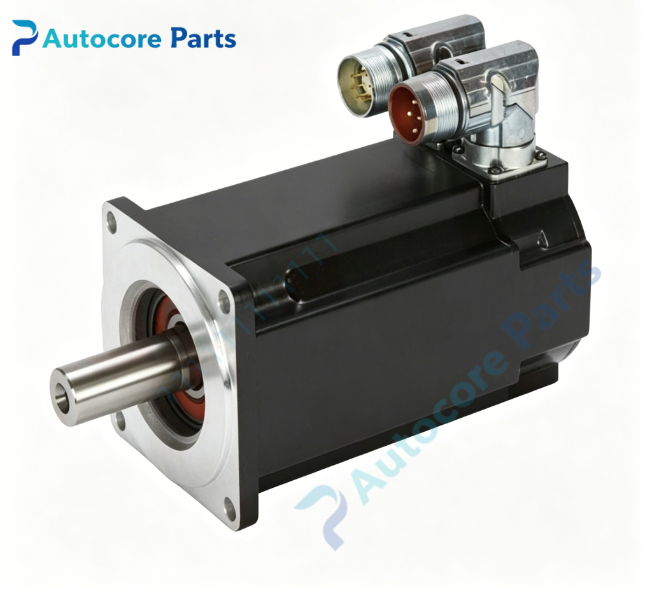

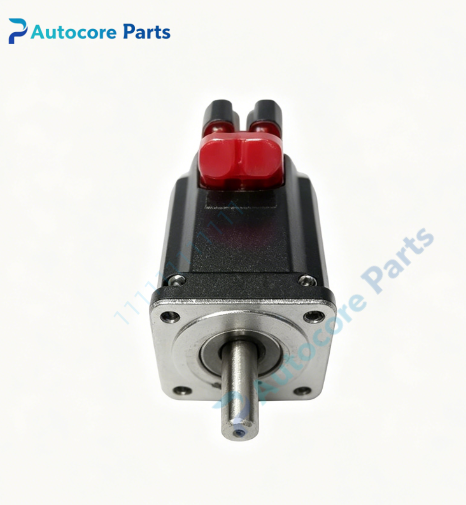

Kollmorgen AKM52K-CC5NR-01 Servo Motor Spare Part

Technical Specifications

Model:AKM52K-CC5NR-01

Brand:Kollmorgen

Part No:AKM52K-CC5NR-01

Product type:Permanent magnet AC synchronous servo motor

Rated power:2.04kW

Rated speed:3000rpm

Continuous torque:6.8Nm

Peak torque:21.9Nm

Max DC bus voltage:640V DC

Protection class:IP65

Dimension:340mm108mm130mm

Weight:10.40kg

Feedback interface:Comcoder 2048PPR encoder

Mounting:108mm IEC flange mounting

Operating temperature:0~40℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE,UL

System compatibility

AKM52K-CC5NR-01 belongs to Kollmorgen AKM servo motor family,matched with Kollmorgen AKD series servo drives,widely used in machine tools,packaging machinery,material handling and medium-load precision multi-axis automation systems.This is industrial spare part for equipment overhaul and maintenance.

Function

AKM52K-CC5NR-01 is AKM high-performance synchronous servo motor.It features ultra-low cogging torque and smooth rotation performance.Comcoder 2048PPR encoder delivers high-resolution position signal,stable signal transmission.High energy density rare-earth permanent magnet rotor delivers excellent dynamic response,this model is with built-in 24V DC holding brake,keyway shaft.

Installation

Install AKM52K-CC5NR-01 via IEC flange mounting on machine fixture.Connect motor power cable,Comcoder encoder cable and brake power cable.Tighten mounting bolts and connector locking rings,separate power and signal wiring,complete shielding grounding before power-on test.

Interface

‑3 phase motor power connector

‑Comcoder encoder feedback connector

‑24V DC brake terminal

‑Shield grounding terminal

Feature

AKM52K-CC5NR-01 Kollmorgen servo motor.Typical faults:winding insulation aging,encoder element damage,bearing wear,brake failure,connector pin oxidation.Test winding resistance,insulation resistance and feedback signal before replacement.

Diagnostic

Motor faults will trigger overload,overcurrent or feedback loss alarm;motor jitter,position tracking error,brake release failure,motor fails to start,intermittent positioning deviation.

Built‑in function:Convert electrical command into precise mechanical torque,realize high accuracy speed and position closed-loop control,as Kollmorgen AKM series servo motor spare replacement.

Product Brief

AKM52K-CC5NR-01 is Kollmorgen AKM 2.04kW servo motor,108mm flange,Comcoder 2048PPR encoder,with 24V holding brake,key shaft,compatible with AKD servo drives for medium-load automation equipment maintenance.Confirm feedback type and shaft specification before ordering.ESD protection required during handling and installation.
