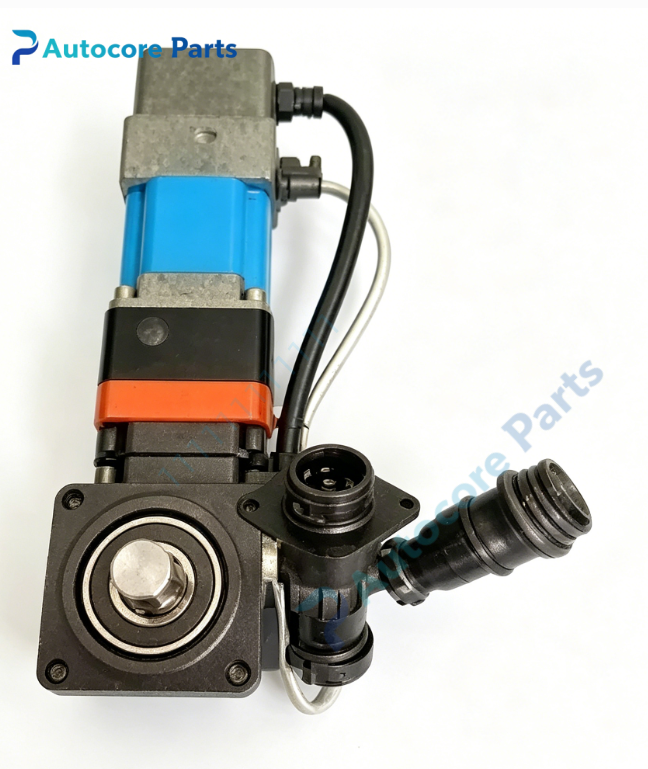

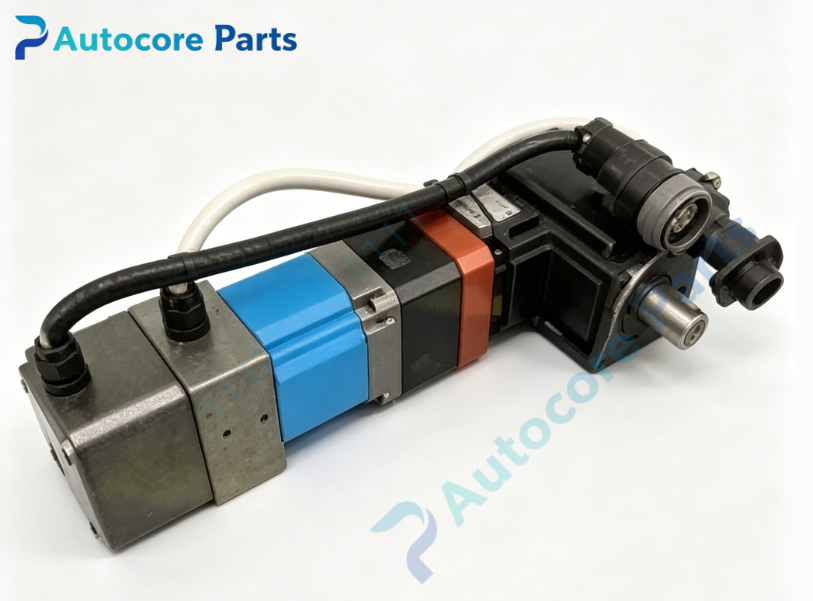

Kollmorgen H-234-H-0802 Silverline Brushless Servo Motor Spare Part

Technical Specifications

Model:H-234-H-0802

Brand:Kollmorgen

Part No:H-234-H-0802

Product type:Brushless permanent magnet servo motor

Rated speed:2200 rpm

Continuous torque:0.88 Nm

Peak torque:1.78 Nm

Input voltage:230V AC

Dimension:146mm90mm124mm

Weight:2.7kg

Feedback:Resolver

Mounting:NEMA34 flange,IM B5

Protection class:IP65

Operating temperature:0~40℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE

System compatibility

H-234-H-0802 belongs to Kollmorgen Silverline brushless servo motor family,matched with Kollmorgen CR series / ServoStar CD servo drives,widely used in packaging machinery,cutting equipment,small machine tool axes and material handling systems.This is discontinued industrial spare part for equipment overhaul and maintenance.

Function

H-234-H-0802 is Silverline series compact brushless servo motor.It features stable continuous torque and low cogging torque,suitable for medium load precision positioning applications.Resolver transmits rotor position signal to servo amplifier to realize closed-loop speed and position control.It adopts robust mechanical structure for long time continuous operation.

Installation

Install H-234-H-0802 via NEMA34 flange mounting.Align coupling accurately,connect motor power cable and resolver feedback cable.Fasten terminals,complete shielding and grounding inspection before power-on test.

Interface

‑Motor power connector

‑Resolver feedback connector

‑NEMA34 flange mounting interface

‑Shaft with keyway

‑Shield grounding terminal

Circuit feature

Permanent magnet rotor structure,low loss stator winding,resolver position detection,smooth torque output,strong shock resistance.

Feature

H-234-H-0802 is obsolete Kollmorgen spare part.Typical faults:bearing wear,winding insulation aging,resolver signal failure,shaft damage,connector corrosion.Inspect winding resistance,resolver signal and bearing noise before replacement.

Diagnostic

Motor faults will cause overheating,abnormal mechanical noise,position drift,resolver signal loss,axis cannot run normally.

Built‑in function:Convert electric energy into mechanical rotary power,rotary position detection,speed and position closed-loop execution,as Kollmorgen Silverline automation servo motor spare replacement.

Product Brief

H-234-H-0802 is Kollmorgen Silverline NEMA34 brushless servo motor with resolver feedback.Match with CR / ServoStar CD servo drives.Confirm torque,speed and feedback type before ordering.ESD protection required during handling and installation.
