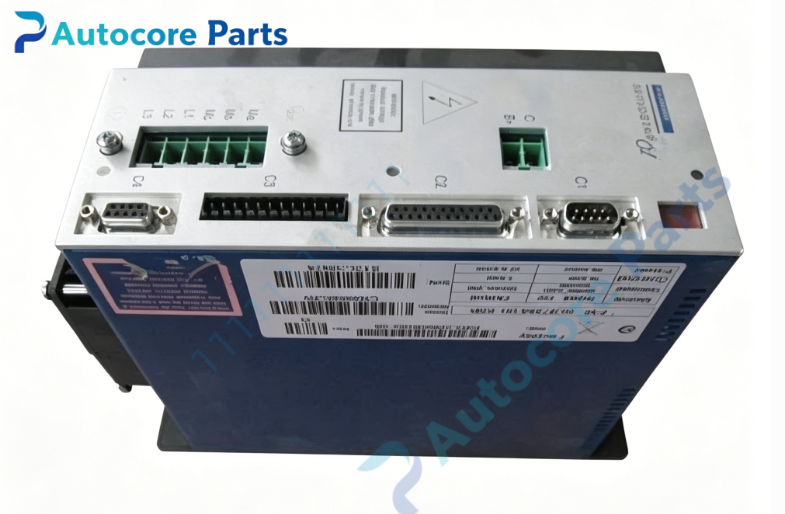

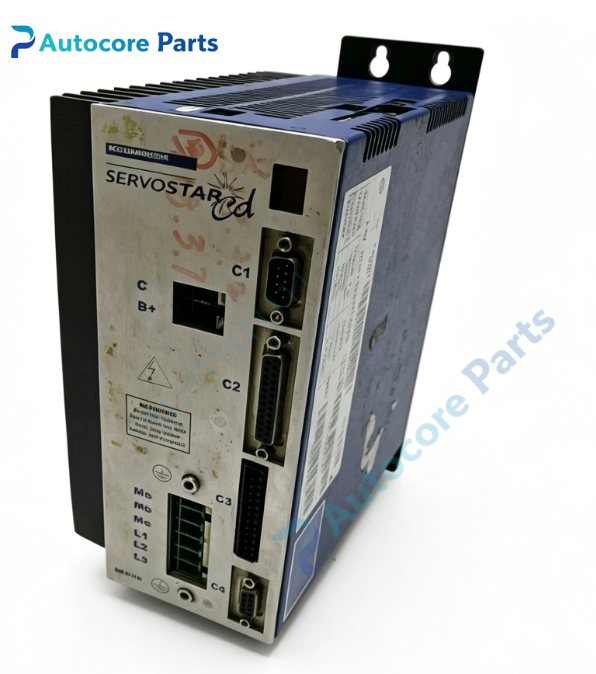

Kollmorgen PRD-JW60R00Z-06 Servo Drive Spare Part

Technical Specifications

Model:PRD-JW60R00Z-06

Brand:Kollmorgen

Part No:PRD-JW60R00Z-06

Product type:Digital servo amplifier

Input voltage:380/480V AC three phase

Continuous output current:6A

Peak output current:18A

Rated power:3.9kW

Dimension:330mm210mm250mm

Weight:12.8kg

Feedback interface:Resolver

Mounting:Cabinet rack mounting

Cooling:Built-in fan cooling

Protection class:IP20

Operating temperature:0~45℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE

System compatibility

PRD-JW60R00Z-06 belongs to Kollmorgen PRD / ServoStar CD series servo drive family,matched with Kollmorgen AKM and Silverline medium & large frame servo motors,widely used in heavy-duty CNC machine tools,cutting equipment and material handling systems.This is discontinued industrial spare part for equipment overhaul and maintenance.

Function

PRD-JW60R00Z-06 is high-power three-phase digital servo amplifier.It supports torque,speed and position control mode,accept ±10V analog command or step/direction signal.Resolver feedback realizes closed-loop motion control.Built-in overcurrent,overvoltage,undervoltage,overtemperature protection,parameter configuration and motor tuning can be completed through dedicated software.

Installation

Install PRD-JW60R00Z-06 inside electrical cabinet by rack mounting.Connect three-phase power wiring,motor power cable,resolver feedback cable and control signal wiring.Fasten terminals,complete shielding and grounding inspection before power-on test.

Interface

‑3 phase 380/480V AC power terminal

‑Motor power output terminal

‑Resolver feedback connector

‑±10V analog command / step direction port

‑Digital input and output terminal

‑RS232 service port

‑Shield grounding terminal

Circuit feature

Digital closed-loop control design,IGBT power stage,multi fault protection circuit,forced air cooling,strong load capacity and anti-interference performance.

Feature

PRD-JW60R00Z-06 is obsolete Kollmorgen spare part.Typical faults:IGBT module damage,electrolytic capacitor aging,resolver feedback circuit failure,fan failure,internal power supply breakdown,connector corrosion.Test DC bus voltage,output three-phase balance and resolver signal before replacement.

Diagnostic

Drive faults will trigger overcurrent,overvoltage,undervoltage or overtemperature alarm;motor no action,position drift,axis abnormal running.

Built‑in function:Command signal processing,motor power amplification,speed/torque/position closed-loop control,fault safety protection,as Kollmorgen legacy CNC machine tool servo drive spare replacement.

Product Brief

PRD-JW60R00Z-06 is Kollmorgen PRD series high power 380V servo amplifier,paired with AKM / Silverline servo motors for legacy CNC systems.Confirm power rating,feedback type and control signal before ordering.ESD protection required during handling and installation.
