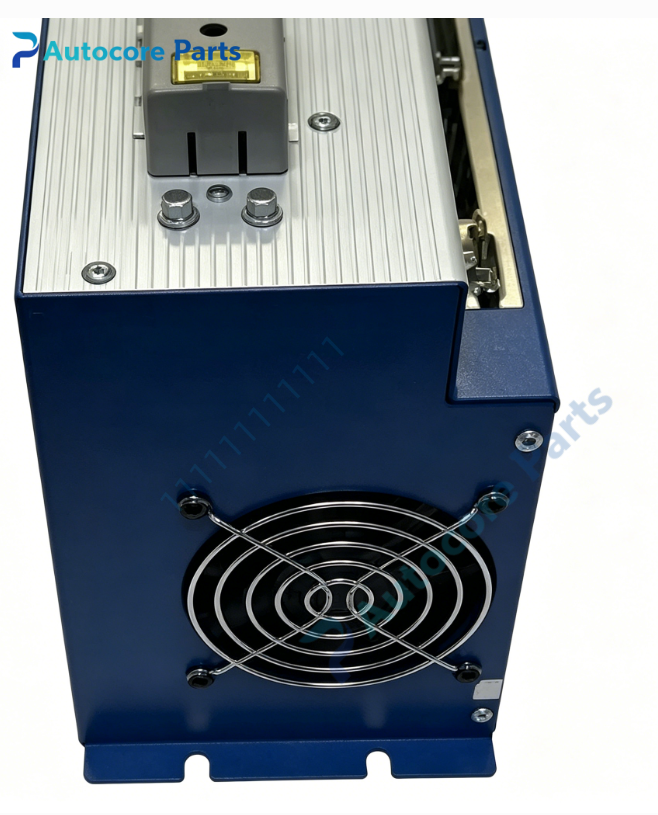

Kollmorgen SR20200-000000 Servo Drive Spare Part

Technical Specifications

Model:SR20200-000000

Brand:Kollmorgen

Part No:SR20200-000000

Product type:Digital servo amplifier

Input voltage:115/230V AC single phase

Continuous output current:20A RMS

Peak output current:60A

Dimension:320mm210mm120mm

Weight:6.4kg

Feedback interface:Resolver, incremental encoder

Mounting:Cabinet panel mounting

Cooling:Built-in fan cooling

Protection class:IP20

Operating temperature:0~40℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE,UL

System compatibility

SR20200-000000 belongs to Kollmorgen ServoStar servo drive family,matched with Kollmorgen AKM and Goldline series medium & large frame servo motors,widely used in machine tool axes,material handling,packaging machinery and metal processing systems.This is discontinued industrial spare part for equipment overhaul and maintenance.

Function

SR20200-000000 is high-power single-phase digital servo amplifier.It supports torque,speed and position control mode,accept ±10V analog command or step/direction signal.Resolver or incremental encoder feedback realizes high precision closed-loop motion control.Built-in regenerative braking,programmable electronic gearing and status diagnostics;parameter configuration and motor tuning can be completed through dedicated software.

Installation

Install SR20200-000000 on cabinet panel by panel mounting.Connect single-phase power wiring,motor power cable,feedback cable and control signal wiring.Fasten terminals,complete shielding and grounding inspection before power-on test.

Interface

‑115/230V AC power terminal

‑Motor power output terminal

‑Resolver / incremental encoder feedback connector

‑±10V analog command / step direction port

‑Digital input and output terminal

‑RS232 communication port

‑Shield grounding terminal

Circuit feature

Digital closed-loop control design,four-quadrant power stage,integrated regenerative braking circuit,multi fault protection circuit,forced air cooling,strong overload capacity and good anti-interference performance.

Feature

SR20200-000000 is obsolete Kollmorgen spare part.Typical faults:power device damage,electrolytic capacitor aging,feedback circuit failure,cooling fan failure,internal auxiliary power breakdown,connector corrosion.Test DC bus voltage,output three-phase balance and feedback signal before replacement.

Diagnostic

Drive faults will trigger overcurrent,overvoltage,undervoltage or overtemperature alarm;motor no action,position drift,axis abnormal vibration.

Built‑in function:Command signal processing,motor power amplification,speed/torque/position closed-loop control,fault safety protection,as Kollmorgen legacy automation servo drive spare replacement.

Product Brief

SR20200-000000 is Kollmorgen ServoStar high current single phase servo amplifier,paired with AKM / Goldline servo motors for heavy-duty precision positioning automation systems.Confirm power rating,feedback type and control signal before ordering.ESD protection required during handling and installation.
