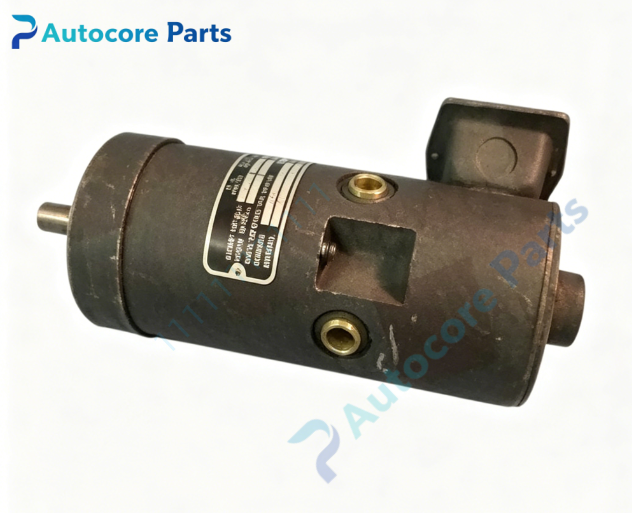

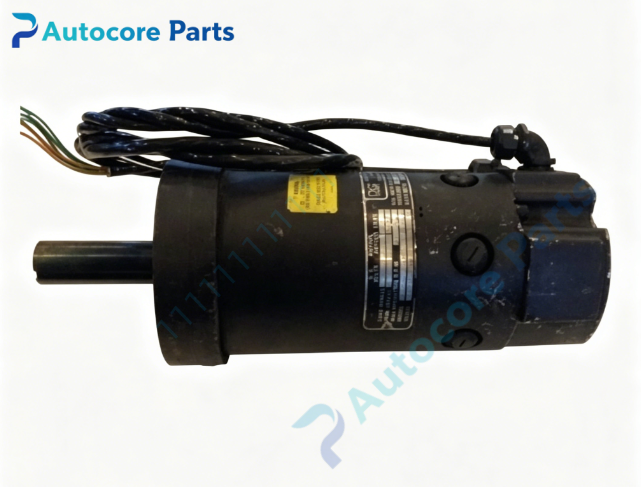

Kollmorgen TT-4205-4017-C Direct Drive DC Servo Motor Spare Part

Technical Specifications

Model:TT-4205-4017-C

Brand:Kollmorgen

Part No:TT-4205-4017-C

Product type:Permanent Magnet Direct Drive DC Servo Motor

Rated power:750W

Max speed:2600rpm

Continuous torque:18.2Nm

Peak torque:51.5Nm

Rated voltage:24V DC

Protection class:IP65

Dimension:210mm108mm108mm

Weight:8.60kg

Feedback interface:Built-in tachometer

Mounting:NEMA42 flange mounting

Cooling method:Natural convection

Efficiency:94%

Operating temperature:0~40℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE,UL

System compatibility

TT-4205-4017-C belongs to Kollmorgen Inland direct drive motor family,matched with Kollmorgen DC servo drives,widely used in machine tools,packaging machinery,material handling and heavy-duty precision automation systems.This is industrial spare part for equipment overhaul and maintenance.

Function

TT-4205-4017-C is high-performance direct drive DC servo motor.It features low rotor inertia,fast dynamic response and smooth running performance.Built-in tachometer provides stable speed feedback signal.High energy density permanent magnet rotor delivers excellent responsiveness,this model is without built-in holding brake,smooth shaft.

Installation

Install TT-4205-4017-C via NEMA42 flange mounting on machine fixture.Connect motor power cable and tachometer feedback cable.Tighten mounting bolts and connector locking rings,separate power and signal wiring,complete shielding grounding before power-on test.

Interface

‑DC motor power connector

‑Tachometer feedback connector

‑Shield grounding terminal

Feature

TT-4205-4017-C Kollmorgen DC servo motor.Typical faults:winding insulation aging,tachometer element damage,bearing wear,connector pin oxidation.Test winding resistance,insulation resistance and feedback signal before replacement.

Diagnostic

Motor faults will trigger overload,overcurrent or feedback loss alarm;motor jitter,speed fluctuation,motor fails to start,intermittent positioning deviation.

Built‑in function:Convert electrical command into precise mechanical torque,realize high accuracy speed closed-loop control,as Kollmorgen Inland series servo motor spare replacement.

Product Brief

TT-4205-4017-C is Kollmorgen Inland 750W direct drive DC servo motor,NEMA42 flange,with tachometer feedback,without holding brake,smooth shaft,compatible with Kollmorgen DC servo drives for heavy-duty precision automation equipment maintenance.Confirm feedback type and shaft specification before ordering.ESD protection required during handling and installation.
