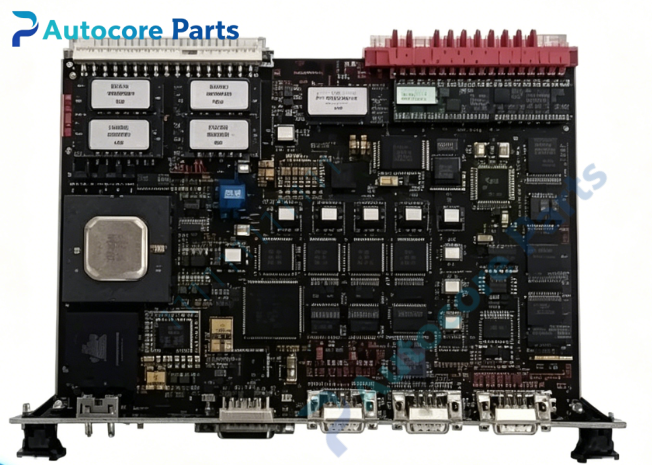

MOOG 500001100LG Machinery Protection Control Module

Technical Specifications

Model:500001100LG

Brand:MOOG

Product type:Machinery Protection Control Module

Power supply:24V DC

Communication interface:Digital bus

Function:Vibration,displacement and speed signal acquisition,data processing,alarm and trip interlock output,equipment condition monitoring

Dimension:245mm160mm35mm

Weight:1.4kg

Operating temperature:-20℃ ~ +70℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:10~90% non-condensing

Certification:CE

System compatibility

500001100LG belongs to MOOG machinery protection shturl.cc is widely used in steam turbine,generator and other rotating machinery monitoring systems to realize safety interlock protection.It is spare part for legacy power plant control equipment overhaul.

Function

500001100LG is dedicated control module for mechanical protection.It real-timely collects vibration,rotational speed and shaft displacement signals of rotating units,analyzes operating status,outputs alarm or trip signals to avoid mechanical damage.

Installation

Install module in standard rack chassis,tighten mounting screws.Connect 24V DC power and signal bus wiring.Complete parameter configuration and function test before commissioning,check wiring tightness.Take anti-static protection during handling.

Interface

‑DC power terminal

‑Digital signal bus port

‑Sensor signal input & relay trip output terminal

‑Module identification label

Feature

MOOG high reliable machinery protection control module.Typical faults:power supply failure,communication interruption,signal acquisition anomaly,internal component aging.Inspect power voltage and bus communication status before replacement.

Diagnostic

Fault phenomenon:no power-up,communication offline,false alarm or no trip action.Check DC power supply,bus cable,terminal connection and module firmware status.

Product Brief

500001100LG is MOOG machinery protection control module,for rotating machinery real-time monitoring and safety interlock protection,applied to power plant equipment renovation and maintenance.Mainly used for replacement of industrial machinery protection control components.Anti-static protection must be followed during handling.
