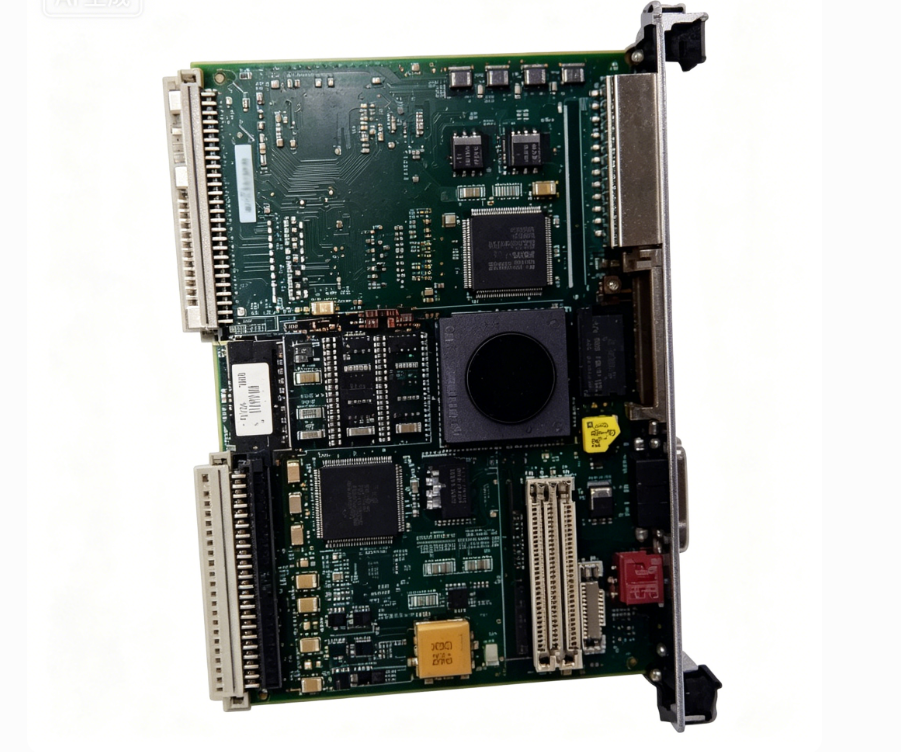

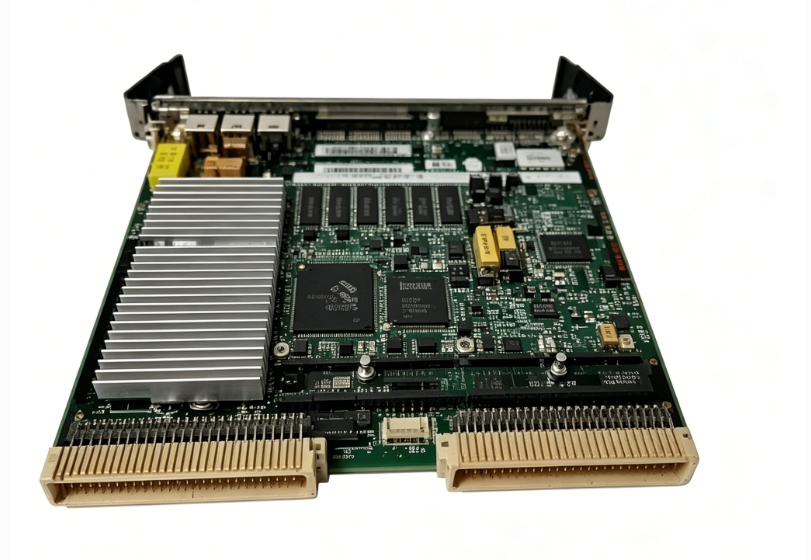

Motorola MVME162-010 VMEbus Single Board Computer

Technical Specifications

Model:MVME162-010

Brand:Motorola

Part No:MVME162-010

Product type:VMEbus Single Board Computer

CPU:MC68LC040

Clock:25MHz

Cache:8KB internal cache,with MMU,no FPU

Memory:4MB parity DRAM,512KB battery-backed SRAM,8KB NVRAM with RTC clock

Bus:VMEbus A32/D32,A24/D16,A16

Form Factor:6U Eurocard

Power supply:+5V DC,typical 18W

Dimension:233mm160mm20mm

Weight:0.86kg

Interface:2×RS232 serial port,VME backplane connector,watchdog timer,RTC clock

Operating temperature:0℃ ~ +70℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5~90% non-condensing

Certification:CE

System compatibility

MVME162-010 belongs to Motorola MVME162 VME series single board computer.It can work with standard VME backplane and matched VME I/O modules,widely used in old industrial control,test measurement and semiconductor equipment.It is spare part for legacy equipment overhaul.

Function

MVME162-010 is a 6U VME single board computer based on MC68LC040 processor,without floating point unit.It supports embedded real-time operating system such as VxWorks and RTEMS,performs control logic operation and field data acquisition.It communicates with peripheral modules via VME bus and serial ports.It removes IndustryPack expansion slots compared with MVME162-002,onboard watchdog timer and RTC improve system stability.

Installation

Insert MVME162-010 into standard 6U VME chassis slot,lock the front panel.Fix the board,connect serial cable and VME backplane.Take ESD protection before power-on.

Interface

‑VME backplane connector

‑Dual RS232 serial port

‑Watchdog timer

‑RTC battery backup circuit

‑+5V power terminal

Feature

MVME162-010 classic industrial SBC.Typical faults:gold finger oxidation,RAM chip failure,serial transceiver damage,electrolytic capacitor aging,battery leakage.Clean gold finger and test memory before replacement.

Diagnostic

Fault phenomenon:no power on,boot failure,VME bus communication error,serial port no data output.Check VME backplane power supply,clean gold finger,test RAM and communication circuit.

Product Brief

MVME162-010 is Motorola 6U VME single board computer with MC68LC040 25MHz CPU,4MB DRAM and 512KB battery-backed SRAM.It is variant without IndustryPack,Ethernet and SCSI onboard.Mainly used for maintenance and replacement of old VME industrial control equipment.ESD protection must be followed during handling.
