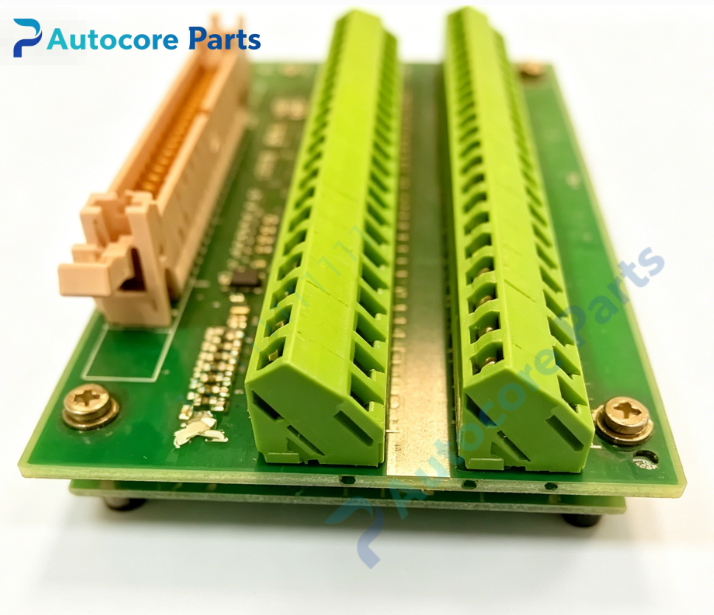

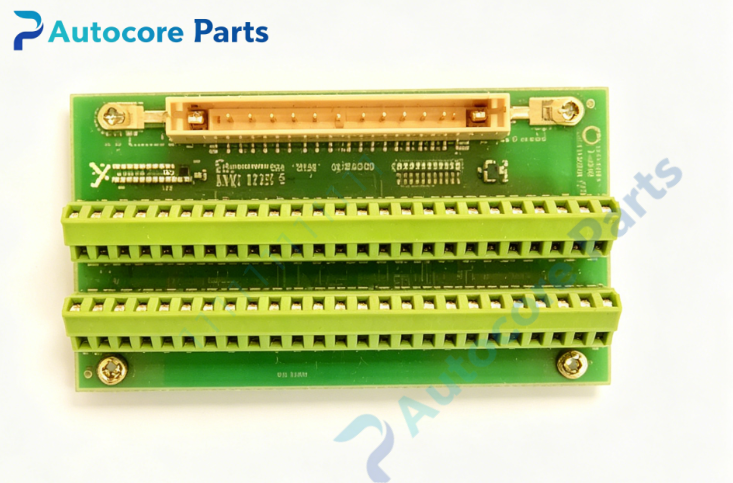

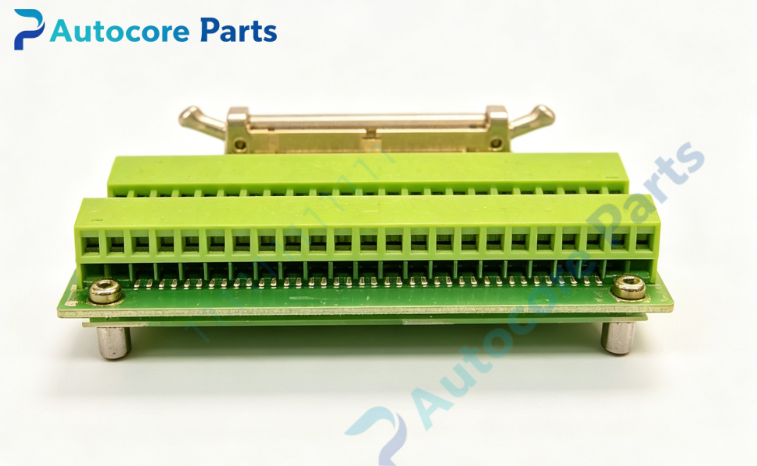

NI CB-50LP 50-Pin Screw Terminal Breakout Board

Technical Specifications

Model:CB-50LP

Brand:NI

Part No:777101-01

Product type:Unshielded 50-Pin I/O Breakout Terminal Board

Interface:50-pin male IDC header,50 screw terminals

Mounting:Desktop or custom panel mounting with metal standoffs

Wire range:28~16 AWG copper wire

Dimension:139.7mm88.9mm16mm

Weight:0.16kg

Operating temperature:0℃ ~ +70℃

Storage temperature:-55℃ ~ +125℃

Relative humidity:5~90% non-condensing

Certification:CE

System compatibility

CB-50LP belongs to NI low-cost LP series DAQ breakout boards.It is compatible with NI 50-pin multifunction DAQ devices,widely used in laboratory measurement,automated production test and industrial signal acquisition systems.It is spare part for legacy test equipment overhaul.

Function

CB-50LP is a passive unshielded breakout terminal board.It converts 50-pin IDC signals from DAQ hardware into screw terminals,simplifying wiring for analog input,analog output,digital I/O and counter/timer signals for general test systems.

Installation

Fix CB-50LP on desktop or custom panel via metal standoffs.Connect 50-pin ribbon cable to DAQ device,attach signal wires to screw terminals.Take ESD protection before wiring.

Interface

‑50-pin male IDC header

‑50 screw terminals

‑Metal mounting standoffs

Feature

CB-50LP classic NI low-cost DAQ breakout board.Typical faults:screw terminal loose,IDC connector pin oxidation,PCB trace damage.Inspect terminals and connector before replacement.

Diagnostic

Fault phenomenon:open circuit,intermittent signal disconnection.Check screw terminal tightness,IDC connector contact and PCB continuity.

Product Brief

CB-50LP is NI unshielded 50-pin IDC to screw terminal breakout board for panel/desktop mounting,matching NI 50-pin DAQ cards,suitable for analog,digital and counter signal wiring.Mainly used for maintenance and replacement of old industrial test and measurement equipment.ESD protection must be followed during handling.
