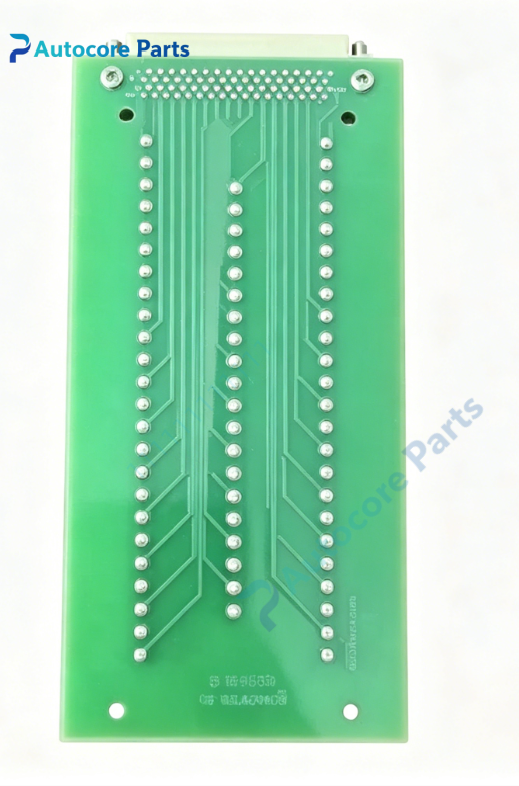

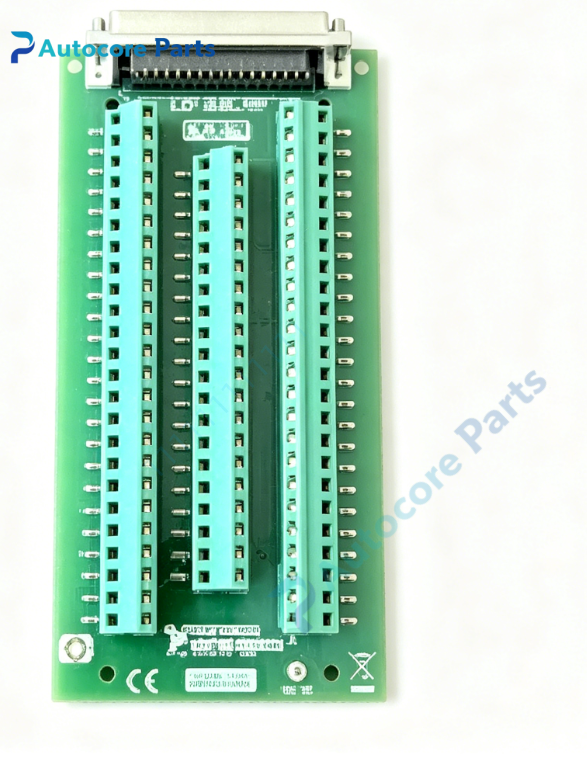

NI CB-68LPR 68-Pin Right Angle Screw Terminal Breakout Board

Technical Specifications

Model:CB-68LPR

Brand:NI

Part No:777145-02

Product type:Unshielded 68-Pin Right Angle I/O Breakout Terminal Board

Interface:68-pin male right-angle SCSI connector,68 screw terminals

Mounting:Desktop or custom panel mounting with metal standoffs

Wire range:30~12 AWG copper wire

Dimension:167.6mm76.2mm29.2mm

Weight:0.162kg

Operating temperature:0℃ ~ +70℃

Storage temperature:-55℃ ~ +125℃

Relative humidity:5~90% non-condensing

Certification:CE

System compatibility

CB-68LPR belongs to NI low-cost LP series DAQ breakout boards.It is compatible with NI E/M/S series 68-pin multifunction DAQ devices,widely used in laboratory measurement,automated production test and industrial signal acquisition systems.It is spare part for legacy test equipment overhaul.

Function

CB-68LPR is a passive unshielded breakout terminal board with right-angle 68-pin connector.It converts 68-pin SCSI signals from DAQ hardware into screw terminals,simplifying wiring for analog input,analog output,digital I/O and counter/timer signals for general test systems.The right-angle connector saves installation space.

Installation

Fix CB-68LPR on desktop or custom panel via metal standoffs.Connect 68-pin SCSI cable to DAQ device,attach signal wires to screw terminals.Take ESD protection before wiring.

Interface

‑68-pin male right-angle SCSI connector

‑68 screw terminals

‑Metal mounting standoffs

Feature

CB-68LPR classic NI low-cost DAQ breakout board.Typical faults:screw terminal loose,SCSI connector pin oxidation,PCB trace damage.Inspect terminals and connector before replacement.

Diagnostic

Fault phenomenon:open circuit,intermittent signal disconnection.Check screw terminal tightness,SCSI connector contact and PCB continuity.

Product Brief

CB-68LPR is NI unshielded right-angle 68-pin SCSI to screw terminal breakout board for panel/desktop mounting,matching NI 68-pin DAQ cards,suitable for analog,digital and counter signal wiring.Mainly used for maintenance and replacement of old industrial test and measurement equipment.ESD protection must be followed during handling.
