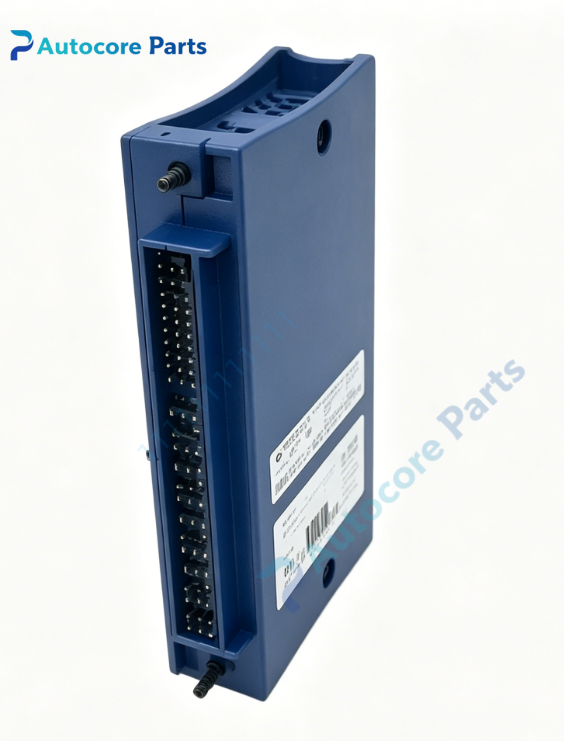

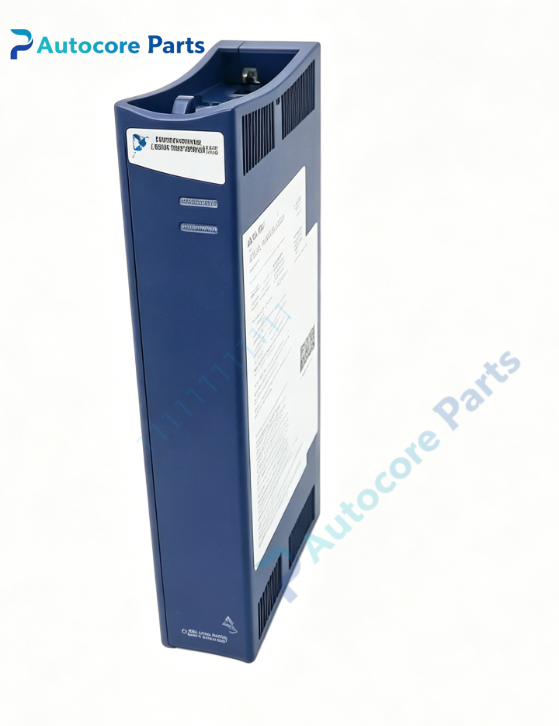

NI cFP-AI-102 Compact FieldPoint 8-Channel 12-Bit High Voltage Analog Input Module

Technical Specifications

Model:cFP-AI-102

Brand:NI

Part No:777318-102

Product type:Compact FieldPoint 8-Channel 12-Bit High Voltage Analog Input Module

Resolution:12-bit

Channels:8 channels,per-channel software configurable voltage input

Input Ranges:0–20V,0–60V,0–120V,±20V,±60V,±120V

Isolation:250Vrms CAT II channel-to-ground isolation,2300V transient overvoltage protection

Max sampling rate:360Hz aggregate

Power consumption:0.4W

Dimension:109.5mm91.4mm25.4mm

Weight:0.13kg

Interface:Screw terminal I/O,Compact FieldPoint backplane connector

Operating temperature:-40℃ ~ +70℃

Storage temperature:-55℃ ~ +125℃

Relative humidity:10~90% non-condensing

Certification:CE

System compatibility

cFP-AI-102 belongs to NI Compact FieldPoint platform.It works with cFP series backplanes and real-time controllers,supported by LabVIEW and NI FieldPoint drivers,widely used for high-voltage industrial signal acquisition.It is spare part for legacy automation equipment overhaul.

Function

cFP-AI-102 is hot-swappable 8-channel high voltage analog input module for Compact FieldPoint system.It measures high-range industrial voltage signals with channel-to-ground isolation for noise suppression.Onboard signal conditioning and diagnostic functions,supports hot swap replacement without system shutdown.

Installation

Insert cFP-AI-102 into Compact FieldPoint backplane,tighten captive mounting screws.Wire voltage signal to front screw terminals.Take ESD protection before installation,supports hot swap operation.

Interface

‑Front screw terminal block for analog voltage signals

‑Compact FieldPoint backplane connector

‑Module status LED indicators

Feature

cFP-AI-102 classic NI isolated high voltage analog input I/O module.Typical faults:terminal block corrosion,ADC circuit damage,backplane pin oxidation.Inspect terminals and test channel reading before replacement.

Diagnostic

Fault phenomenon:no channel reading,unstable signal,measurement deviation.Check wiring and terminal tightness,verify backplane communication and module status LED.

Product Brief

cFP-AI-102 is NI Compact FieldPoint 8-channel 12-bit high voltage analog input module,supporting multiple high voltage input ranges,250Vrms isolation,hot swappable,wide temperature range for industrial high-voltage signal collection.Mainly used for maintenance and replacement of old industrial automation equipment.ESD protection must be followed during handling.
