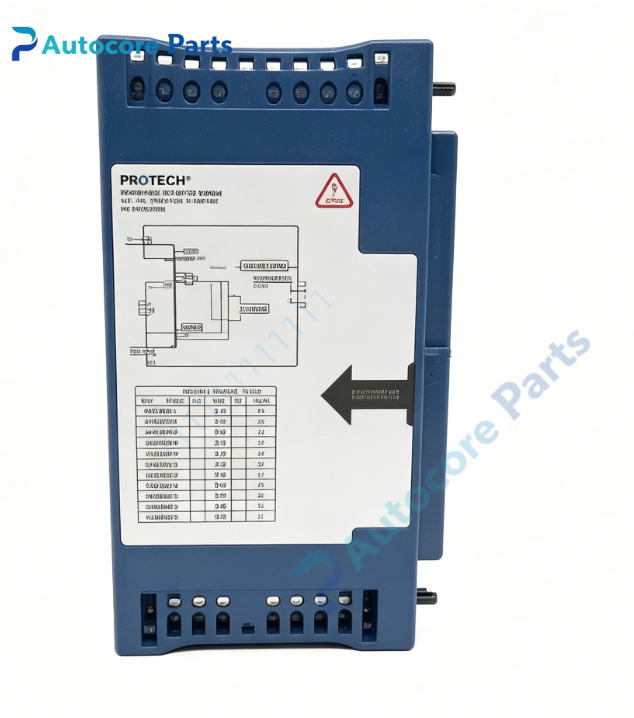

NI cFP-AO-210 Compact FieldPoint 8-Channel 12-Bit Voltage Analog Output Module

Technical Specifications

Model:cFP-AO-210

Brand:NI

Part No:777319-01

Product type:Compact FieldPoint 8-Channel 12-Bit Voltage Analog Output Module

Resolution:12-bit

Channels:8 single-ended voltage output channels

Output Ranges:0–10V,overrange up to 10.2V

Current Drive:1mA source/sink;10mA sourcing with 15~30VDC external power

Isolation:2300Vrms transient bank isolation,250Vrms working voltage

Max update rate:200 updates/s

Protection:Overvoltage protection,-10~20V range,per-channel overcurrent indicator

Power consumption:0.6W

Dimension:109.5mm91.4mm25.4mm

Weight:0.115kg

Interface:Screw terminal I/O,Compact FieldPoint backplane connector

Operating temperature:-40℃ ~ +70℃

Storage temperature:-55℃ ~ +100℃

Relative humidity:10~90% non-condensing

Certification:CE,Class I Division 2

System compatibility

cFP-AO-210 belongs to NI Compact FieldPoint platform.It works with cFP series backplanes and real-time controllers,supported by LabVIEW and NI FieldPoint drivers,widely used for proportional valve and VFD analog regulation in industrial control systems.It is spare part for legacy automation equipment overhaul.

Function

cFP-AO-210 is hot-swappable 8-channel voltage analog output module for Compact FieldPoint system.It generates 0-10V analog voltage signals for field actuators and regulators.Bank isolation suppresses field interference,each channel has independent overcurrent alarm,supports hot swap replacement without system shutdown.

Installation

Insert cFP-AO-210 into Compact FieldPoint backplane,tighten captive mounting screws.Wire actuator signal to front screw terminals,optional 15~30VDC auxiliary power for higher current drive.Take ESD protection before installation,supports hot swap operation.

Interface

‑Front screw terminal block for analog voltage output signals

‑Compact FieldPoint backplane connector

‑POWER,READY and 8 channel current limit LED indicators

Feature

cFP-AO-210 classic NI isolated voltage analog output I/O module.Typical faults:terminal block corrosion,DAC circuit damage,backplane pin oxidation.Inspect terminals and test channel output before replacement.

Diagnostic

Fault phenomenon:no output,unstable voltage,channel current limit alarm.Check wiring and terminal tightness,external auxiliary power,verify backplane communication and module status LED.

Product Brief

cFP-AO-210 is NI Compact FieldPoint 8-channel 12-bit voltage analog output module for 0-10V control signals,with 2300Vrms transient isolation,hot swappable,wide temperature range for industrial proportional equipment control.Mainly used for maintenance and replacement of old industrial automation equipment.ESD protection must be followed during handling.
