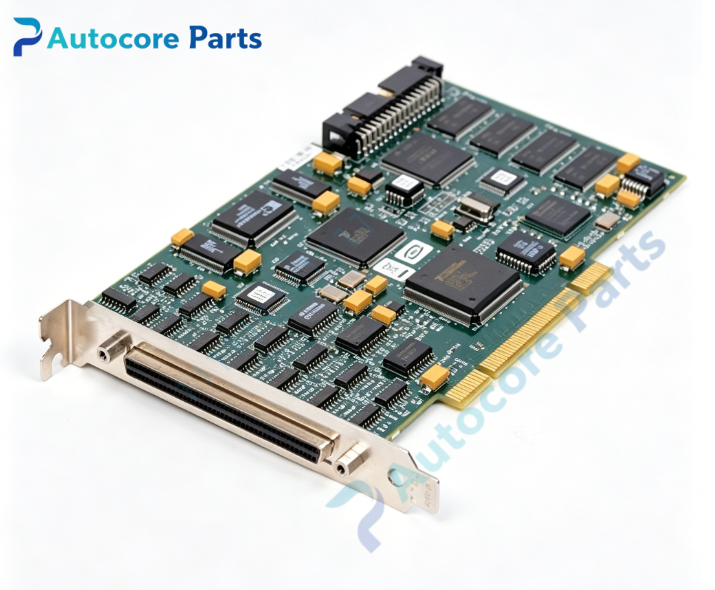

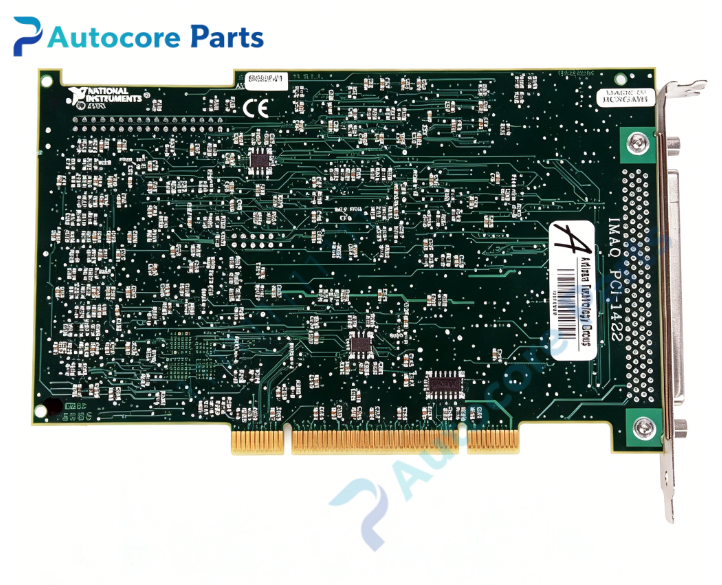

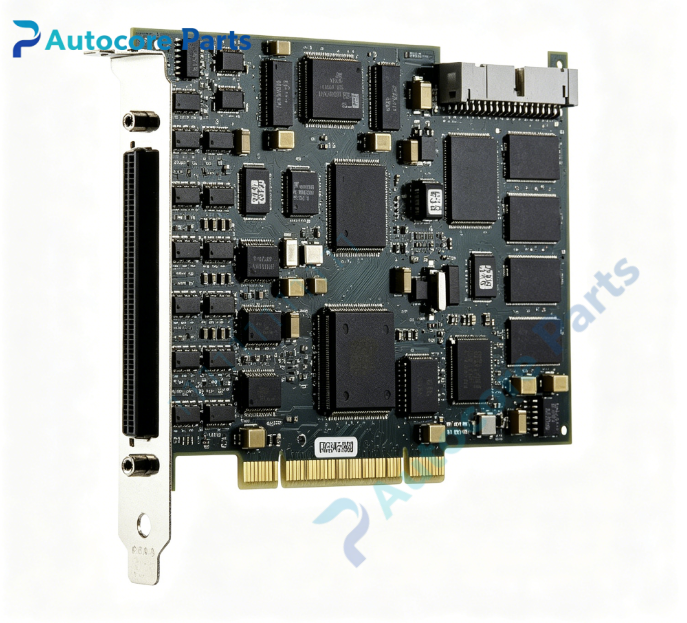

NI PCI-1422 PCI Digital LVDS RS-422 Frame Grabber Board

Technical Specifications

Model:PCI-1422

Brand:NI

Part No:777959-01

Product type:PCI Bus Digital Camera Frame Grabber

Interface:LVDS,RS-422,RS-644

Pixel clock:up to 40MHz

Pixel depth:8/10/12/14/16 bit,support 1 or 2 tap configuration

Trigger:external hardware TTL trigger

Synchronization:RTSI bus

Connector:100pin I/O connector

Bus:PCI

Dimension:175mm107mm20mm

Weight:127g

Operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +70℃

Relative humidity:10~90% non-condensing

Certification:CE

System compatibility

PCI-1422 belongs to NI IMAQ vision hardware platform.It works with standard PCI industrial PC,driven by NI-IMAQ and Vision Acquisition Software,supported by LabVIEW,widely used for LVDS / RS422 digital CCD camera image capture,high precision inspection and line scan vision test systems.It is spare part for legacy automation equipment overhaul.

Function

PCI-1422 is PCI digital frame grabber board for non-Camera Link digital cameras.It receives LVDS and RS422 differential digital video signals,supports multi-bit pixel depth and 2 tap image transmission.RTSI bus enables hardware synchronous trigger with DAQ and motion control hardware for synchronized measurement and image capture.

Installation

Insert PCI-1422 into computer PCI slot and fasten bracket.Connect digital camera to 100pin I/O cable.Install NI-IMAQ vision driver.Take ESD protection before installation.

Interface

‑100-pin digital I/O connector

‑RTSI synchronization bus connector

‑PCI gold finger edge connector

‑Board status indicator

Feature

PCI-1422 classic NI LVDS digital frame grabber board.Typical faults:100pin connector pin oxidation,image data transmission error,trigger circuit failure.Inspect camera differential signal and image capture before replacement.

Diagnostic

Fault phenomenon:no image,image noise,data corruption,trigger timeout.Check differential camera cable,camera power supply,PCI slot contact,NI-IMAQ driver and RTSI sync parameters.

Product Brief

PCI-1422 is NI PCI digital frame grabber supporting LVDS/RS-422/RS-644 digital cameras with up to 40MHz pixel clock and 16-bit pixel depth,RTSI synchronization,for legacy digital CCD and line scan camera machine vision inspection and test equipment renovation.Mainly used for maintenance and replacement of old vision equipment.ESD protection must be followed during handling.
