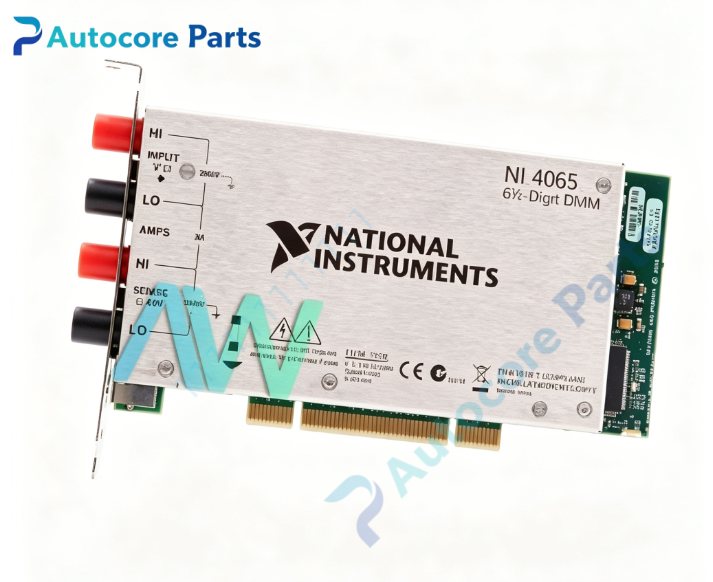

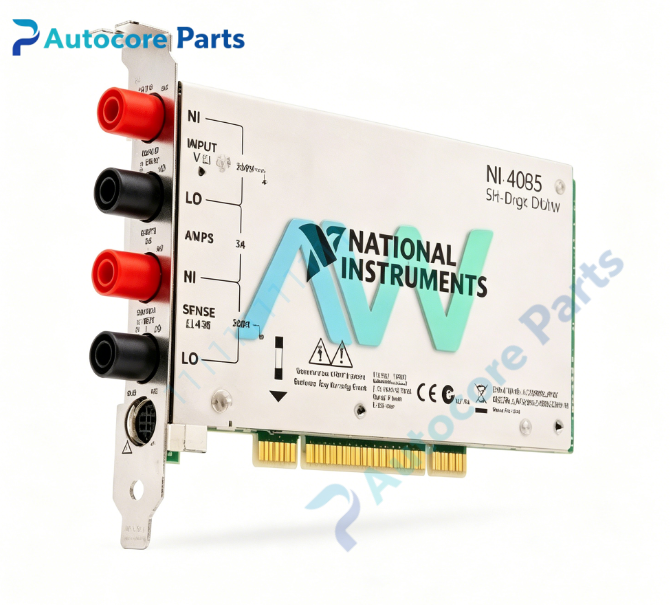

NI PCI-4065 PCI Bus 6.5-Digit Digital Multimeter Board

Technical Specifications

Model:PCI-4065

Brand:NI

Part No:779770-01

Product type:PCI Bus Digital Multimeter(DMM) Board

Resolution:6.5 digit

Measurement:DC/AC voltage,DC/AC current,2-wire & 4-wire resistance,diode test

Voltage range:±300V

Current range:±3A

Resistance:2/4-wire up to 100MΩ

Max sampling rate:3kS/s

Function:auto ranging,hardware trigger

Bus:32-bit PCI

Dimension:175mm107mm20mm

Weight:0.21kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +70℃

Relative humidity:10~90% non-condensing

Certification:CE

System compatibility

PCI-4065 belongs to NI PCI instrument platform.It works with standard PCI industrial PC,driven by NI-DMM driver,supported by LabVIEW and Measurement Studio,widely used for component test,precision measurement and automated calibration in industrial automated test systems.It is spare part for legacy test equipment overhaul.

Function

PCI-4065 is PCI-based 6.5-digit high precision digital multimeter board.It supports true RMS AC measurement and 4-wire resistance to eliminate lead resistance error.Hardware trigger enables synchronized measurement with DAQ devices,ideal for automated test benches and lab precision measurement applications.

Installation

Insert PCI-4065 into computer PCI slot and fasten bracket.Connect test probes to banana terminal connector.Install NI-DMM instrument driver.Take ESD protection before installation.

Interface

‑Banana terminal multi-function measurement connector

‑Auxiliary trigger connector

‑PCI gold finger edge connector

‑Board status indicator

Feature

PCI-4065 classic NI PCI 6.5-digit DMM board.Typical faults:terminal contact oxidation,internal fuse blown,measurement circuit drift.Inspect input terminals and calibration status before replacement.

Diagnostic

Fault phenomenon:no reading,unstable measurement,overrange alarm.Check test cable,probe,PCI slot contact,NI-DMM driver and input signal overload.

Product Brief

PCI-4065 is NI PCI bus 6.5-digit DMM board supporting ±300V voltage and 3A current measurement,with true RMS and 4-wire resistance function,for PC-based automatic component testing and legacy automated test equipment renovation.Mainly used for maintenance and replacement of old test equipment.ESD protection must be followed during handling.
