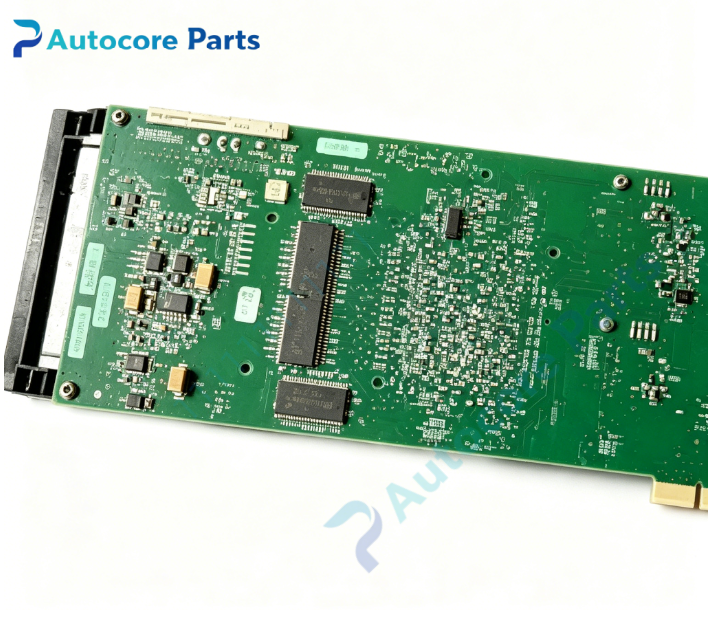

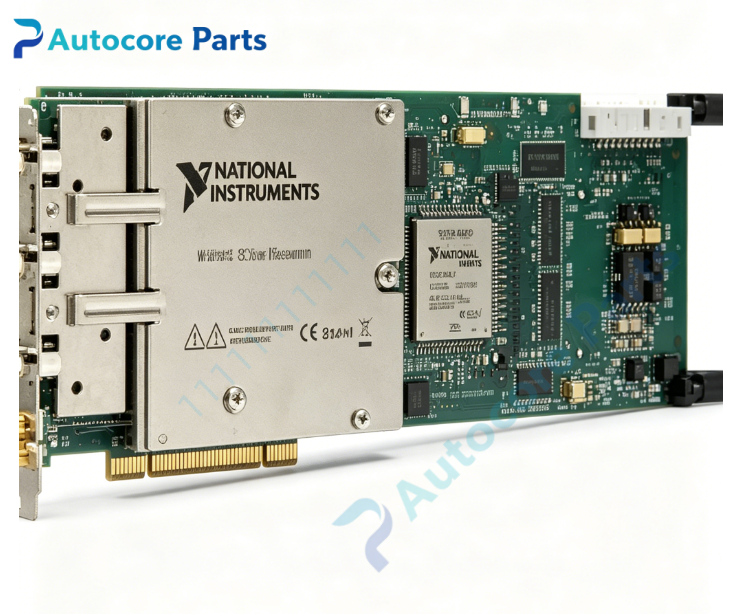

NI PCI-5152 PCI Bus 2-Channel High Speed Digitizer Board

Technical Specifications

Model:PCI-5152

Brand:NI

Part No:779945-01

Product type:PCI Bus High Speed Digitizer(Oscilloscope) Board

Resolution:8-bit

Analog Input:2 channels,simultaneous sampling

Real-time sampling rate:2GS/s(1CH),1GS/s(2CH),ETS equivalent sampling up to 20GS/s

Analog bandwidth:300MHz

Input impedance:software selectable 50Ω or 1MΩ

Input voltage range:100mVpp ~10Vpp,AC/DC coupling

Onboard memory:8MB / 64MB / 256MB per channel

Function:edge/window/holdoff trigger,PFI digital I/O,multi-board synchronization,signal filtering

Bus:32-bit PCI

Dimension:175mm107mm20mm

Weight:0.24kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +70℃

Relative humidity:10~90% non-condensing

Certification:CE

System compatibility

PCI-5152 belongs to NI high-speed digitizer platform.It works with standard PCI industrial PC,supported by NI-SCOPE driver and LabVIEW,widely used for high-speed transient waveform capture,semiconductor characterization,NDT and optical signal measurement in legacy automated test systems.It is spare part for legacy test equipment overhaul.

Function

PCI-5152 is high-speed PCI digitizer board serving as PC-based oscilloscope.It supports up to 2GS/s real-time sampling and 20GS/s equivalent sampling for repetitive signals.Software configurable impedance,coupling and voltage ranges adapt to diverse high-frequency signal sources.Deep onboard memory records long waveform sequences.Multiple trigger modes and PFI timing ports support multi-instrument synchronized ATE systems.

Installation

Insert PCI-5152 into computer PCI slot and fasten bracket.Connect signal probes to BNC connectors.Install NI-SCOPE instrument driver.Take ESD protection before installation.

Interface

‑2×BNC analog input connectors

‑1×BNC external trigger connector

‑2×SMB PFI digital timing connectors

‑PCI gold finger edge connector

‑Board status indicator

Feature

PCI-5152 classic NI high bandwidth PCI digitizer board.Typical faults:BNC connector oxidation,input front-end circuit damage,onboard memory failure.Inspect input channel and waveform capture before replacement.

Diagnostic

Fault phenomenon:no waveform display,signal attenuation,trigger jitter,memory read error.Check BNC probe/cable,PCI slot contact,NI-SCOPE driver,impedance and trigger level configuration.

Product Brief

PCI-5152 is NI PCI bus 8-bit 2-channel digitizer board with max 2GS/s sampling and 300MHz bandwidth,selectable input impedance and deep memory,for high-speed transient waveform acquisition,semiconductor testing and legacy ATE equipment renovation.Mainly used for maintenance and replacement of old test equipment.ESD protection must be followed during handling.
