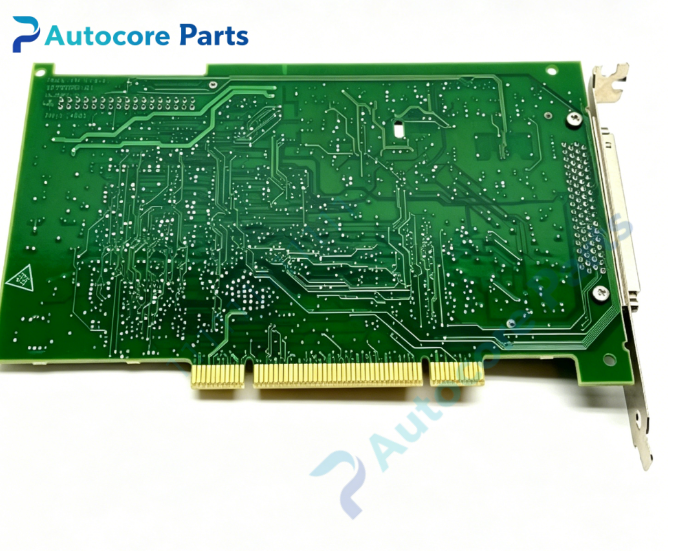

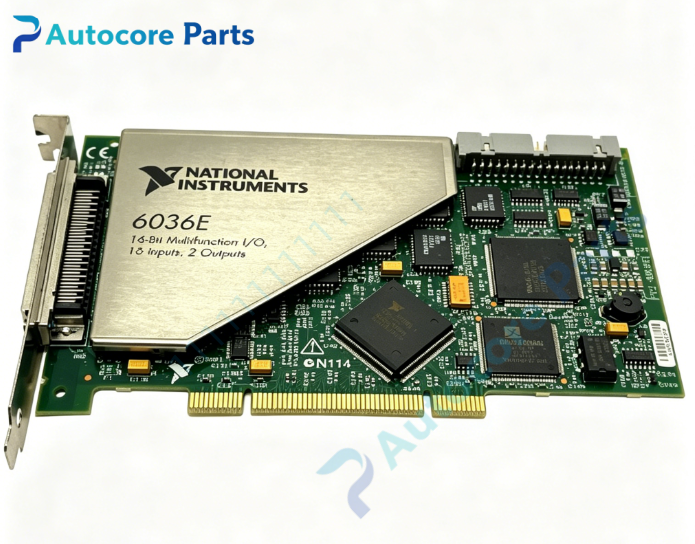

NI PCI-6036E PCI Bus E-Series Multifunction DAQ Data Acquisition Board

Technical Specifications

Model:PCI-6036E

Brand:NI

Part No:778073-01

Product type:PCI Bus E-Series Multifunction DAQ(Data Acquisition) Board

ADC:16-bit resolution

Analog Input:16 single-ended /8 differential channels

Max sampling rate:200kS/s

Analog Output:2 channels,16-bit

Digital I/O:8 bidirectional DIO lines,TTL level

Counter/Timer:2×24-bit counter timers

Connector:68-pin SCSI

Function:high speed precision voltage measurement,analog output,PFI timing trigger,digital read/write,digital triggering,multi-board synchronization

Bus:32-bit PCI

Dimension:175mm107mm20mm

Weight:0.152kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +70℃

Relative humidity:10~90% non-condensing

Certification:CE

System compatibility

PCI-6036E belongs to NI E-Series multifunction DAQ platform.It works with standard PCI industrial PC,supported by NI-DAQmx and Traditional NI-DAQ legacy driver and LabVIEW,widely used for high speed precision measurement,laboratory research and manufacturing test measurement.It is spare part for legacy test equipment overhaul.

Function

PCI-6036E is high speed E-series multi-function PCI DAQ board.It integrates 16-ch analog input,2-channel 16-bit analog output,bidirectional digital I/O and 24-bit counter functions.16-bit high resolution collects analog voltage signals,2 AO channels generate high precision analog control signals.PFI lines support external timing and triggering for high speed automated test systems.

Installation

Insert PCI-6036E into computer PCI slot and fasten bracket.Connect signal wiring to 68pin SCSI terminal block.Install NI-DAQmx or Traditional NI-DAQ legacy driver.Take ESD protection before installation.

Interface

‑68-pin SCSI multi-function I/O connector

‑PCI gold finger edge connector

‑Board status indicator

Feature

PCI-6036E classic NI high speed E-series multifunction DAQ board.Typical faults:SCSI connector pin oxidation,ADC reading drift,counter timing error.Inspect analog input and digital channel before replacement.

Diagnostic

Fault phenomenon:abnormal AI reading,no AO output,digital channel failure,counting error.Check sensor wiring,PCI slot contact,DAQ driver and channel configuration.

Product Brief

PCI-6036E is NI PCI bus E-Series multifunction DAQ board with 16-bit,200kS/s sampling rate,16AI,2AO and 8 DIO,for high-speed precision voltage acquisition,automated measurement and legacy test equipment renovation.Mainly used for maintenance and replacement of old test equipment.ESD protection must be followed during handling.
