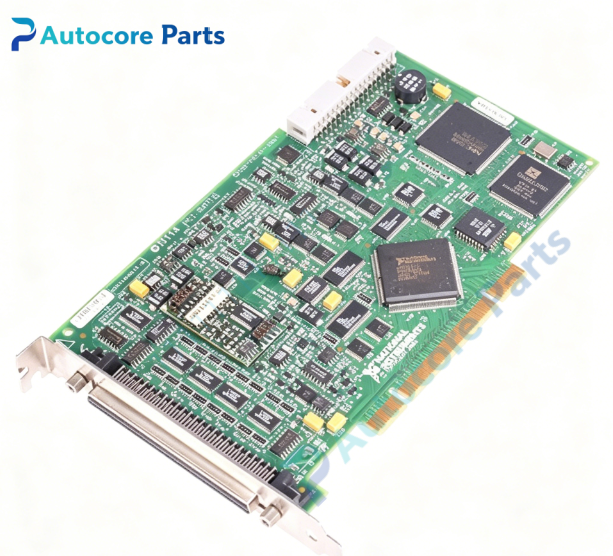

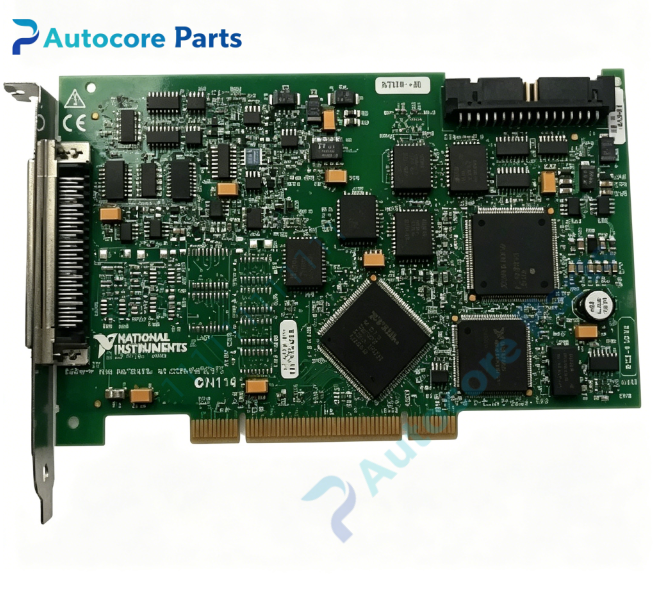

NI PCI-6071E PCI Bus E-Series Multifunction DAQ Data Acquisition Board

Technical Specifications

Model:PCI-6071E

Brand:NI

Part No:PCI-6071E

Product type:PCI Bus E-Series Multifunction DAQ(Data Acquisition) Board

ADC:12-bit resolution

Analog Input:64 single-ended /32 differential channels

Max sampling rate:1.25MS/s

Analog Output:2 channels,12-bit

Digital I/O:8 bidirectional DIO lines,TTL level

Counter/Timer:2×24-bit counter timers

Connector:68-pin SCSI

Function:multi-channel ultra high speed voltage measurement,analog output,PFI timing trigger,digital read/write,digital triggering,multi-board synchronization

Bus:32-bit PCI

Dimension:175mm107mm20mm

Weight:0.22kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +70℃

Relative humidity:10~90% non-condensing

Certification:CE

System compatibility

PCI-6071E belongs to NI E-Series multifunction DAQ platform.It works with standard PCI industrial PC,supported by NI-DAQmx and Traditional NI-DAQ legacy driver and LabVIEW,widely used for multi-channel ultra high speed measurement,laboratory research and manufacturing test measurement.It is spare part for legacy test equipment overhaul.

Function

PCI-6071E is multi-channel ultra high speed E-series multi-function PCI DAQ board.It integrates 64-ch analog input,2-channel analog output,bidirectional digital I/O and 24-bit counter functions.12-bit ADC collects high-speed multi-channel analog voltage signals,2 AO channels generate analog control signals.PFI lines support external timing and triggering for multi-channel high speed automated test systems.

Installation

Insert PCI-6071E into computer PCI slot and fasten bracket.Connect signal wiring to 68pin SCSI terminal block.Install NI-DAQmx or Traditional NI-DAQ legacy driver.Take ESD protection before installation.

Interface

‑68-pin SCSI multi-function I/O connector

‑PCI gold finger edge connector

‑Board status indicator

Feature

PCI-6071E classic NI multi-channel ultra high speed E-series multifunction DAQ board.Typical faults:SCSI connector pin oxidation,ADC reading drift,counter timing error.Inspect analog input and digital channel before replacement.

Diagnostic

Fault phenomenon:abnormal AI reading,no AO output,digital channel failure,counting error.Check sensor wiring,PCI slot contact,DAQ driver and channel configuration.

Product Brief

PCI-6071E is NI PCI bus E-Series multifunction DAQ board with 12-bit,1.25MS/s sampling rate,64AI,2AO and 8 DIO,for multi-channel ultra high-speed voltage acquisition,automated measurement and legacy test equipment renovation.Mainly used for maintenance and replacement of old test equipment.ESD protection must be followed during handling.
