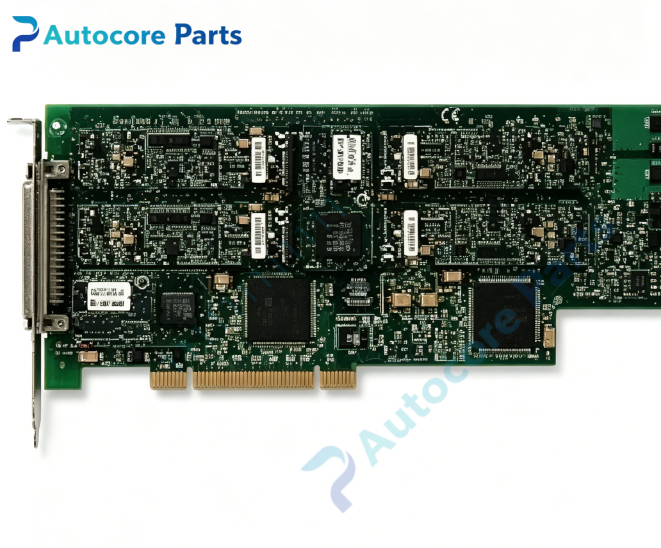

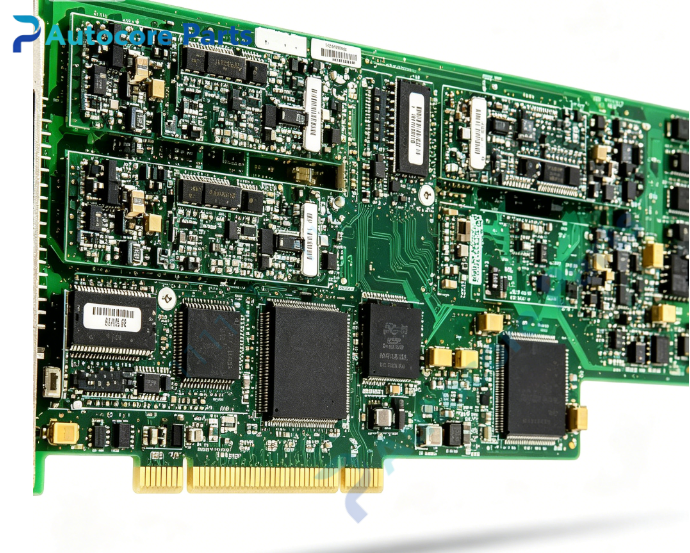

NI PCI-6115 Simultaneous Sampling DAQ Multifunction I/O Board

Technical Specifications

Model:PCI-6115

Brand:NI

Part No:778534-01 / 778554-01

Product type:PCI Bus S Series Multifunction DAQ(Data Acquisition) Board

ADC:12-bit resolution

Analog Input:4 differential channels

Max sampling rate:10MS/s per channel

Analog Output:2 channels,12-bit

Digital I/O:8 bidirectional DIO lines,TTL level

Counter/Timer:2×24-bit counter timers

Connector:68-pin SCSI

Function:ultra high speed synchronous voltage measurement,analog output,PFI timing trigger,digital read/write,digital triggering,multi-board synchronization

Bus:32-bit PCI

Dimension:175mm107mm20mm

Weight:0.22kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +70℃

Relative humidity:10~90% non-condensing

Certification:CE

System compatibility

PCI-6115 belongs to NI S Series multifunction DAQ platform.It works with standard PCI industrial PC,supported by NI-DAQmx and Traditional NI-DAQ legacy driver and LabVIEW,widely used for ultra high speed synchronous measurement,laboratory research,automotive 42V test,radar,sonar and ultrasound measurement.It is spare part for legacy test equipment overhaul.

Function

PCI-6115 is S-series simultaneous sampling PCI DAQ board.It integrates 4-ch differential analog input,2-channel analog output,bidirectional digital I/O and 24-bit counter functions.12-bit ADC supports per-channel 10MS/s synchronous sampling,2 AO channels generate analog control signals.PFI lines support external timing and triggering for ultra high speed synchronous automated test systems.

Installation

Insert PCI-6115 into full-length PCI slot and fasten bracket.Connect signal wiring to 68pin SCSI terminal block.Install NI-DAQmx or Traditional NI-DAQ legacy driver.Take ESD protection before installation.

Interface

‑68-pin SCSI multi-function I/O connector

‑PCI gold finger edge connector

‑Board status indicator

Feature

PCI-6115 classic NI S-series simultaneous sampling DAQ board.Typical faults:SCSI connector pin oxidation,ADC reading drift,counter timing error.Inspect analog input and digital channel before replacement.

Diagnostic

Fault phenomenon:abnormal AI reading,no AO output,digital channel failure,counting error.Check sensor wiring,PCI slot contact,DAQ driver and channel configuration.

Product Brief

PCI-6115 is NI PCI bus S Series multifunction DAQ board with 12-bit,10MS/s per channel synchronous sampling,4AI,2AO and 8 DIO,for ultra high-speed synchronous voltage acquisition,automated measurement and legacy test equipment renovation.Mainly used for maintenance and replacement of old test equipment.ESD protection must be followed during handling.
