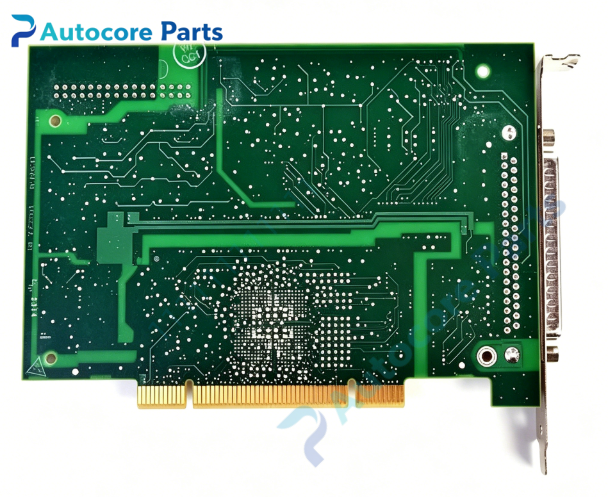

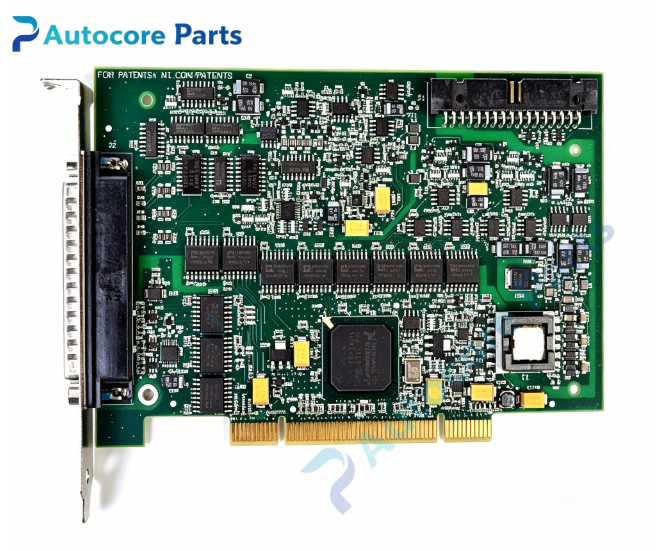

NI PCI-6236 Isolated M Series Multifunction DAQ Board

Technical Specifications

Model:PCI-6236

Brand:NI

Part No:779621-01

Product type:PCI Bus M Series Isolated Multifunction DAQ(Data Acquisition) Board

ADC:16-bit resolution

Analog Input:4 differential current input channels,±20mA range

Max sampling rate:250kS/s aggregate

Analog Output:4 channels,16-bit voltage output

Digital I/O:6DI,4DO,bank-isolated,TTL/CMOS level

Counter/Timer:2×32-bit counter timers

Connector:37-pin D-Sub

Function:isolated current measurement,analog waveform output,PFI timing trigger,digital read/write,digital triggering,multi-board synchronization

Bus:32-bit PCI

Dimension:175mm107mm20mm

Weight:0.22kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +70℃

Relative humidity:10~90% non-condensing

Certification:CE

System compatibility

PCI-6236 belongs to NI M Series multifunction DAQ platform.It works with standard PCI industrial PC,supported by NI-DAQmx and LabVIEW,widely used for isolated current signal measurement,industrial sensor monitoring,production line testing and data logging.It is spare part for legacy test equipment overhaul.

Function

PCI-6236 is M-series bank-isolated multifunction PCI DAQ board.It integrates 4-ch differential current analog input,4-channel analog voltage output,isolated digital I/O and 32-bit counter functions.16-bit ADC supports aggregate 250kS/s sampling with bank isolation to suppress ground loop interference.PFI lines support external timing and triggering for isolated automated test systems.

Installation

Insert PCI-6236 into PCI slot and fasten bracket.Connect signal wiring to 37pin D-Sub terminal block.Install NI-DAQmx driver.Take ESD protection before installation.

Interface

‑37-pin D-Sub multi-function I/O connector

‑PCI gold finger edge connector

‑Board status indicator

Feature

PCI-6236 classic NI M-series isolated DAQ board.Typical faults:D-Sub connector pin oxidation,ADC reading drift,counter timing error.Inspect analog input and digital channel before replacement.

Diagnostic

Fault phenomenon:abnormal AI reading,no AO output,digital channel failure,counting error.Check sensor wiring,PCI slot contact,DAQ driver and channel configuration.

Product Brief

PCI-6236 is NI PCI bus M Series isolated multifunction DAQ board with 16-bit,250kS/s sampling,4 current AI,4AO and 10 DIO,for isolated current signal acquisition,automated measurement and legacy test equipment renovation.Mainly used for maintenance and replacement of old test equipment.ESD protection must be followed during handling.
