NI PXI-4130 PXI 40W Source Measure Unit SMU

Technical Specifications

Model:PXI-4130

Brand:NI

Part No:779620-01

Product type:3U Single-Slot PXI Source Measure Unit

SMU channel:±20V,±2A,40W sourcing,10W sinking,isolated

Utility auxiliary channel:0~6V,1A

Current ranges:200µA,2mA,20mA,200mA,2A,1nA min resolution

Sampling & update rate:3kS/s,3000 updates per second

Remote sense:4-wire remote sense support

Connector:MINI-COMBICON 3.81mm terminal

Dimension:216mm130mm20mm

Weight:0.312kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +70℃

Relative humidity:10~90% non-condensing

Certification:CE

System compatibility

PXI-4130 belongs to NI PXI modular test platform.It fits standard 3U PXI chassis,driven by NI-DCPower,supports LabVIEW,LabWindows/CVI,widely used for semiconductor component characterization,diode/transistor I-V curve test and electronic component DC parameter measurement.It is spare part for legacy test equipment overhaul.

Function

PXI-4130 is four-quadrant PXI source measure unit.It can output and precisely measure voltage and current simultaneously.The isolated SMU channel plus auxiliary 6V channel supports dual-channel device test.4-wire remote sense eliminates cable voltage drop for high precision measurement.

Installation

Insert PXI-4130 into PXI chassis slot and secure front panel screw.Connect MINI-COMBICON signal wiring.Install NI-DCPower driver.Take ESD protection before installation.

Interface

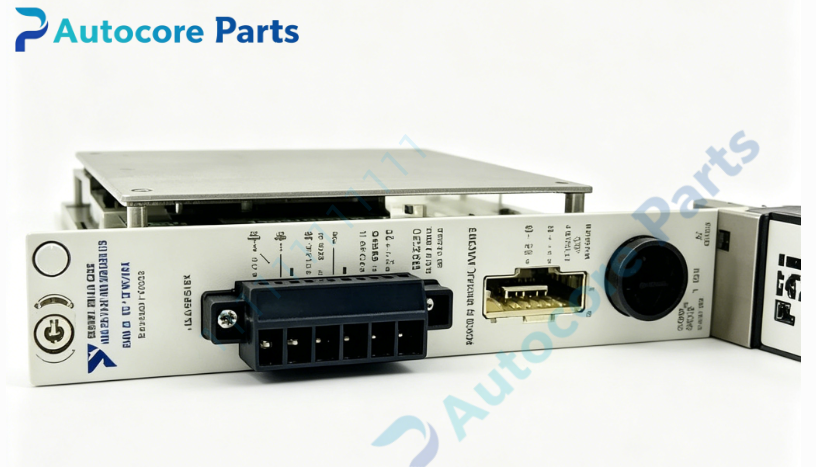

‑MINI-COMBICON SMU output terminal

‑MINI-COMBICON auxiliary power terminal

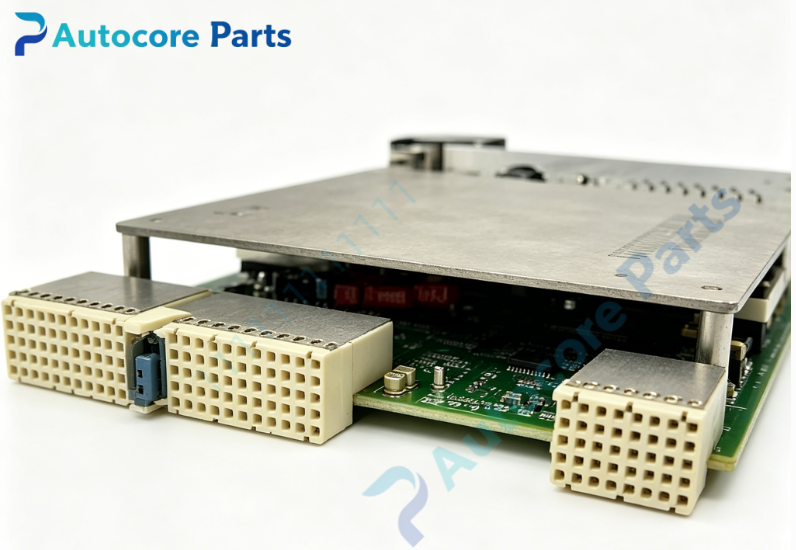

‑PXI backplane gold finger

‑Status LED indicators

Feature

PXI-4130 classic NI PXI SMU module.Typical faults:internal fuse blown,output circuit damage,measurement offset drift.Inspect wiring and fuse before replacement.

Diagnostic

Fault phenomenon:no output,measurement drift,overcurrent protection trigger.Check auxiliary power supply,terminal wiring,module fuse and NI-DCPower communication status.

Product Brief

PXI-4130 is NI 3U PXI four-quadrant SMU with ±20V/2A isolated main channel and 6V auxiliary channel,3kS/s sampling rate,4-wire remote sense for semiconductor and electronic component DC characterization test.Mainly used for maintenance and replacement of old test equipment.ESD protection must be followed during handling.
