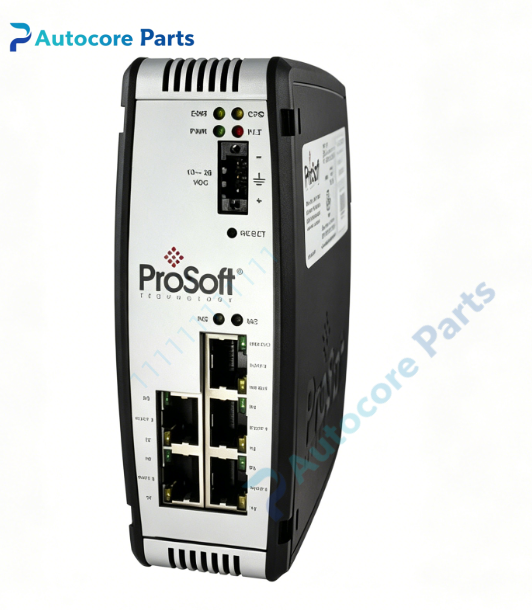

ProSoft 5201-DFNT-DH485 EtherNet/IP to DH-485 Gateway

Technical Specifications

Model:5201-DFNT-DH485

Brand:ProSoft

Product type:Protocol Communication Gateway

Power supply:10-36VDC

Communication:EtherNet/IP Client/Server,DH-485(RS485)

Weight:0.33kg

Operating temperature:-40℃ ~ +70℃

Dimension:125mm86mm35mm

Certification:CE,UL

System compatibility

5201-DFNT-DH485 belongs to ProLinx gateway shturl.cc connects modern EtherNet/IP control network and legacy Rockwell DH-485 PLC devices such as SLC500 series,used for old control system renovation and spare replacement.

Function

It acts as EtherNet/IP client/server and DH-485 network bridge,realizes bidirectional data table read and write between EtherNet/IP host and DH485 old PLC,without modifying original PLC program.

Installation

DIN rail mounting,connect 24VDC power,wire Ethernet and DH485 RS485 bus,set node address and data mapping via configuration software,check LED indicators.

Interface

1*10/100Mbps Ethernet port,DH-485 RS485 terminal,power terminal,run and fault status LED indicators.

Feature

Compact DIN rail housing,supports DH485 multi-node bus,max 32 nodes on DH485 side,stable data exchange for retrofitting old Rockwell automation systems.

Diagnostic

Check power,link and fault LED;communication failure:verify network cable,DH485 bus terminal resistor,node address and baud rate;data abnormal:check data table mapping.

Product Brief

5201-DFNT-DH485 is ProSoft ProLinx protocol gateway,bridge EtherNet/IP and legacy DH-485 PLC network,for industrial old automation system upgrade and maintenance.
