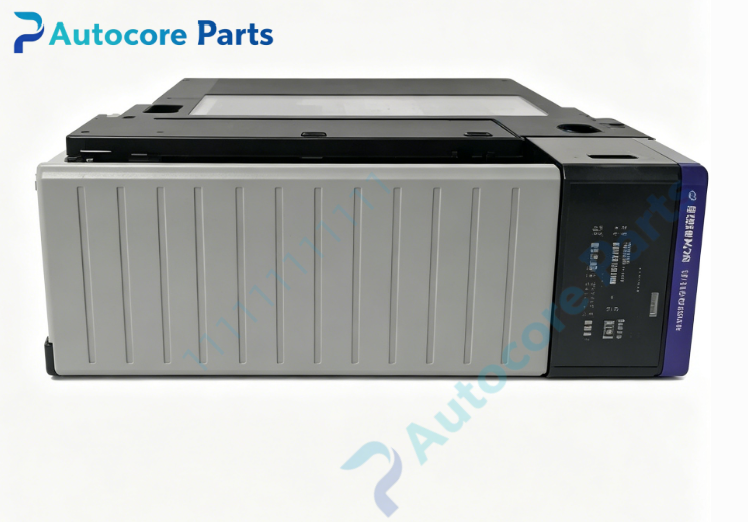

ProSoft BM-1000-PM1K Modbus RS485 DataRail I/O Master Module Kit

Technical Specifications

Model:BM-1000-PM1K

Brand:ProSoft

Product type:DataRail I/O Master Module Kit

Power supply:18-32VDC

Communication:Modbus RTU RS485

Weight:0.34kg

Operating temperature:-40℃ ~ +70℃

Dimension:127mm102mm35mm

Certification:CE,UL

System compatibility

BM-1000-PM1K belongs to ProSoft DataRail I/O system.It is a complete kit including master module and DataRail backplane.It connects Modbus master controllers with up to 16 slave I/O modules,suitable for field remote signal collection and legacy automation system upgrade.

Function

It serves as the master of DataRail backplane,realizes Modbus RTU communication and data exchange with digital and analog I/O modules.Each I/O module acts as Modbus slave with pre-defined register mapping,no complex software configuration required.

Installation

DIN rail mounting,install the master module on DataRail backplane,connect 24VDC power and RS485 bus,attach I/O modules on the backplane,check LED indicators after power on.

Interface

1*RS485 Modbus terminal,DataRail backplane connector,power terminal,run and fault status LED indicators.

Feature

Compact DIN rail housing,field isolated I/O channels,hot pluggable I/O modules,pre-configured data mapping,stable operation in industrial cabinet and field environments.

Diagnostic

Check power,run and fault LED;communication failure:verify RS485 wiring,terminal resistance and station address;data abnormal:check backplane connection and I/O module status.

Product Brief

BM-1000-PM1K is ProSoft DataRail series Modbus RS485 I/O master kit,used for distributed field I/O signal acquisition and output,for old industrial automation system maintenance and transformation.
