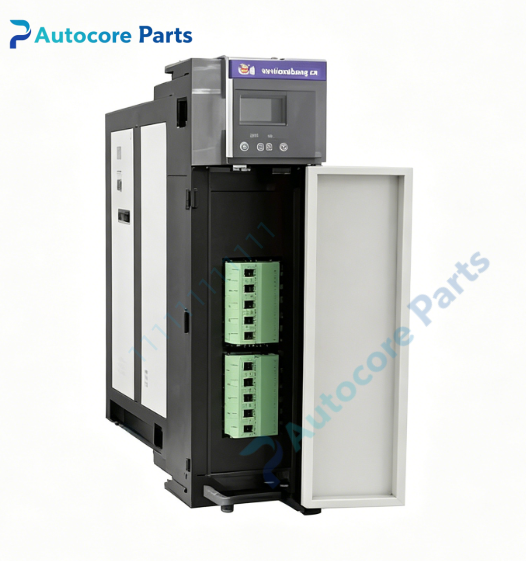

ProSoft CLX-APACS ControlLogix to Moore APACS In-Chassis Module

Technical Specifications

Model:CLX-APACS

Brand:ProSoft

Product type:ControlLogix In-Chassis Communication Module

Power supply:Supplied via ControlLogix backplane

Communication:Moore APACS+ IOBUS

Weight:0.28kg

Operating temperature:0℃ ~ +60℃

Dimension:120mm87mm32mm

Certification:CE,UL

System compatibility

CLX-APACS is ProSoft in-chassis module for Rockwell ControlLogix / PlantPAx platform.It plugs directly into ControlLogix rack and connects to legacy Moore APACS+ IOBUS remote I/O racks,suitable for phased migration of obsolete Moore APACS DCS systems.

Function

It supports master mode and monitor mode.Master mode enables ControlLogix to directly control APACS+ IOBUS remote I/O;monitor mode realizes real-time parallel data comparison without interrupting original APACS controller.Supports automatic import of APACS I/O configuration and maps I/O data to ControlLogix tags.

Installation

Insert module into ControlLogix chassis backplane,connect APACS+ IOBUS field cable,download configuration via RSLinx Classic,verify module and network LED status after power-up.

Interface

APACS+ IOBUS terminal port,ControlLogix backplane connector,multi-color LED indicators for module and network status.

Feature

Direct ControlLogix chassis installation,no separate power supply,supports up to 39 IOBUS cards per segment,handles mixed discrete and analog I/O points,low downtime phased DCS migration.

Diagnostic

Check module run and fault LED;communication failure:check IOBUS cable,terminal resistance and bus address;data abnormal:verify imported I/O configuration and tag mapping.

Product Brief

CLX-APACS is ProSoft ControlLogix in-chassis communication module.It bridges ControlLogix/PlantPAx controller and legacy Moore APACS+ IOBUS remote I/O racks,for old DCS system maintenance and staged system transformation.
