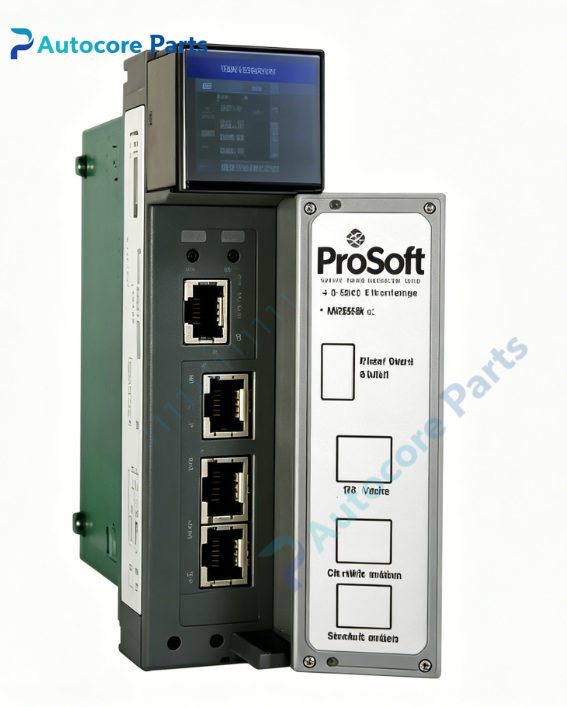

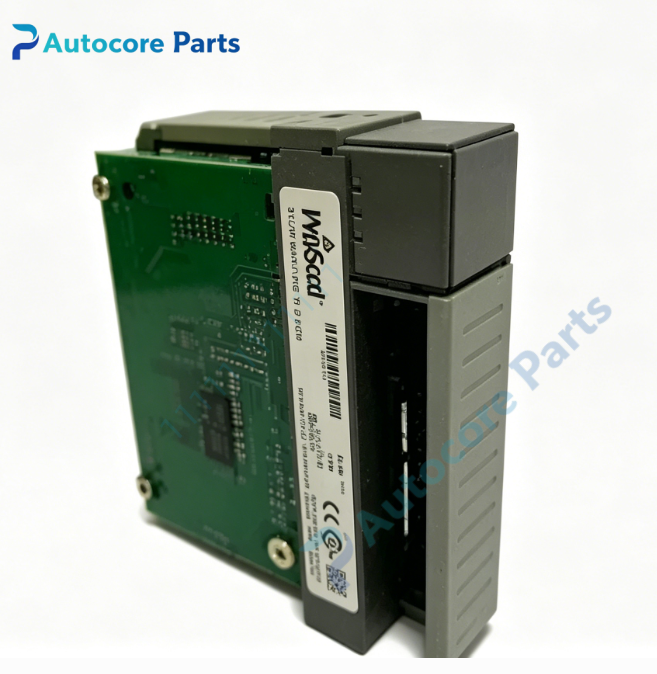

ProSoft MVI46-DFNT SLC500 EtherNet/IP Module

Technical Specifications

Model:MVI46-DFNT

Brand:ProSoft

Product type:SLC500 In-Chassis EtherNet/IP Communication Module

Power supply:Supplied via SLC500 backplane,800mA @5VDC

Communication:EtherNet/IP,10/100Mbps

Weight:0.27kg

Operating temperature:0℃ ~ +60℃

Dimension:Standard SLC500 single slot module,120mm87mm32mm

Certification:CE,UL

System compatibility

MVI46-DFNT belongs to ProSoft MVI46 series module.It plugs directly into Rockwell SLC500 rack,compatible with SLC 5/02 and above processors with M0/M1 file capability,suitable for upgrading legacy SLC500 system to EtherNet/IP network and spare replacement.

Function

It works as EtherNet/IP client and server,supports bidirectional read and write data exchange between SLC500 and EtherNet/IP devices.Supports DF1 pass-through function to upload and download ladder logic over Ethernet.Data is mapped to SLC500 controller memory via backplane.

Installation

Insert module into SLC500 chassis backplane,connect Ethernet cable,set IP address and configure client/server command list via ProSoft Configuration Builder,download project through RSLinx,check LED indicators after power-up.

Interface

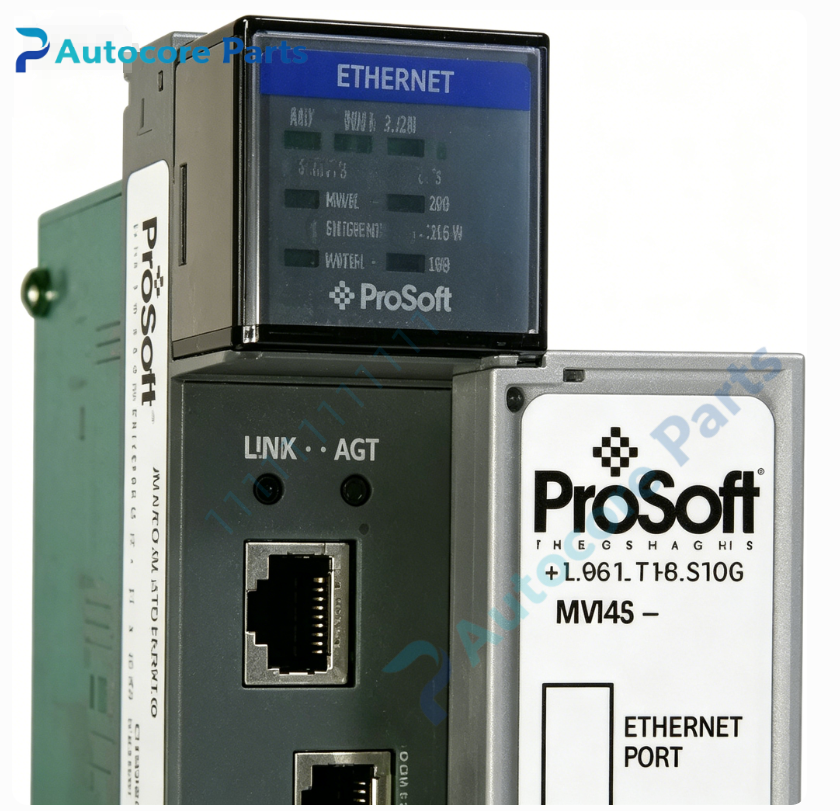

1*10/100Mbps Ethernet RJ45 port,RJ45 configuration serial port,SLC500 backplane connector,module status,network and communication LED indicators.

Feature

Single slot SLC500 chassis design,supports up to 100 user-defined commands,multiple concurrent EtherNet/IP connections,onboard diagnostic status data,stable operation in industrial cabinet environment.

Diagnostic

Check module run and fault LED;communication failure:verify Ethernet cable,IP address and network route;data abnormal:check EtherNet/IP command list and data mapping table.

Product Brief

MVI46-DFNT is ProSoft MVI46 series EtherNet/IP communication module for SLC500 rack.It connects Rockwell SLC500 controller to EtherNet/IP network devices,for industrial automation system maintenance and transformation.
