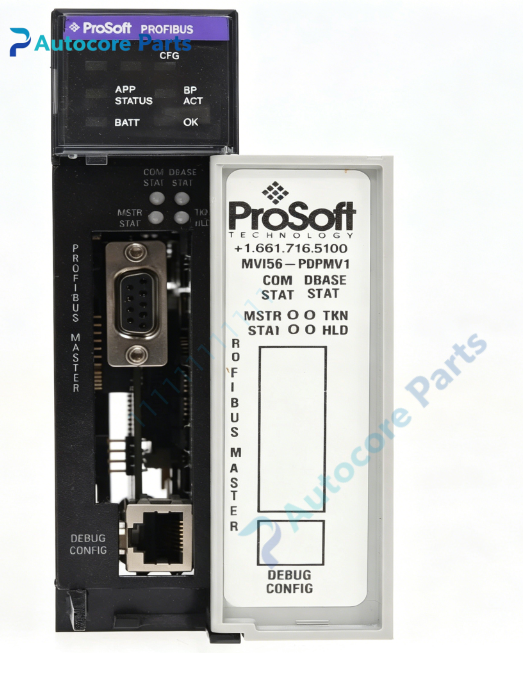

ProSoft MVI56-PDPMV1 CLX PDPMV1 Module

Technical Specifications

Model:MVI56-PDPMV1

Brand:ProSoft

Product type:ControlLogix In-Chassis PROFIBUS DPV1 Master Communication Module

Power supply:Supplied via 1756 backplane,800mA @5VDC,3mA @24VDC

Communication:PROFIBUS DP DPV0/DPV1,9-pin D-Sub interface

Weight:0.29kg

Operating temperature:0℃ ~ +60℃

Dimension:Standard 1756 single slot module,120mm87mm32mm

Certification:CE,UL

System compatibility

MVI56-PDPMV1 belongs to ProSoft MVI56 series module.

It plugs directly into Rockwell ControlLogix 1756 rack,compatible with ControlLogix PAC controllers.

Supports standard GSD file configuration,connects to PROFIBUS DP slave devices such as drives,valves and remote I/O.

Suitable for mixed brand automation system renovation and spare replacement.

Function

It acts as PROFIBUS DP master station,supports DPV0 cyclic I/O data and DPV1 acyclic parameter access.

It can connect up to 125 PROFIBUS DP slave nodes,multiple baud rate optional from 9.6k to 12M.

Realizes cyclic input/output data exchange and acyclic parameter read/write of slave equipment.

Data mapped to ControlLogix controller memory via backplane,supports Class1/Class2 DPV1 service.

Installation

Insert module into ControlLogix chassis backplane,connect PROFIBUS DP cable to D-Sub port.

Configure network topology,baud rate and slave list via ProSoft Configuration Builder.

Import AOI into Studio5000,download project through RSLinx,check LED indicators after power-up.

Interface

19-pin D-Sub PROFIBUS DP port,1RJ45 CFG RS232 configuration port,1756 backplane connector,module status,network and communication LED indicators.

Feature

Single slot 1756 chassis design,1500V isolation between backplane and PROFIBUS port.

CIPconnect remote diagnostic support,supports standard GSD file import.

Web diagnostic interface,stable operation in industrial cabinet environment.

Diagnostic

Check module run and fault LED;communication failure:verify PROFIBUS cable,terminal resistor and baud rate;data abnormal:check GSD file and slave address configuration.

Product Brief

MVI56-PDPMV1 is ProSoft MVI56 series PROFIBUS DPV1 master communication module for ControlLogix rack.

It converts ControlLogix controller into PROFIBUS DP master to communicate with PROFIBUS DP slave field devices,for multi-brand industrial automation system maintenance and transformation.
