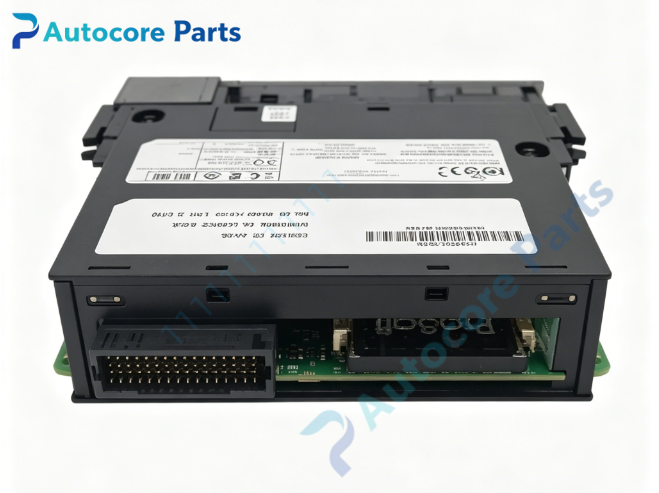

ProSoft MVI56E-61850S CLX 61850S Module

Technical Specifications

Model:MVI56E-61850S

Brand:ProSoft

Product type:ControlLogix In-Chassis IEC61850 Server Communication Module

Power supply:Supplied via 1756 backplane,800mA @5.1VDC,3mA @24VDC

Communication:IEC 61850,MMS,GOOSE,10/100Mbps Ethernet

Weight:0.29kg

Operating temperature:0℃ ~ +60℃

Dimension:Standard 1756 single slot module,120mm87mm32mm

Certification:CE,UL

System compatibility

MVI56E-61850S belongs to ProSoft MVI56E enhanced series module.It plugs directly into Rockwell ControlLogix 1756 rack,enables ControlLogix controller to act as IEC61850 server IED,widely used in power substation automation upgrade and spare replacement.

Function

It works as IEC61850 server,supports MMS report control block,GOOSE publish/subscribe,accepts read/write control commands from remote IEC61850 client master.Supports up to 8 concurrent client connections.Data is mapped to ControlLogix controller memory via backplane.

Installation

Insert module into ControlLogix chassis backplane,connect dual Ethernet cables,set IP address and configure IEC61850 data model via ProSoft Configuration Builder,import AOI into Studio5000,download project through RSLinx,check LED indicators after power-up.

Interface

2*10/100Mbps Ethernet RJ45 ports,1756 backplane connector,alpha-numeric display,module status,network and communication LED indicators.

Feature

Single slot 1756 chassis design,dual Ethernet port,supports IEC61850 MMS and GOOSE messaging,IP access filter,web diagnostic interface,CIPconnect support,stable operation in power cabinet environment.

Diagnostic

Check module run and fault LED;communication failure:verify Ethernet cable,IP address and network route;data abnormal:check IEC61850 data model and point mapping table.

Product Brief

MVI56E-61850S is ProSoft MVI56E series IEC61850 server communication module for ControlLogix rack.It converts ControlLogix controller into IEC61850 IED server for substation automation,for power industrial automation system maintenance and transformation.
