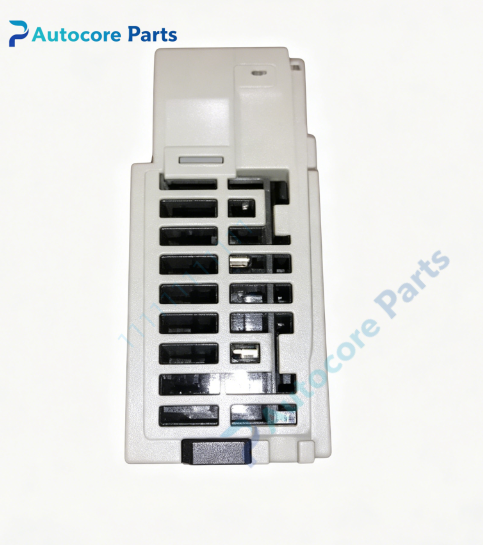

ProSoft MVI69-ADM CLX ADM Module

Technical Specifications

Model:MVI69-ADM

Brand:ProSoft

Product type:CompactLogix In-Chassis C Language Programmable Application Development Module

Power supply:Supplied via 1769 backplane,800mA @5VDC

Communication:Dual serial ports,RS232/RS422/RS485 jumper selectable

Weight:0.29kg

Operating temperature:0℃ ~ +60℃

Dimension:Standard 1769 single slot module,120mm87mm32mm

Certification:CE,UL

System compatibility

MVI69-ADM belongs to ProSoft MVI69 series module.

It plugs directly into Rockwell CompactLogix and MicroLogix 1500 LRP rack,compatible with 1769 backplane.

It allows users to develop custom communication protocols or special logic with C language.

Suitable for non-standard protocol conversion and customized automation system renovation and spare replacement.

Function

It is a C programmable embedded development module,equipped with dedicated backplane API and serial port API library.

Dual independent serial ports can be set to RS232,RS422 or RS485 separately.

Users compile custom program to realize private protocol,data processing and special device communication.

Data mapped to CompactLogix controller memory via backplane,flexible register data exchange.

Installation

Insert module into 1769 chassis backplane,wire serial cable.

Set serial interface mode via jumpers,compile and download custom C application program.

Import AOI into Studio5000,download project through RSLinx,check LED indicators after power-up.

Interface

2RJ45 serial application ports,1RJ45 CFG RS232 configuration port,1769 backplane connector,module status,application and serial activity LED indicators.

Feature

Single slot 1769 chassis design,500V optical isolation between backplane and serial ports.

Complete C development toolchain and sample source code provided.

Supports custom data filtering,byte conversion and protocol parsing,stable operation in industrial cabinet environment.

Diagnostic

Check module run and fault LED;communication failure:verify serial wiring,baud rate and parity;data abnormal:check custom application program and backplane data mapping.

Product Brief

MVI69-ADM is ProSoft MVI69 series C programmable application development module for CompactLogix rack.

It supports user custom C program development to implement non-standard serial protocols and special data processing,for industrial automation system maintenance and transformation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and transformation.
