ProSoft MVI69-MCM CLX MCM Module

Technical Specifications

Model:MVI69-MCM

Brand:ProSoft

Product type:CompactLogix In-Chassis Modbus Master/Slave Serial Communication Module

Power supply:Supplied via 1769 backplane,800mA @5.1VDC

Communication:Modbus RTU/ASCII,dual serial ports,RS232/RS422/RS485 jumper selectable

Weight:0.29kg

Operating temperature:0℃ ~ +60℃

Dimension:Standard 1769 single slot module,120mm87mm32mm

Certification:CE,UL

System compatibility

MVI69-MCM belongs to ProSoft MVI69 series module.

It plugs directly into Rockwell CompactLogix and MicroLogix 1500 LRP rack,compatible with 1769 backplane.

It enables CompactLogix to communicate with Modbus serial field instruments,drives,flow meters and RTU devices.

Suitable for factory,water treatment and energy control system renovation and spare replacement.

Function

Dual independent serial ports,each port can be set as Modbus master or slave separately.

Supports Modbus RTU with CRC16 check and Modbus ASCII with LRC check.

Baud rate ranges from 110 to 115200,supports 7/8 data bits,1/2 stop bits,odd/even/no parity.

Supports Enron/Daniel floating point data and full set of standard Modbus function codes.

Built-in large register database,data mapped to CompactLogix controller memory via backplane.

Supports AOI add-on instruction and UDT data type for rapid project integration.

Installation

Insert module into 1769 chassis backplane,wire serial cable for P1/P2 port.

Set RS232/RS422/RS485 interface via jumpers,configure Modbus command list in ProSoft Configuration Builder.

Import AOI into Studio5000,download project through RSLinx,check LED indicators after power-up.

Interface

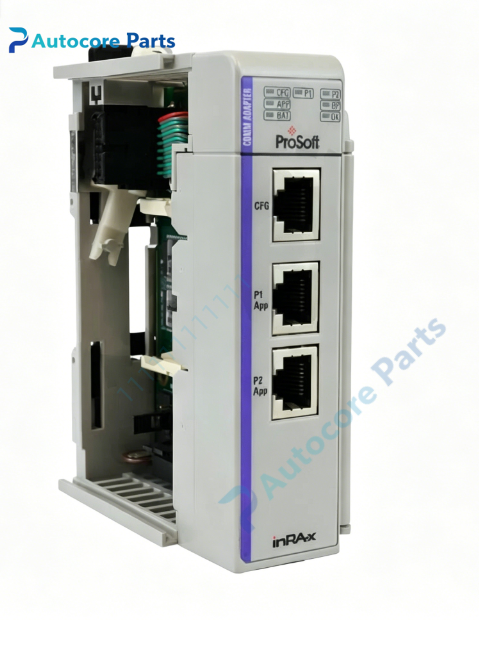

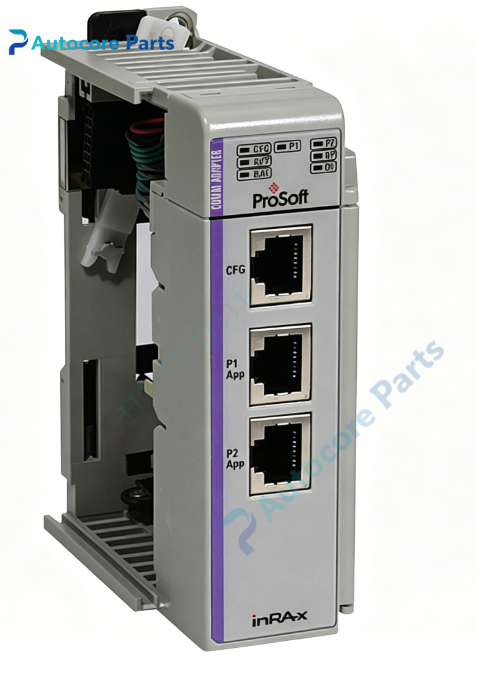

2RJ45 serial application ports,1RJ45 CFG RS232 configuration port,1769 backplane connector,module status,serial activity LED indicators.

Feature

Single slot 1769 chassis design,500V optical isolation between backplane and serial ports.

Web diagnostic interface,monitor port status and transmit/receive data statistics.

Configurable RTS delay and communication timeout parameters.

Co-processor architecture reduces PLC scan load,stable operation in industrial cabinet environment.

Diagnostic

Check module run and fault LED;communication failure:verify serial wiring,terminal resistance and baud rate;data abnormal:check Modbus station address and register mapping table.

Product Brief

MVI69-MCM is ProSoft MVI69 series Modbus master/slave serial communication module for CompactLogix rack.

It acts as Modbus serial gateway to realize bidirectional data exchange between CompactLogix and Modbus RTU/ASCII field devices,for industrial automation system maintenance and transformation.
