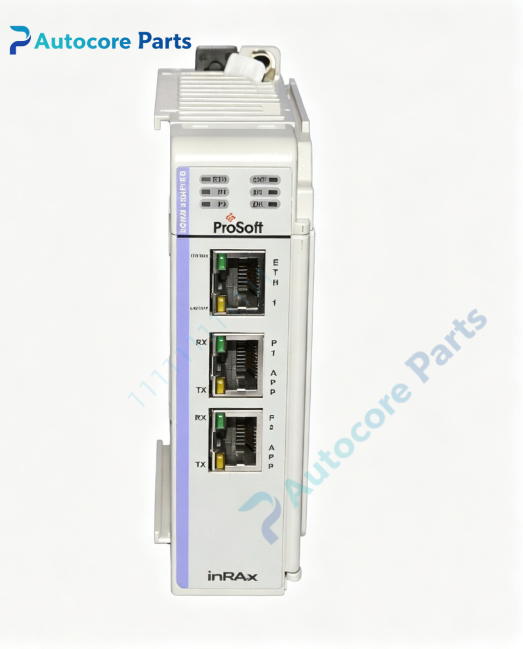

ProSoft MVI69E-MBS CLX MBS Module

Technical Specifications

Model:MVI69E-MBS

Brand:ProSoft

Product type:CompactLogix In-Chassis Modbus RTU/ASCII Enhanced Serial Communication Module

Power supply:Supplied via 1769 backplane,500mA @5VDC

Communication:Modbus RTU/ASCII,dual serial ports,RS232/RS422/RS485 software selectable;110/100Mbps debug ethernet port

Weight:0.29kg

Operating temperature:0℃ ~ +60℃

Dimension:Standard 1769 single slot module,120mm87mm*32mm

Certification:CE,UL

System compatibility

MVI69E-MBS belongs to ProSoft MVI69E series module.

It plugs directly into Rockwell CompactLogix 1769 rack,compatible with 1769 backplane.

It enables CompactLogix to communicate with Modbus serial field instruments,drives,flow meters and RTU devices.

Suitable for factory,water treatment and energy control system renovation and spare replacement.

Function

Dual independent serial ports,each port can be set to Modbus master or slave separately.

Supports Modbus RTU with CRC16 check and Modbus ASCII with LRC check.

Baud rate ranges from 110 to 115200,supports 7/8 data bits,1/2 stop bits,odd/even/no parity.

Supports Enron/Daniel floating point data,rich register data exchange.

Data mapped to CompactLogix controller memory via backplane,supports AOI add-on instruction for quick integration.

Installation

Insert module into 1769 chassis backplane,wire serial cable for P1/P2 port.

Select RS232/RS422/RS485 mode,configure Modbus command list in ProSoft Configuration Builder.

Import AOI into Studio5000,download project through RSLinx,check LED indicators after power-up.

Interface

2RJ45 serial application ports,110/100Mbps Ethernet debug port,1769 backplane connector,module status,serial and network activity LED indicators.

Feature

Single slot 1769 chassis design,500V optical isolation between backplane and serial ports.

Comes with add-on profile and add-on instruction to reduce commissioning time.

Web diagnostic interface,configurable RTS delay and communication timeout,stable operation in industrial cabinet environment.

Diagnostic

Check module run and fault LED;communication failure:verify serial wiring,terminal resistance and baud rate;data abnormal:check Modbus station address and register mapping table.

Product Brief

MVI69E-MBS is ProSoft MVI69E series enhanced Modbus serial communication module for CompactLogix rack.

It acts as Modbus serial gateway to realize bidirectional data exchange between CompactLogix and Modbus RTU/ASCII field devices,for industrial automation system maintenance and transformation.
