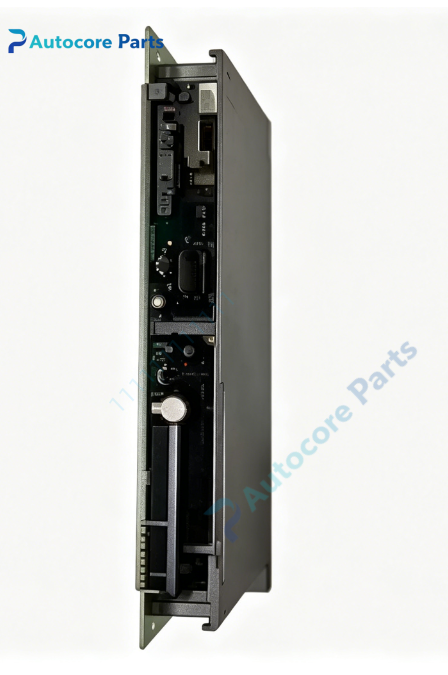

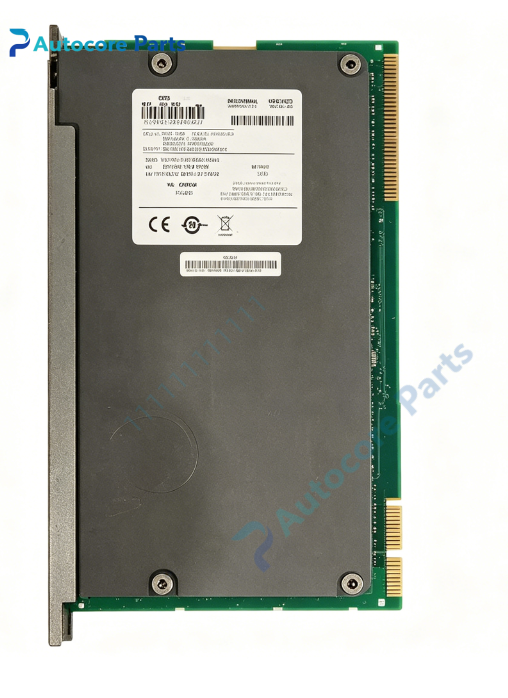

ProSoft MVI71-DFNT PLC5 DFNT Module

Technical Specifications

Model:MVI71-DFNT

Brand:ProSoft

Product type:PLC-5 In-Chassis EtherNet/IP Client/Server Communication Module

Power supply:Supplied via 1771 backplane,800mA @5VDC

Communication:EtherNet/IP,110/100Mbps Ethernet RJ45 port

Weight:0.29kg

Operating temperature:0℃ ~ +60℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Dimension:Single slot 1771 module,120mm87mm*32mm

Certification:CE,UL,Class I Division2,ATEX Zone2

System compatibility

MVI71-DFNT belongs to ProSoft MVI71 series module.

It plugs directly into Rockwell PLC-5 1771 rack,compatible with 1771 backplane,uses BTR/BTW block for backplane data transmission.

It enables PLC-5 processor to communicate with EtherNet/IP compatible devices via explicit messaging.

Suitable for old PLC-5 production line renovation and spare replacement.

Function

Works as EtherNet/IP client and server simultaneously.

Server mode supports up to 5 concurrent EtherNet/IP client connections.

Client mode supports explicit message read/write to remote EtherNet/IP devices.

Supports channel0 pass-through service for remote PLC programming and fault diagnosis over Ethernet.

Internal register database,data exchanged with PLC-5 via BTR/BTW instructions.

Supports custom command list configuration for periodic data collection.

Installation

Insert module into 1771 chassis backplane,connect ethernet cable to RJ45 port.

Set IP address and EtherNet/IP command list in ProSoft Configuration Builder.

Configure BTR/BTW ladder logic in RSLogix5,download project through RSLinx,check LED indicators after power-up.

Interface

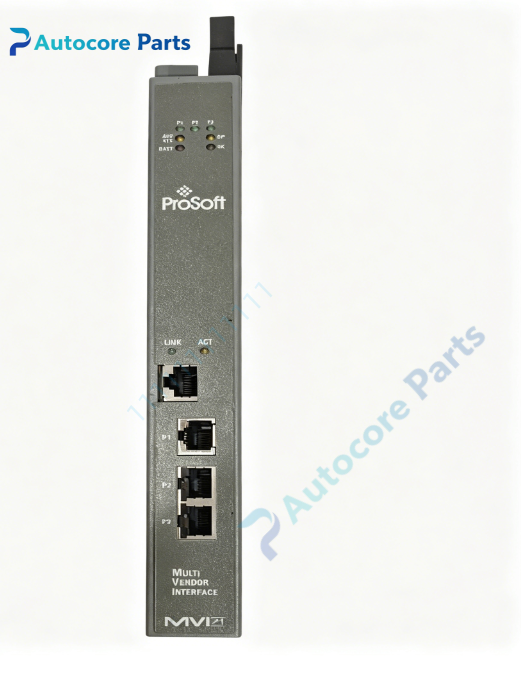

110/100Mbps Ethernet RJ45 port,1DB9M RS232 CFG configuration port,1771 backplane connector,module status,backplane activity,network activity LED indicators.

Feature

Single slot 1771 chassis design,1500V isolation between backplane and ethernet port.

Auto crossover ethernet detection,web diagnostic page for network monitoring.

Co-processor architecture reduces PLC scan load.

Supports remote programming and troubleshooting for PLC-5,stable operation in industrial cabinet environment.

Diagnostic

Check module run and fault LED;communication failure:verify ethernet cable,IP address and network route;data abnormal:check EtherNet/IP device address and BTR/BTW data mapping.

Product Brief

MVI71-DFNT is ProSoft MVI71 series EtherNet/IP communication module for Rockwell PLC-5 1771 rack.

It acts as EtherNet/IP gateway to realize bidirectional explicit messaging data exchange between PLC-5 and EtherNet/IP field devices,for industrial automation system maintenance and transformation.
