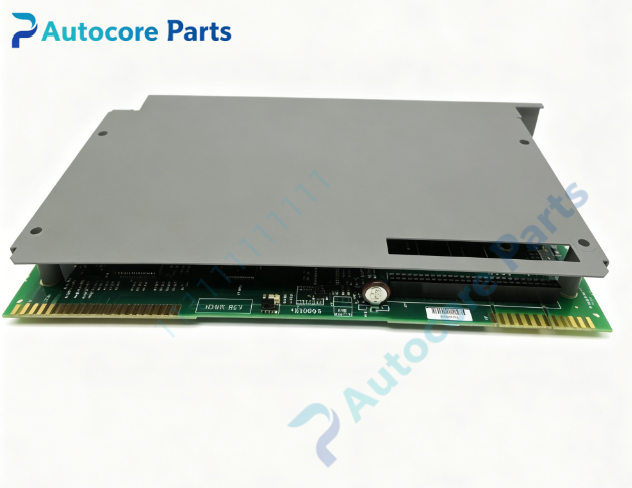

ProSoft MVI71-MCM PLC5 MCM Module

Technical Specifications

Model:MVI71-MCM

Brand:ProSoft

Product type:PLC-5 In-Chassis Modbus Master/Slave Serial Communication Module

Power supply:Supplied via 1771 backplane,800mA @5VDC

Communication:Modbus RTU/ASCII,dual serial ports,RS232/RS422/RS485 jumper selectable

Register database:Up to 5000 registers

Weight:0.29kg

Operating temperature:0℃ ~ +60℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Dimension:Single slot 1771 module,120mm87mm32mm

Certification:CE,UL,Class I Division2,ATEX Zone2

System compatibility

MVI71-MCM belongs to ProSoft MVI71 series module.

It plugs directly into Rockwell PLC-5 1771 rack,compatible with 1771 backplane,uses BTR/BTW block for backplane data transmission.

It enables PLC-5 to communicate with Modbus serial field instruments,drives,flow meters and RTU devices.

Suitable for factory,water treatment and energy control legacy PLC-5 system renovation and spare replacement.

Function

Dual independent serial ports,each port can be set as Modbus master or slave separately.

Each port supports up to 100 polling commands.

Supports Modbus RTU with CRC16 check and Modbus ASCII with LRC check.

Baud rate ranges from 110 to 115200,supports 7/8 data bits,1/2 stop bits,odd/even/no parity.

Supports Enron/Daniel floating point data and full set of standard Modbus function codes.

Built-in 5000 words register database,data exchanged with PLC-5 via BTR/BTW ladder instructions.

Built-in data analyzer for communication troubleshooting,support field firmware upgrade.

Installation

Insert module into 1771 chassis backplane,wire serial cable for P1/P2 port.

Set RS232/RS422/RS485 interface via jumpers,configure Modbus command list in ProSoft Configuration Builder.

Program BTR/BTW ladder logic in RSLogix5,download project through RSLinx,check LED indicators after power-up.

Interface

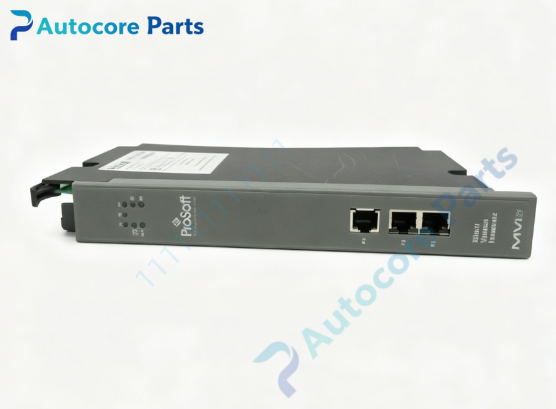

2RJ45 serial application ports,1DB9M RS232 CFG configuration port,1771 backplane connector,module status,backplane activity,serial activity LED indicators.

Feature

Single slot 1771 chassis design,500V optical isolation between backplane and serial ports.

Built-in communication data analyzer for on-site fault diagnosis.

Configurable RTS delay and communication timeout parameters.

Co-processor architecture reduces PLC scan load,stable operation in industrial cabinet environment.

Diagnostic

Check module run and fault LED;communication failure:verify serial wiring,terminal resistance and baud rate;data abnormal:check Modbus station address and register mapping table.

Product Brief

MVI71-MCM is ProSoft MVI71 series Modbus master/slave serial communication module for Rockwell PLC-5 1771 rack.

It acts as Modbus serial gateway to realize bidirectional data exchange between PLC-5 and Modbus RTU/ASCII field devices,for industrial automation system maintenance and transformation.
