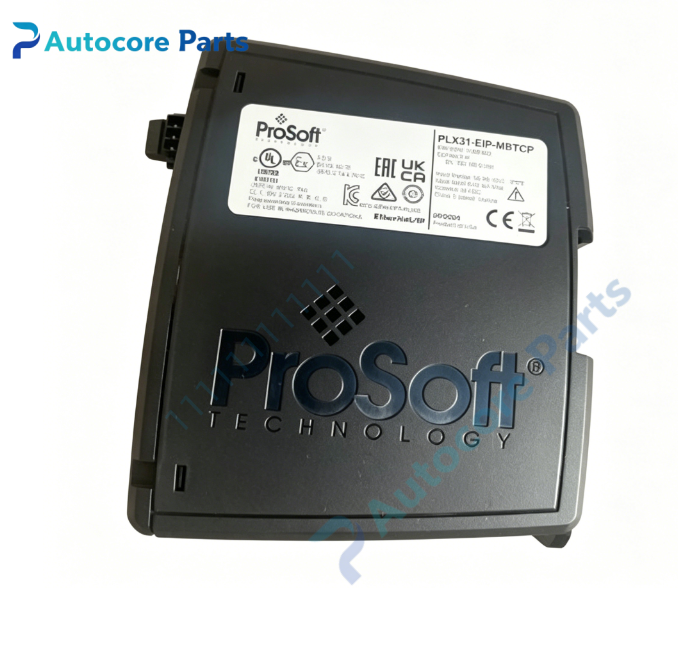

ProSoft PLX31-EIP-MBTCP EtherNet/IP to Modbus TCP Gateway

Technical Specifications

Model:PLX31-EIP-MBTCP

Brand:ProSoft

Product type:Standalone EtherNet/IP to Modbus TCP/IP Communication Gateway

Power supply:10~36VDC,nominal 24VDC

Current consumption:300mA@24VDC,max 610mA

Communication:EtherNet/IP adapter;Modbus TCP/IP,multi-client and multi-server

Weight:0.35kg

Operating temperature:-25℃ ~ +70℃

Storage temperature:-40℃ ~ +80℃

Relative humidity:5%~95%,non-condensing

Dimension:136.7mm50.5mm111.3mm

Certification:CE,UL,Class I Division2

System compatibility

PLX31-EIP-MBTCP belongs to ProSoft PLX31 series standalone protocol gateway.

It communicates with Rockwell ControlLogix,CompactLogix and other EtherNet/IP controllers via EtherNet/IP network.

It connects Modbus TCP instruments,flow meters,remote I/O and PAC devices on Modbus TCP network.

Suitable for factory,energy and water treatment cross Ethernet protocol system renovation and spare replacement.

Function

Works as EtherNet/IP adapter,Modbus TCP multi-client and multi-server.

Supports implicit I/O connection for real-time control and explicit messaging.

Embedded EDS add-on profile,simple integration with Rockwell controller in Studio5000.

Supports up to 10000 16-bit register data exchange.

Multiple I/O connections with independent RPI setting for data priority control.

SD card slot for optional configuration backup and quick device replacement.

Supports ProSoft Discovery Service for IP configuration without same subnet.

Bidirectional high-speed data conversion between EtherNet/IP and Modbus TCP network.

Installation

Mount gateway on DIN rail,connect 24VDC power supply.

Connect two RJ45 ethernet cables to EtherNet/IP network and Modbus TCP network separately.

Configure IP address and data mapping in ProSoft Configuration Builder.

Import EDS file into Studio5000,establish EtherNet/IP connection,check LED indicators after power-up.

Interface

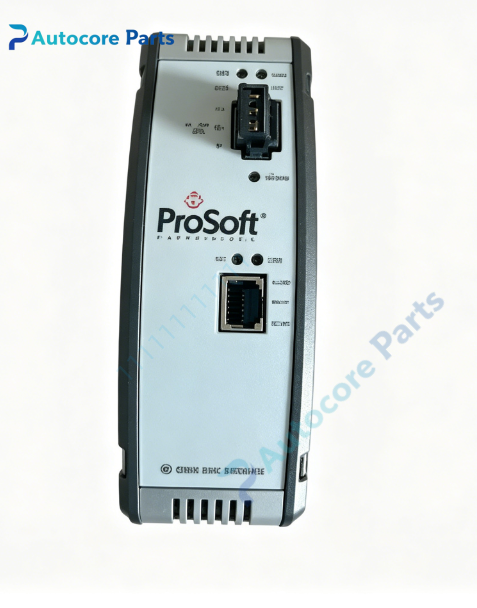

2*10/100Mbps Ethernet RJ45 ports,SD card slot,power terminal,LED indicators:PWR,FLT,CFG,NS,MS.

Feature

DIN rail mounted compact standalone gateway design.

Isolated ethernet ports to protect industrial network.

Supports conformal coating option for harsh environment.

Configuration backup via SD card for fast field replacement.

Shock and vibration resistant design,stable operation in industrial cabinet environment.

Diagnostic

Check module power and status LED;communication failure:verify ethernet wiring,IP address and network route;data abnormal:check Modbus TCP device IP and register mapping table.

Product Brief

PLX31-EIP-MBTCP is ProSoft PLX31 series dual ethernet protocol gateway.

It realizes bidirectional high-speed data exchange between EtherNet/IP controller and Modbus TCP network field devices,for industrial automation cross-network system maintenance and transformation.
